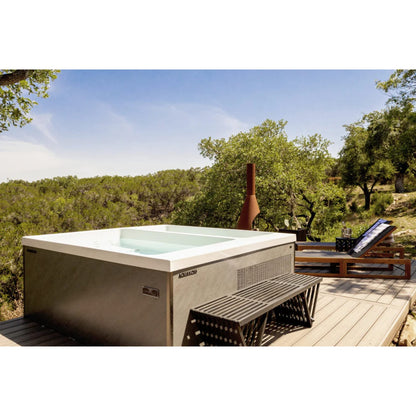

Aquavoss AV-2 Hot and Cold Plunge

All About The AV-2 Hot and Cold Plunge

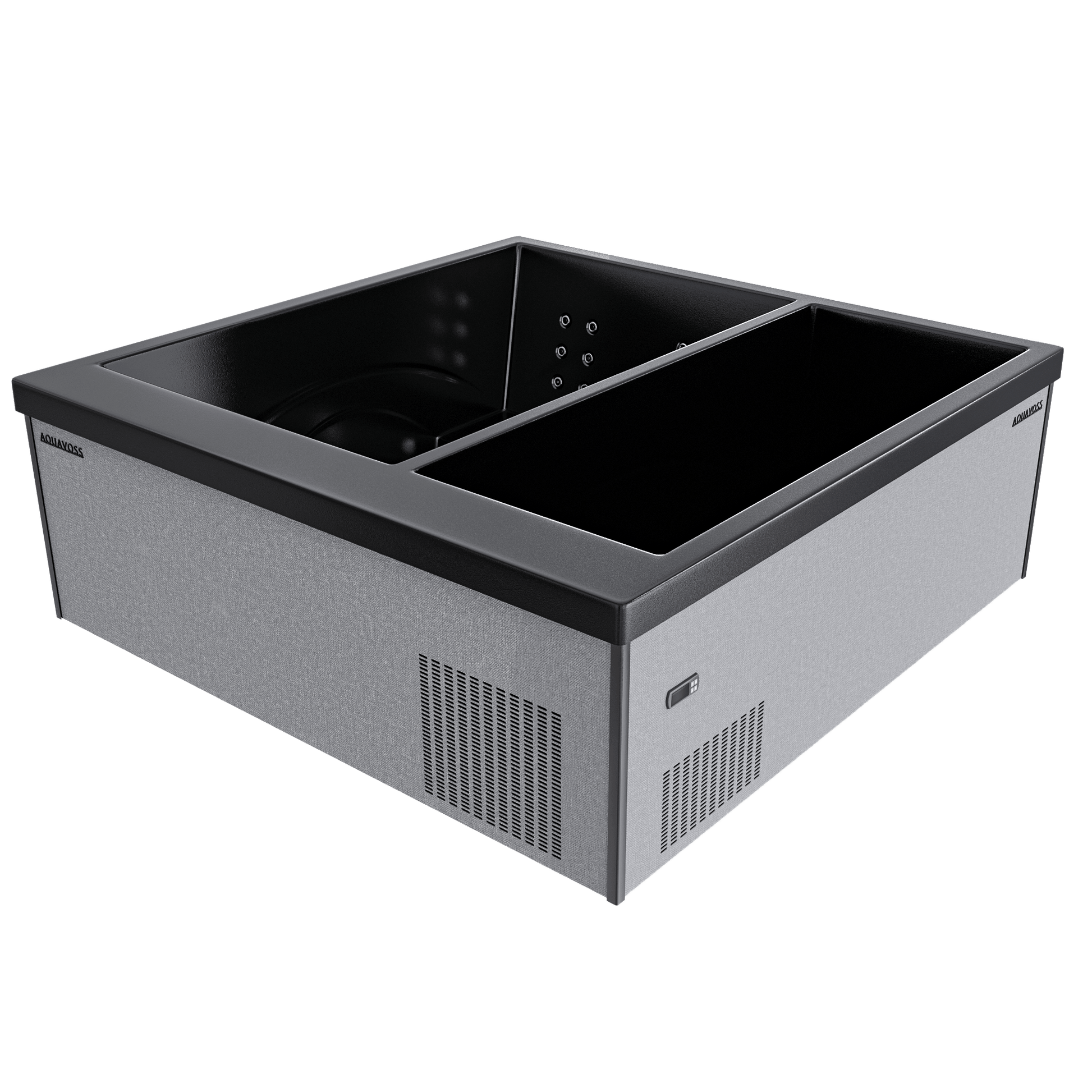

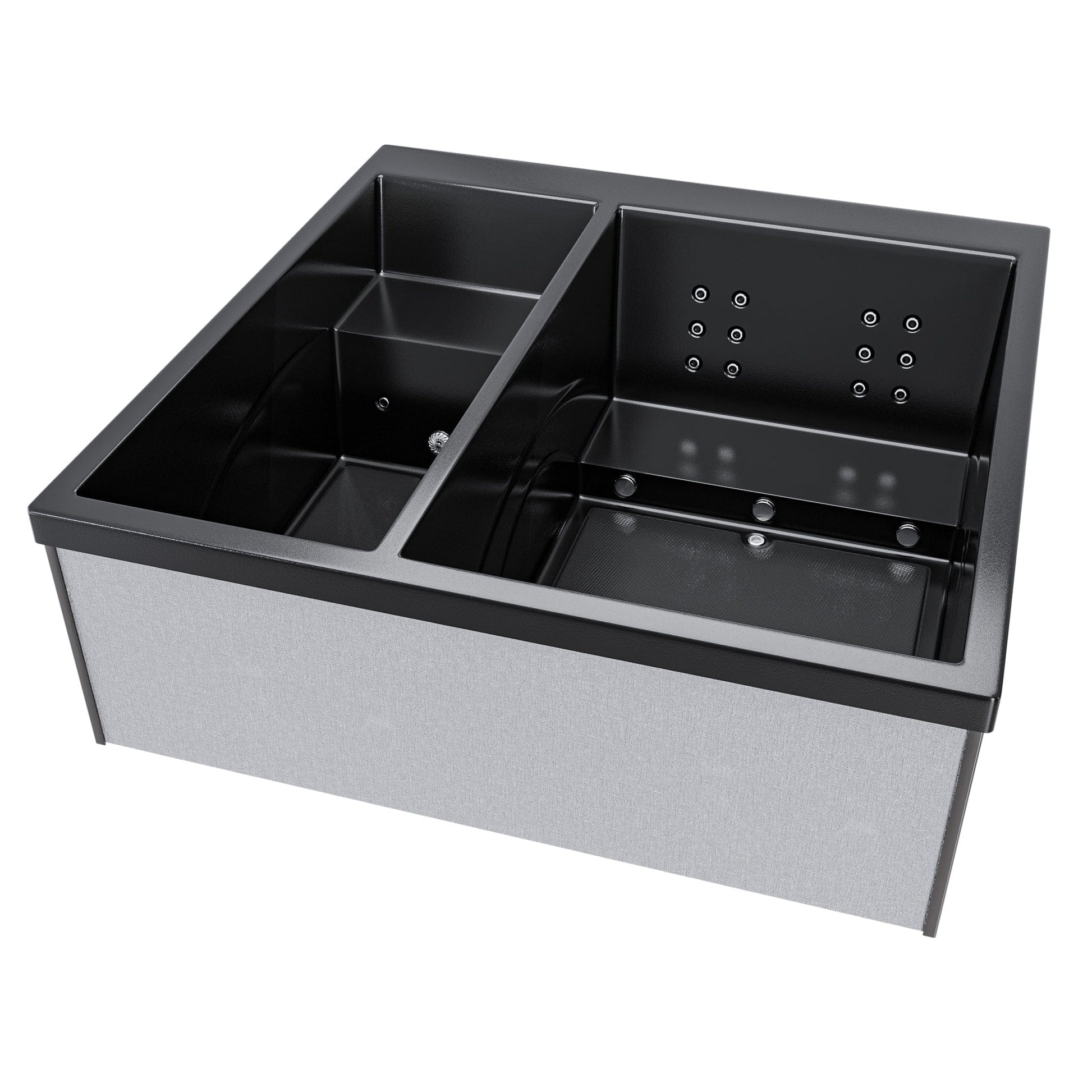

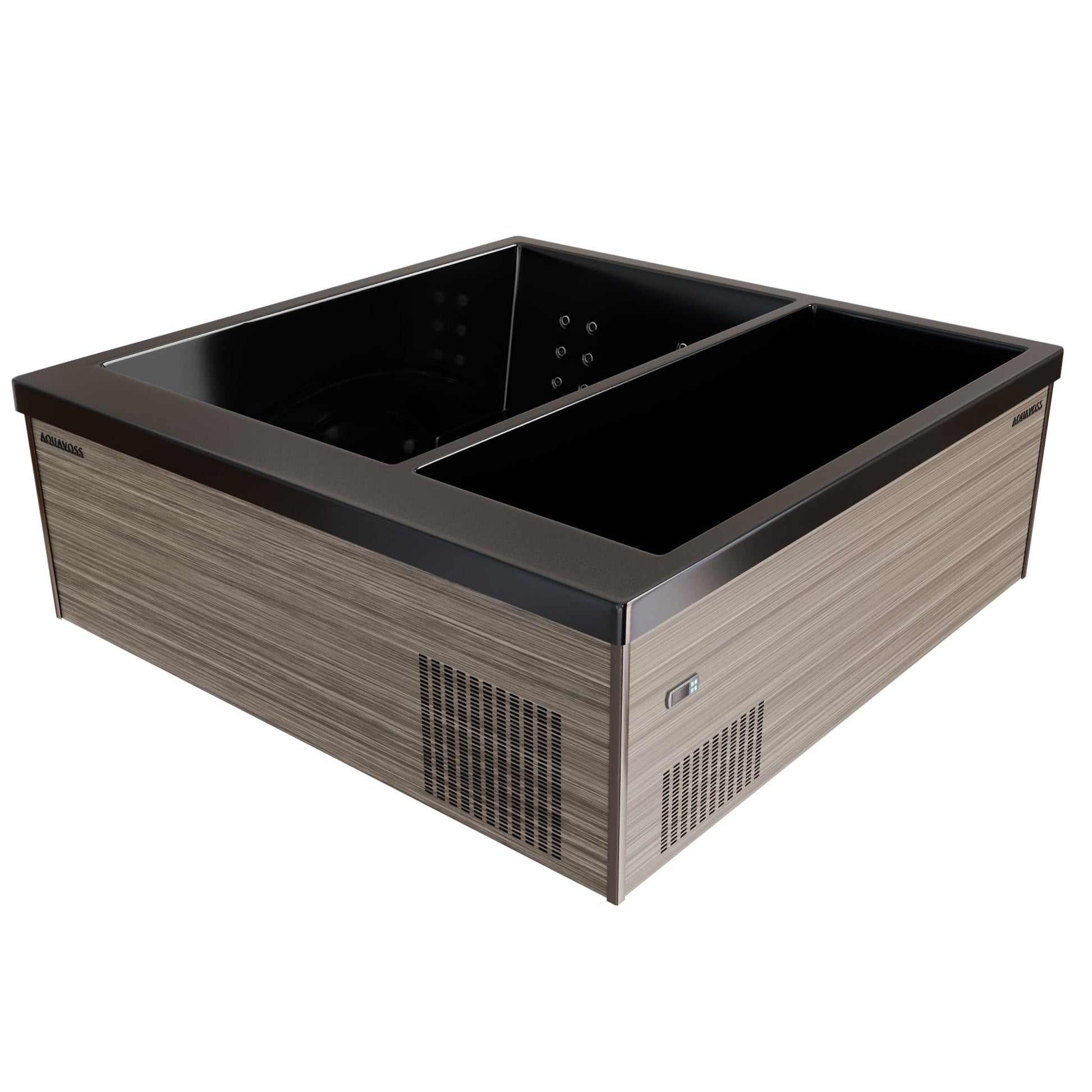

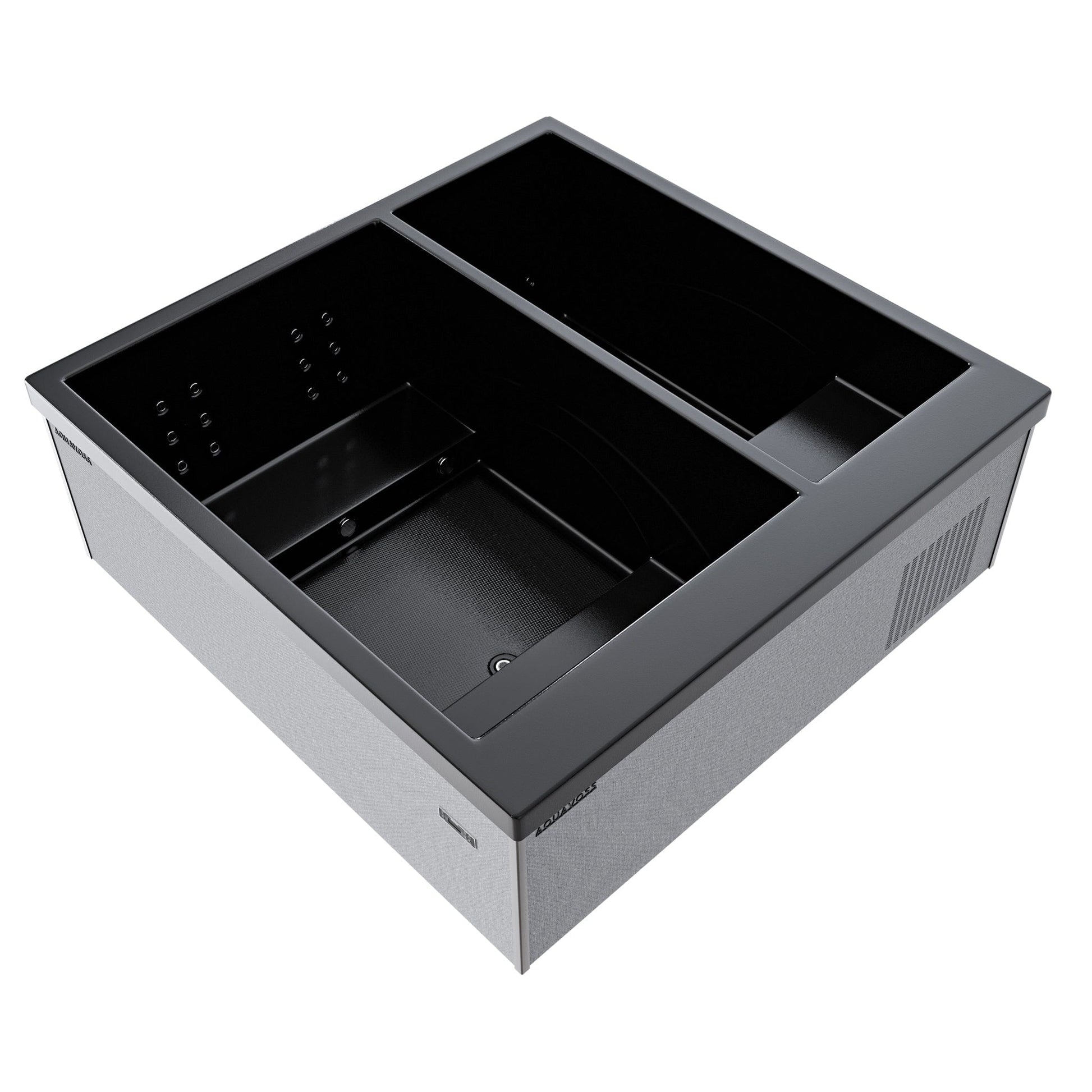

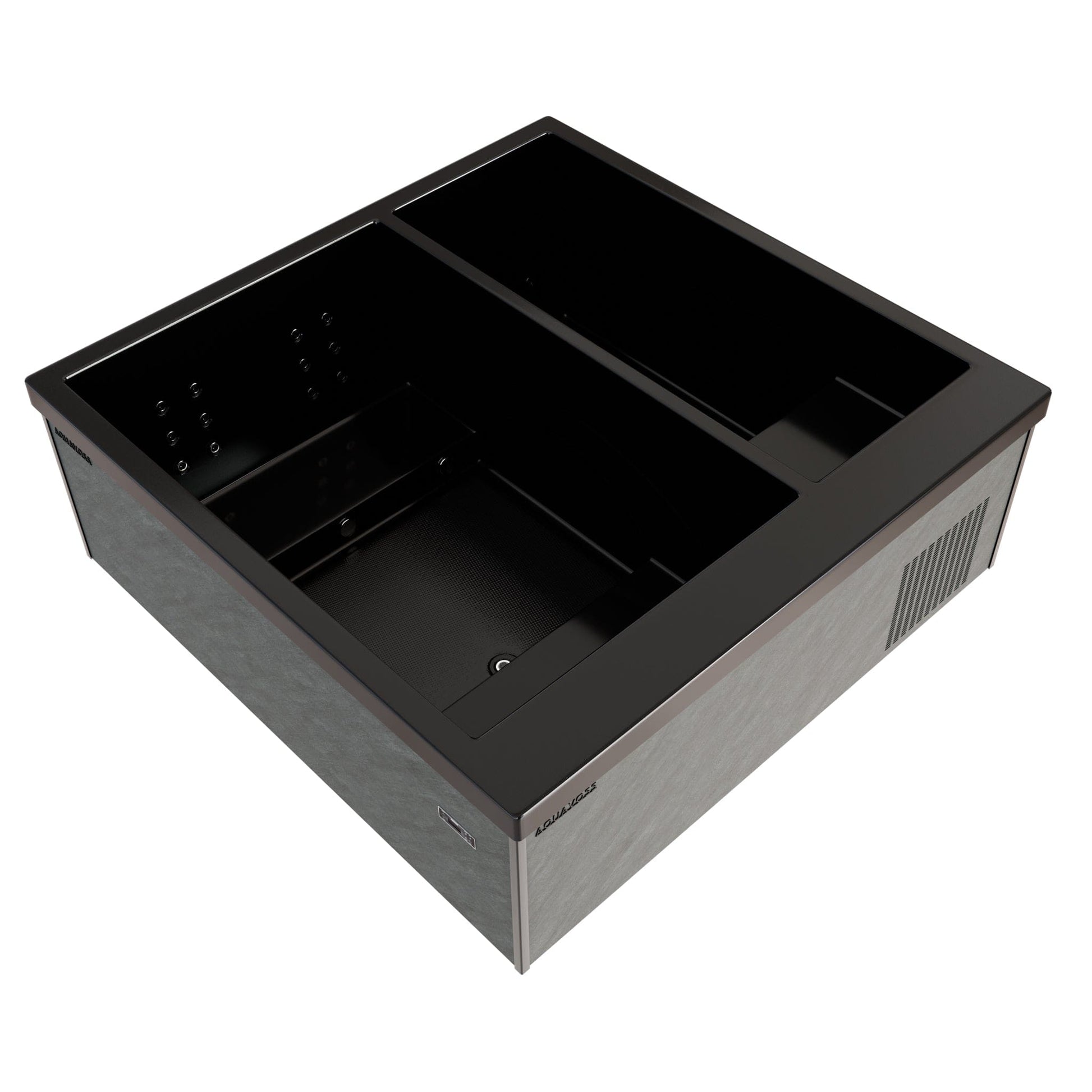

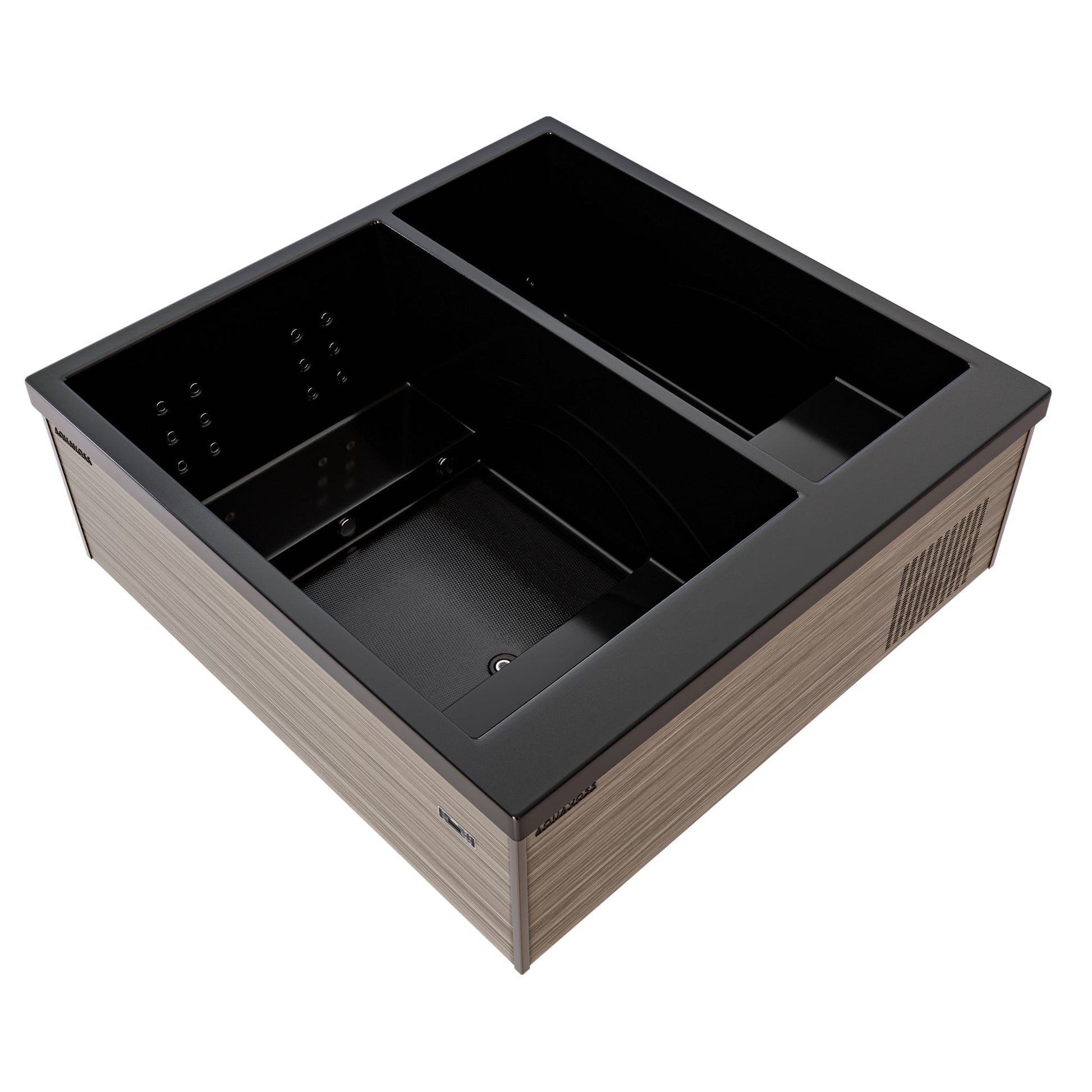

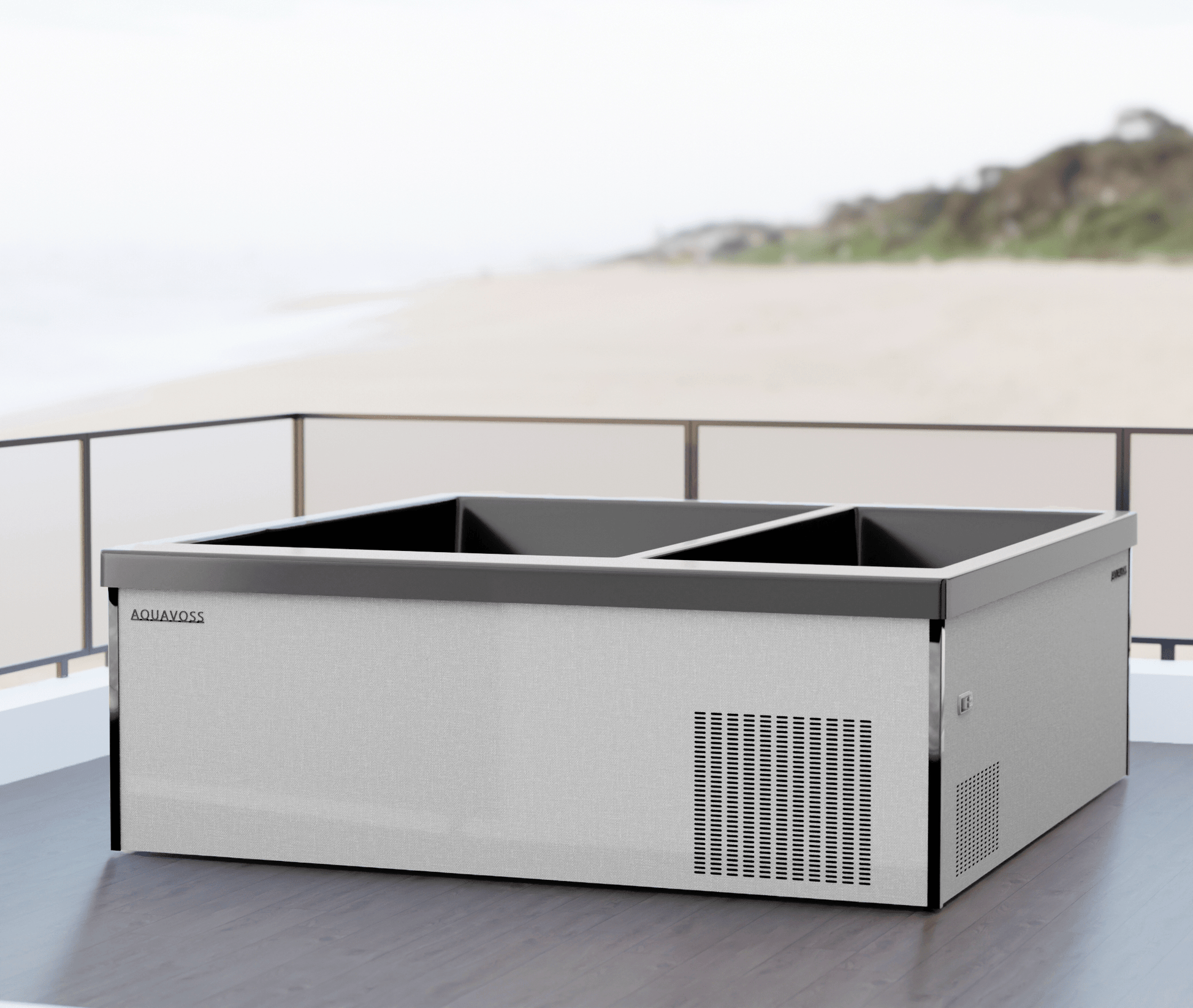

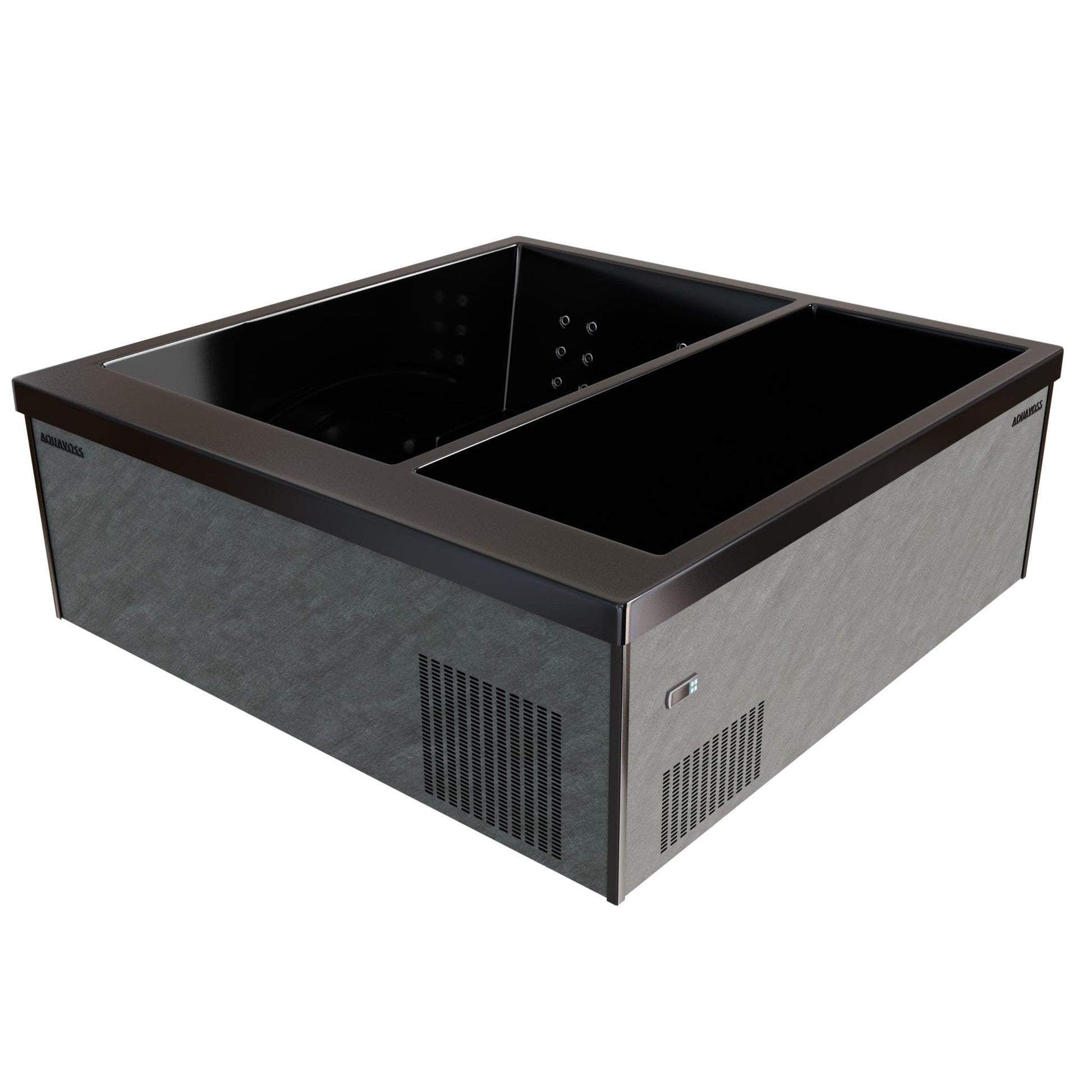

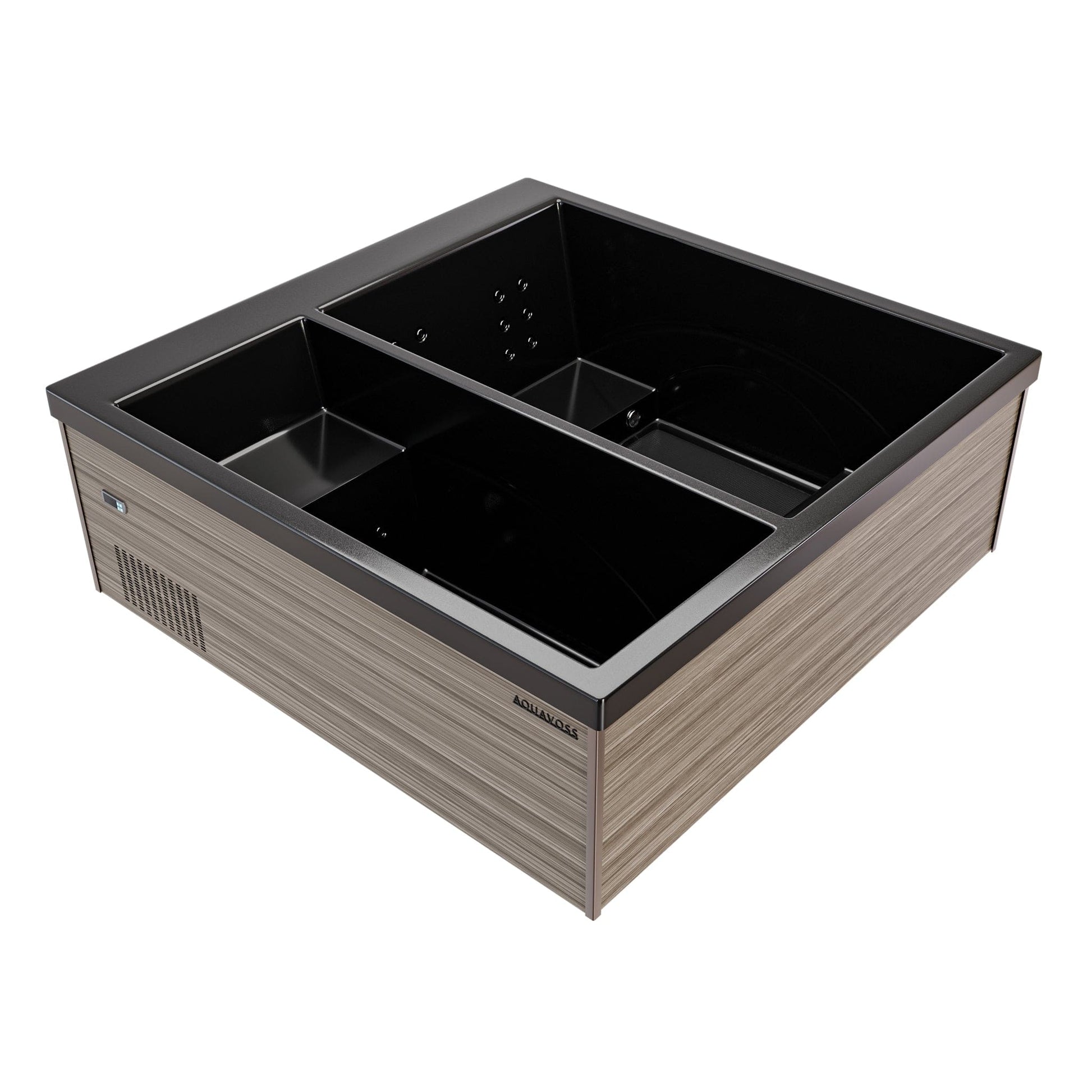

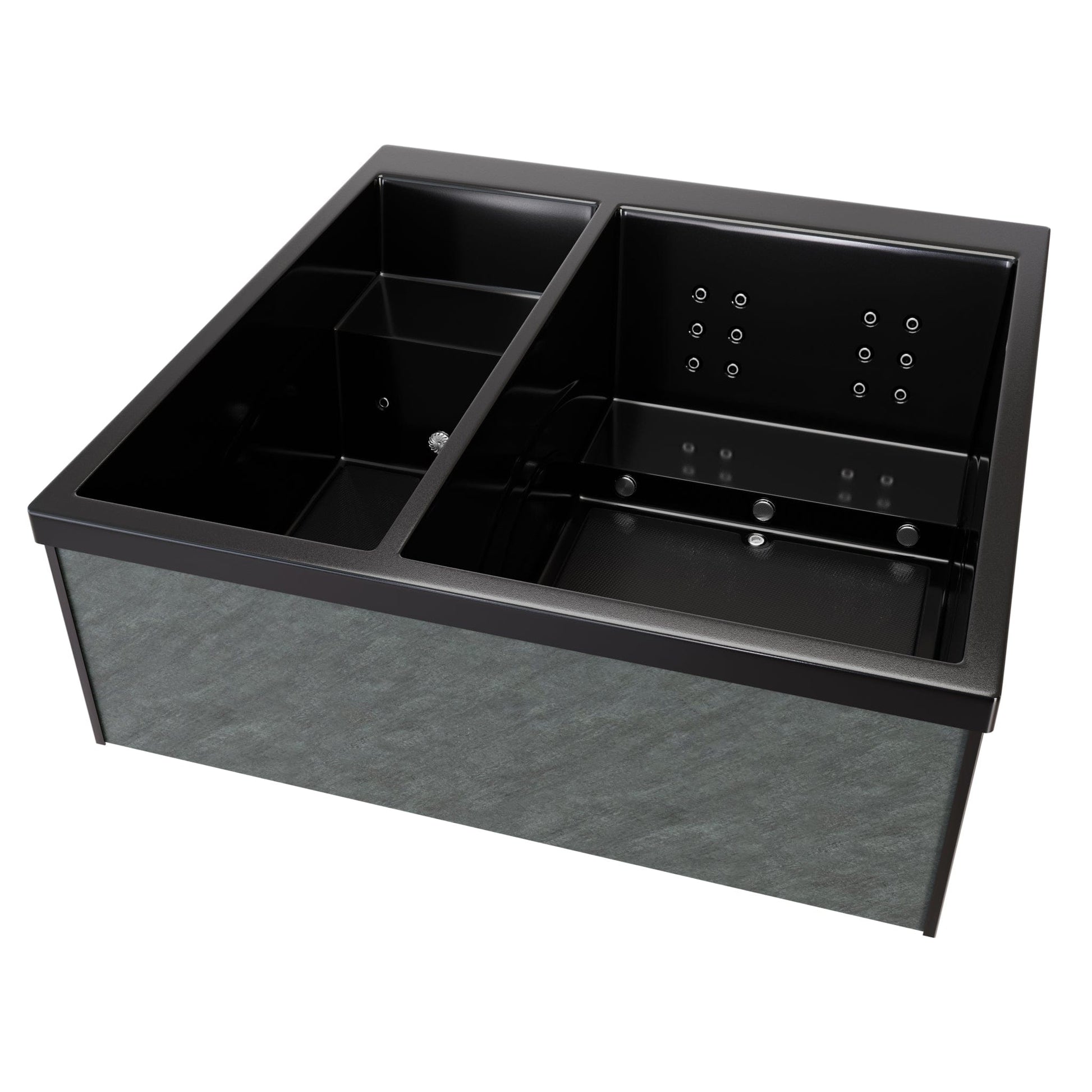

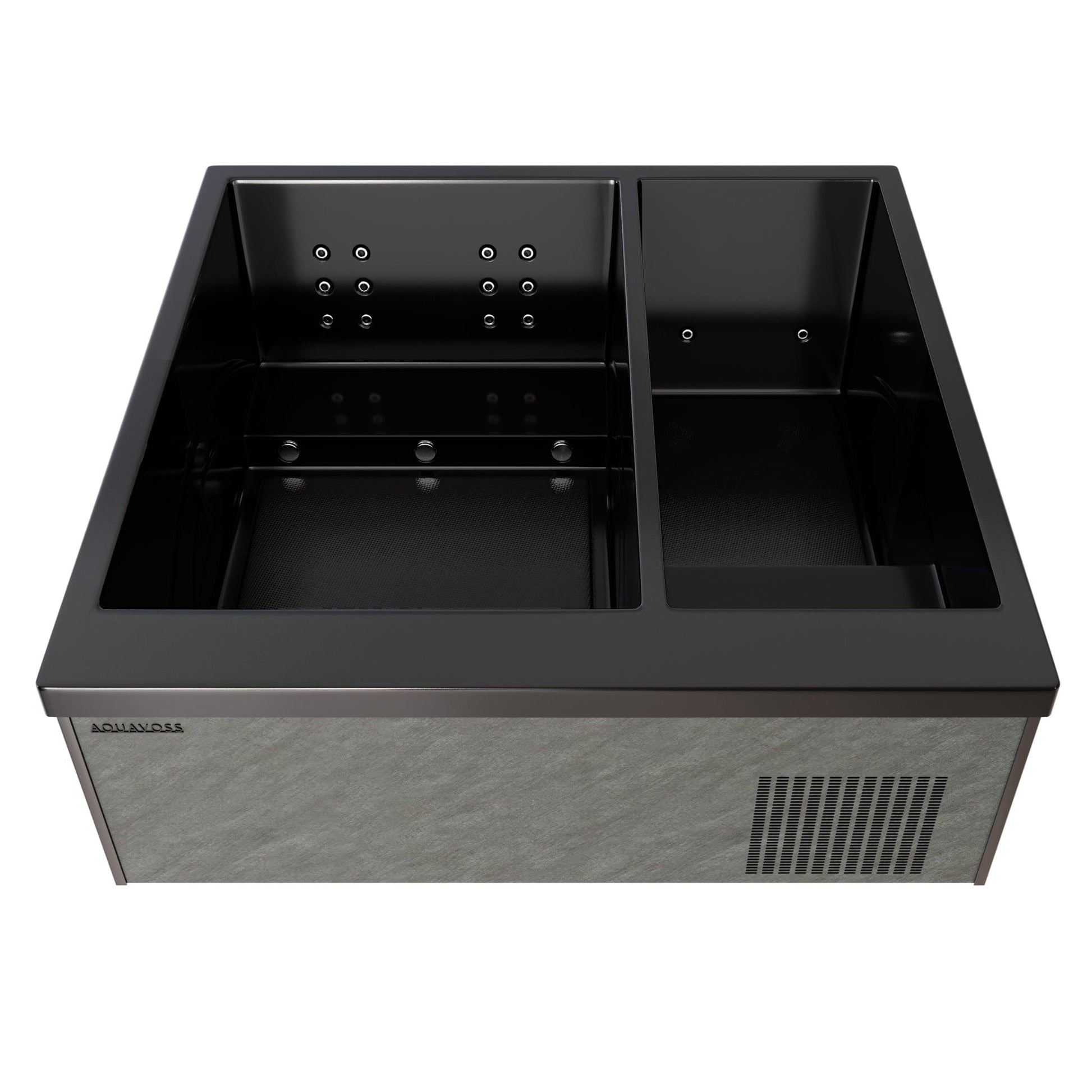

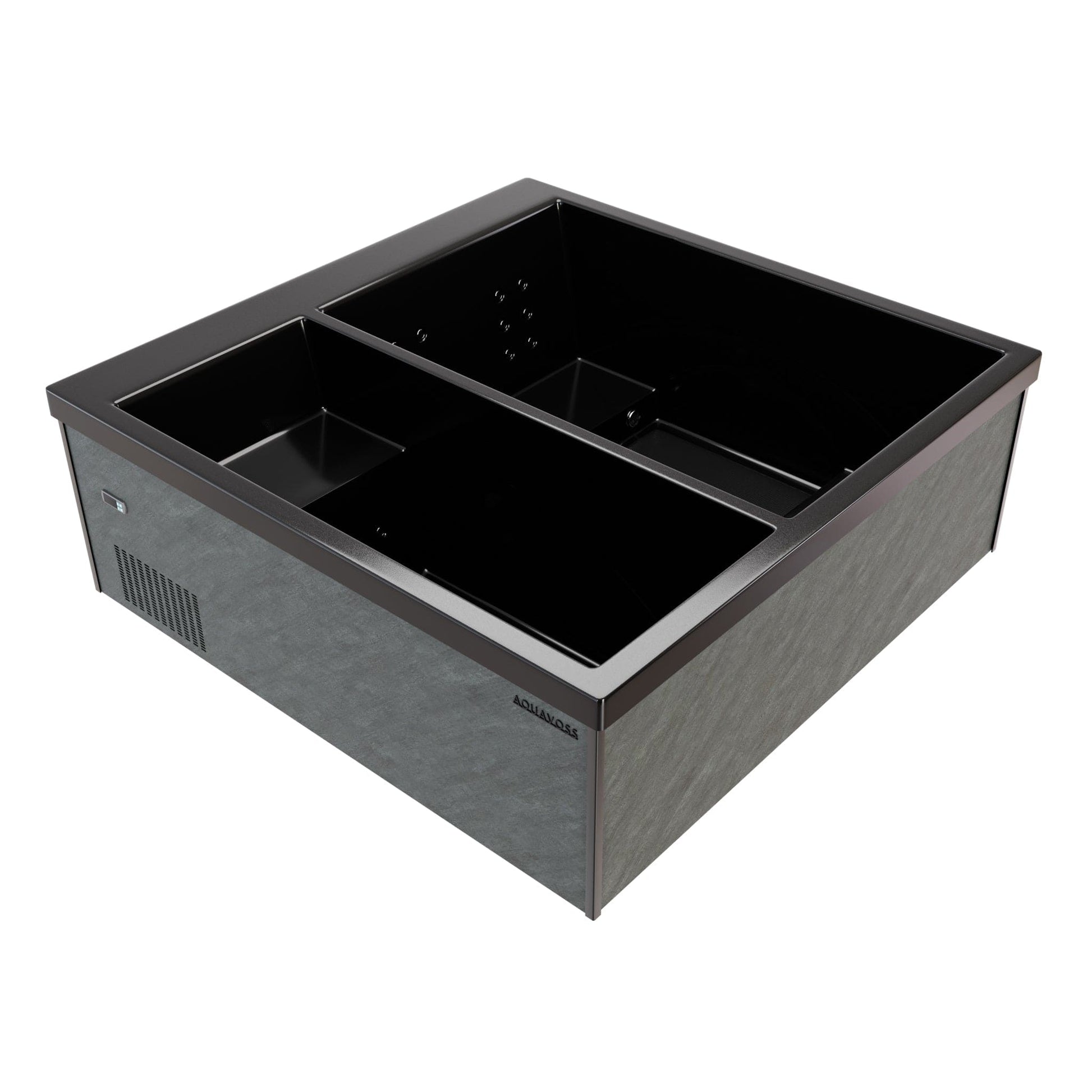

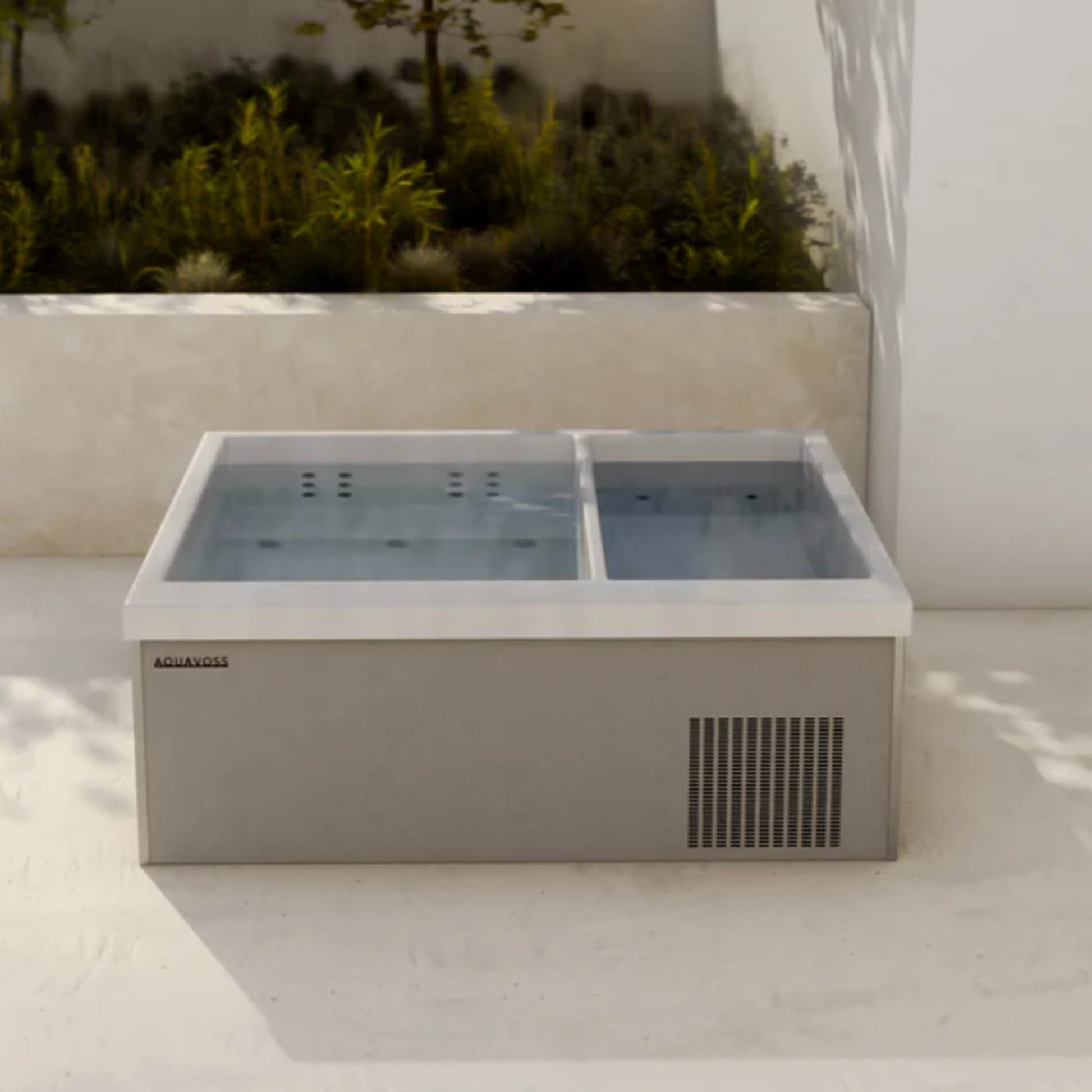

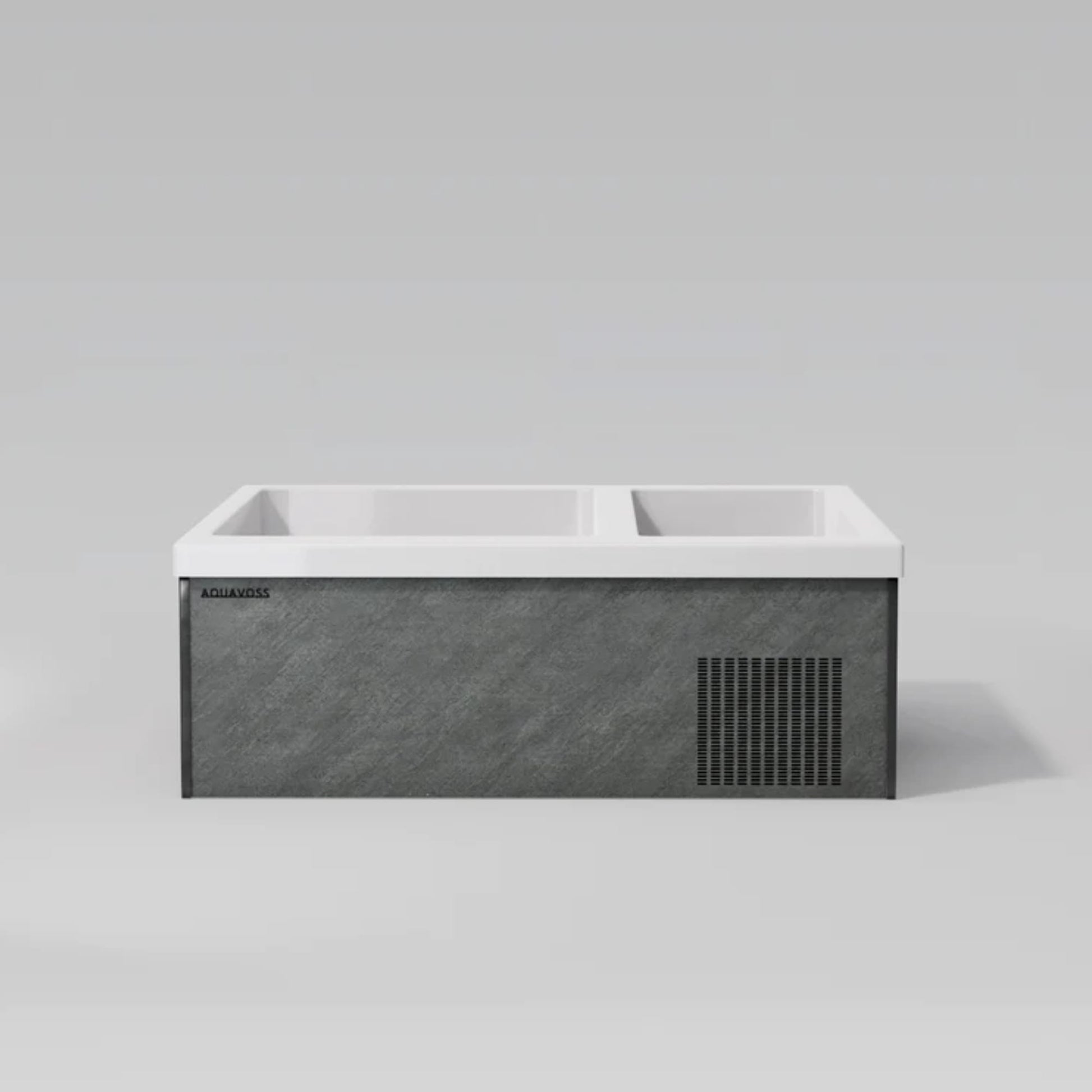

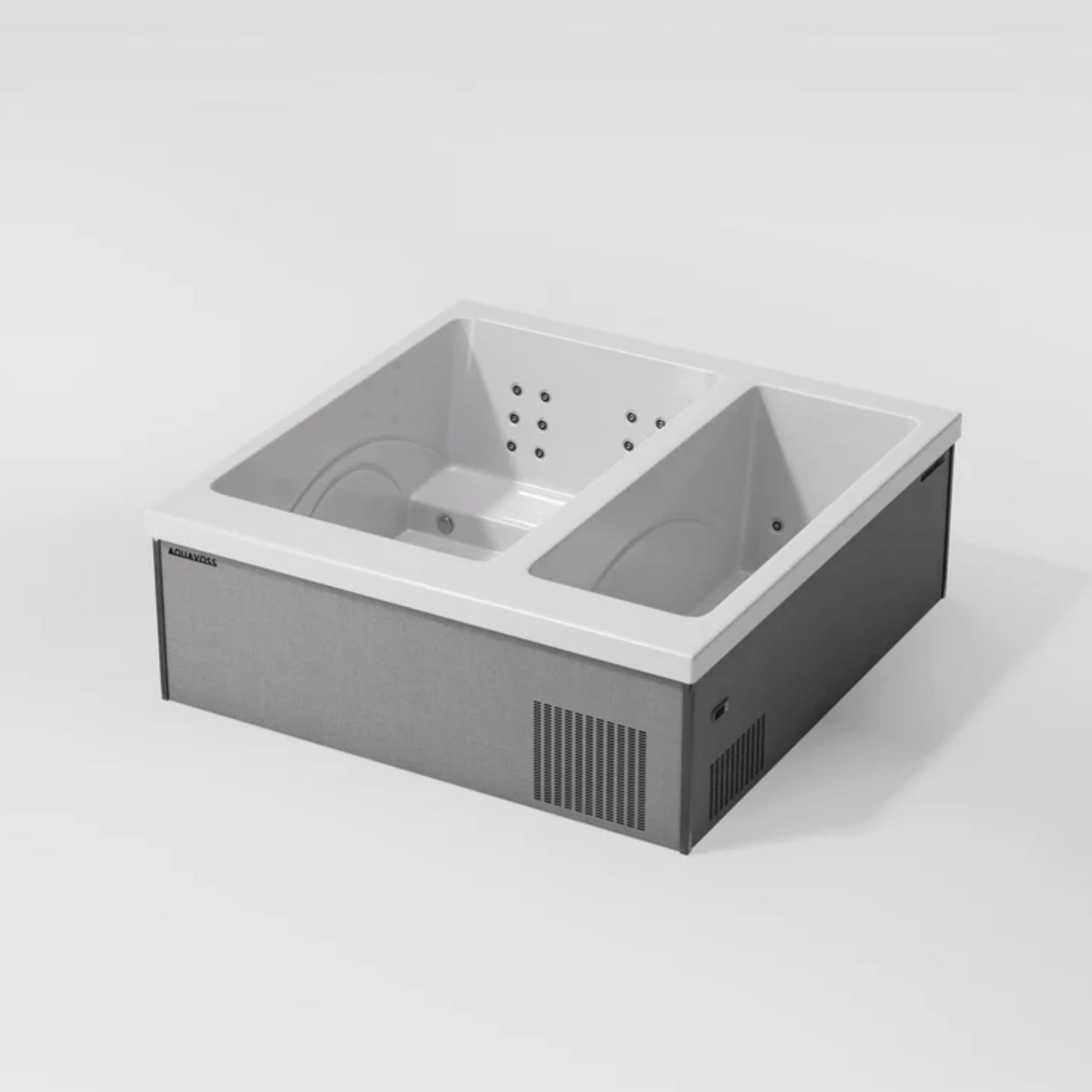

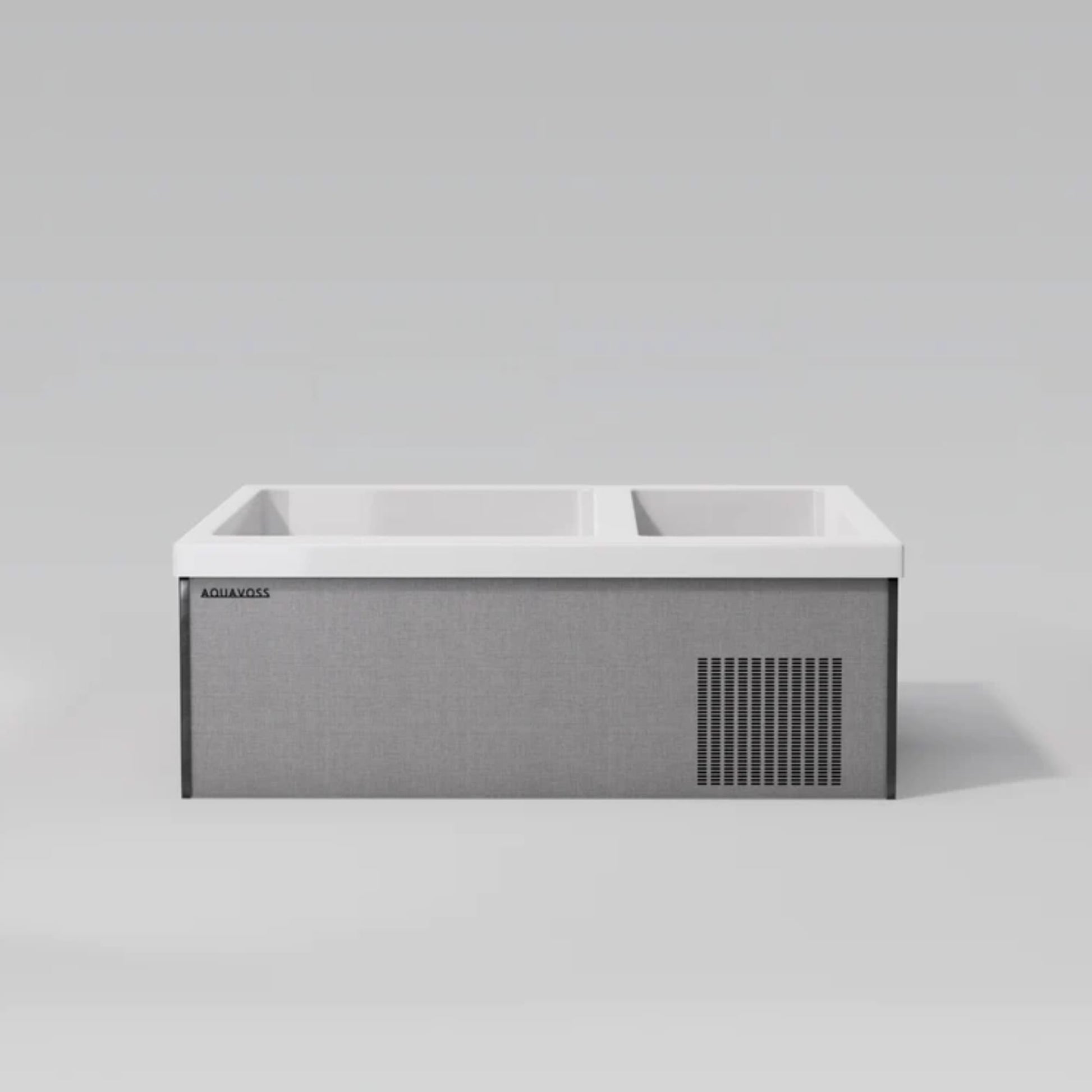

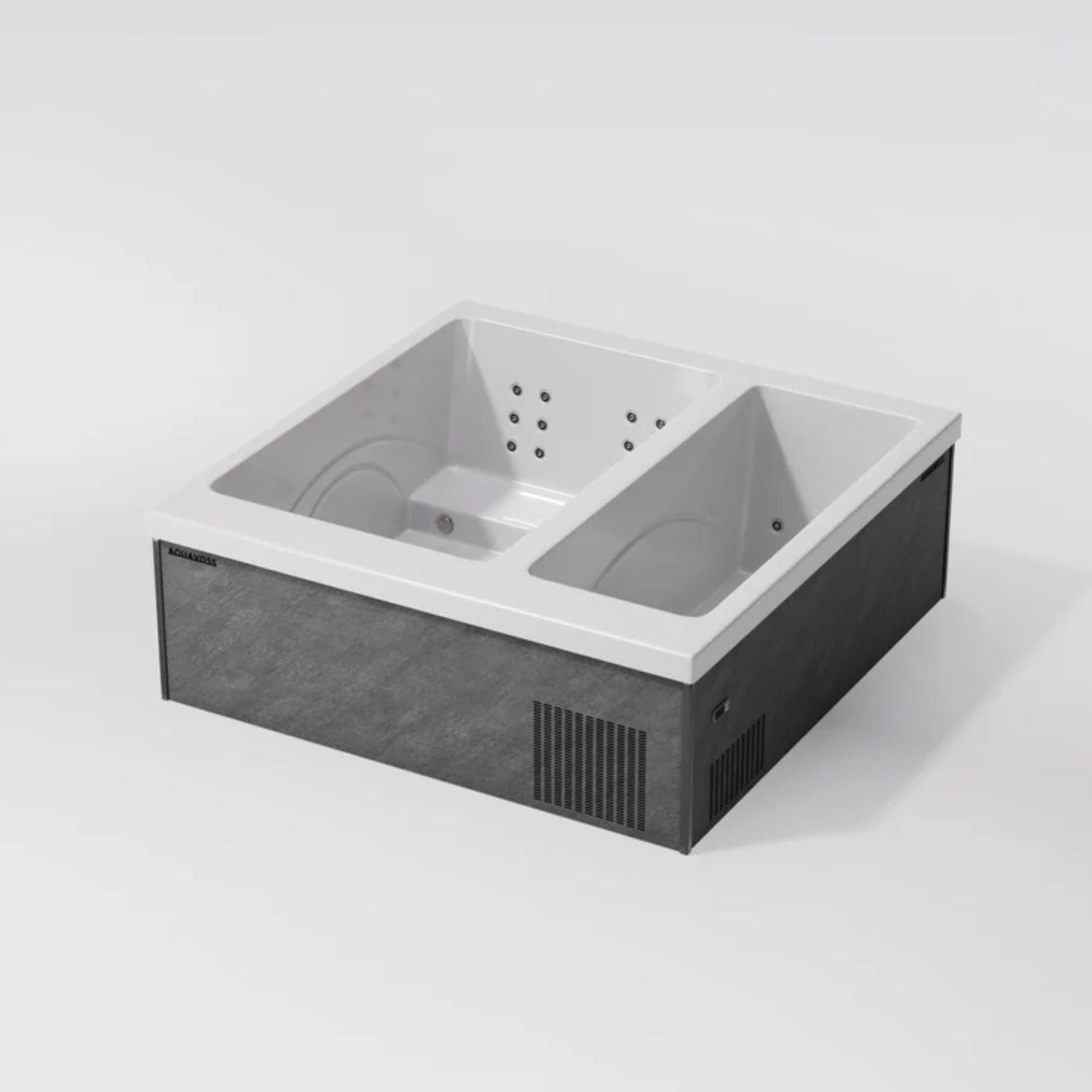

The AV-2 combines a full-capacity hot tub and a dedicated cold plunge in one integrated system measuring 84"x84" (seven feet) x 33" high. The hot tub comes equipped with 24 high-pressure hydrotherapy jets, and each zone runs on its own independent heating, chilling, circulation, and filtration systems, allowing true contrast therapy without managing separate units.

Hot and Cold Contrast System

104° Hot Tub, 39° Cold Plunge

Spacious Seating for Six

4 Person Hot Tub, 2 Person Cold Plunge

Free Curbside Delivery

Anywhere in the Continental USA

Best-In-Class Warranty

2 Years Parts Labor, 5 Years Structural

Manual

Click here to view the User Manual

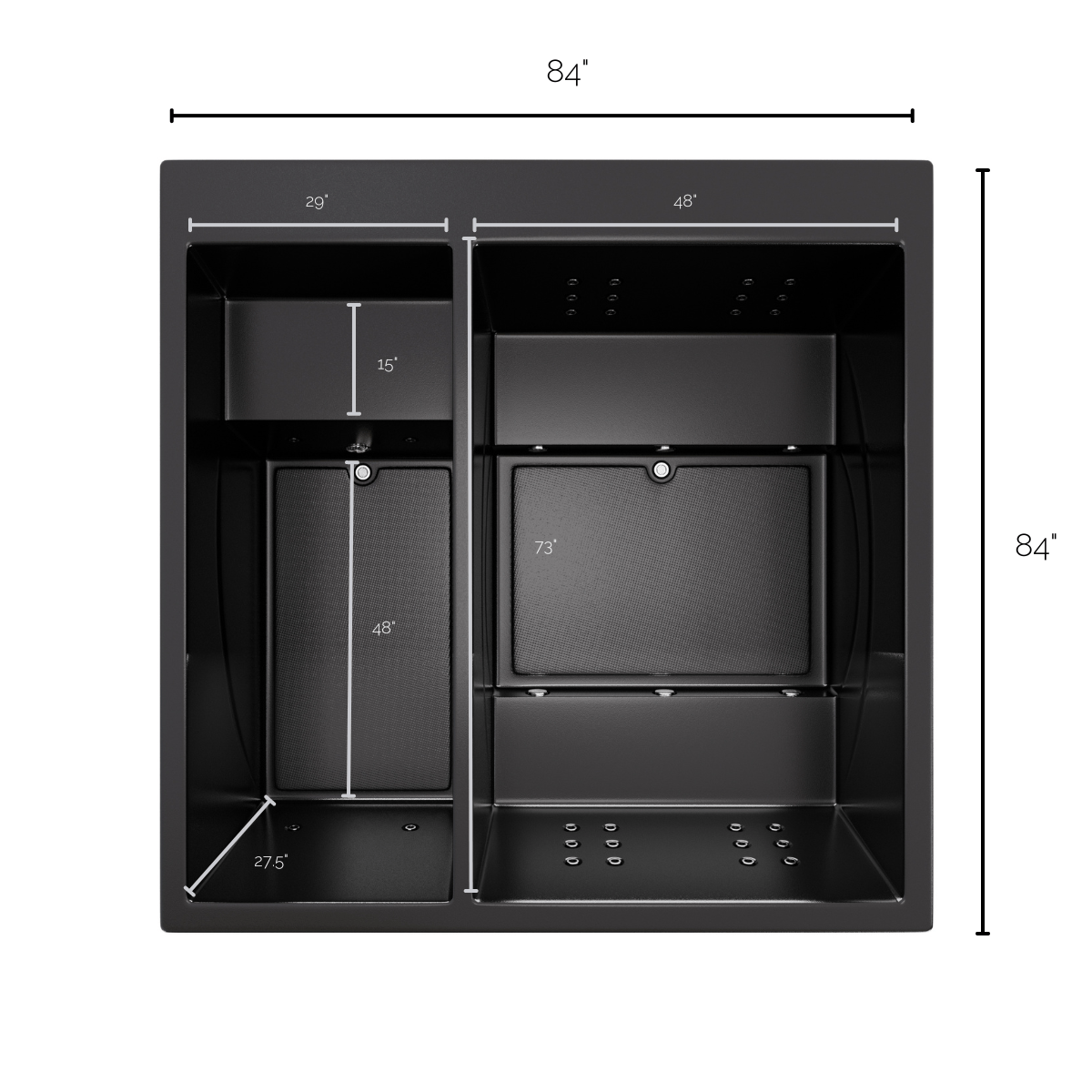

Cold plunge dimensions

Tech Specs

Hot and Cold Together

Cold Punge 39°F

Hot Tub 104°F

The AV-2 brings the body into focus. Contrast therapy reduces inflammation, sharpens the mind, and helps you recover from whatever pushed you today.

Engineered to the Highest Standard

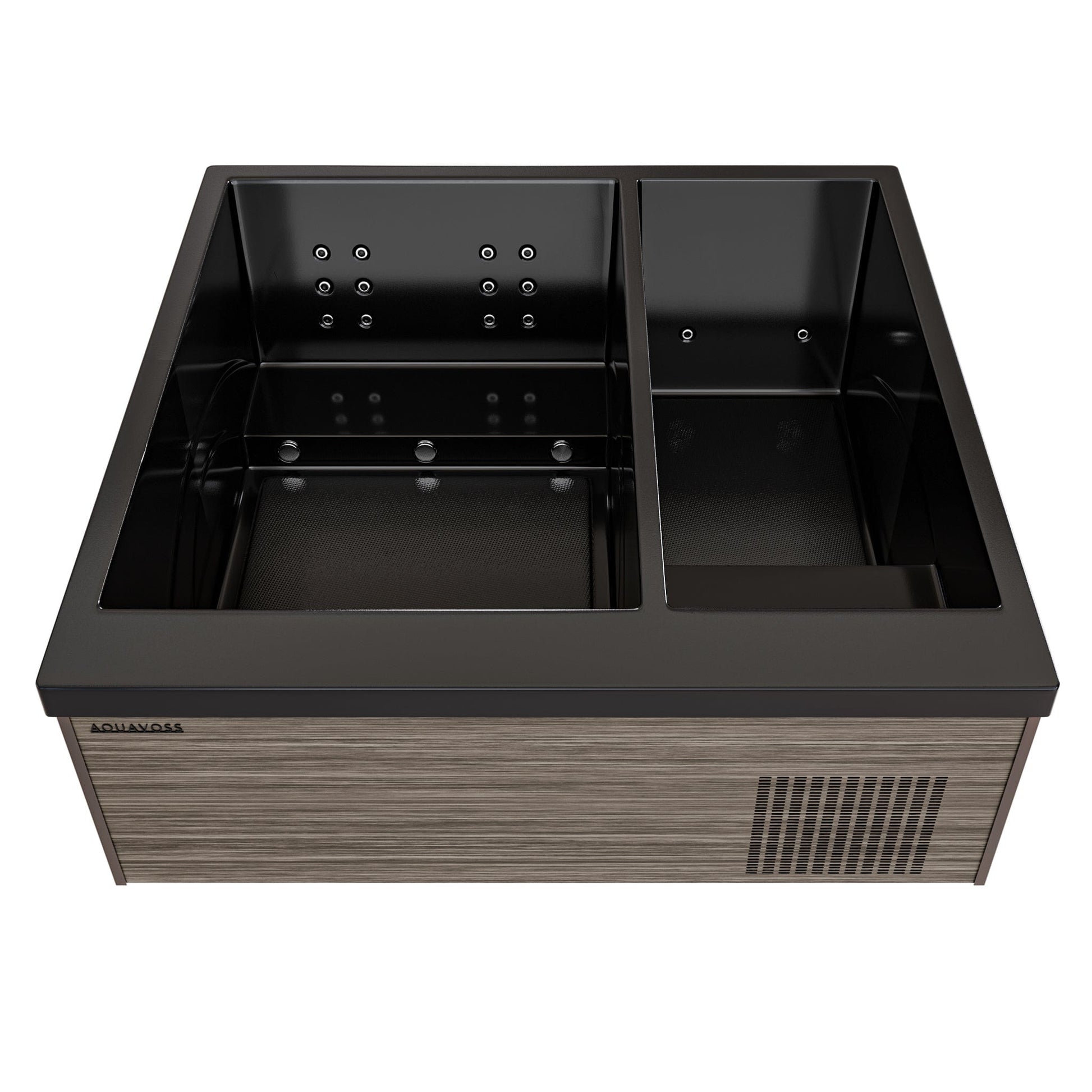

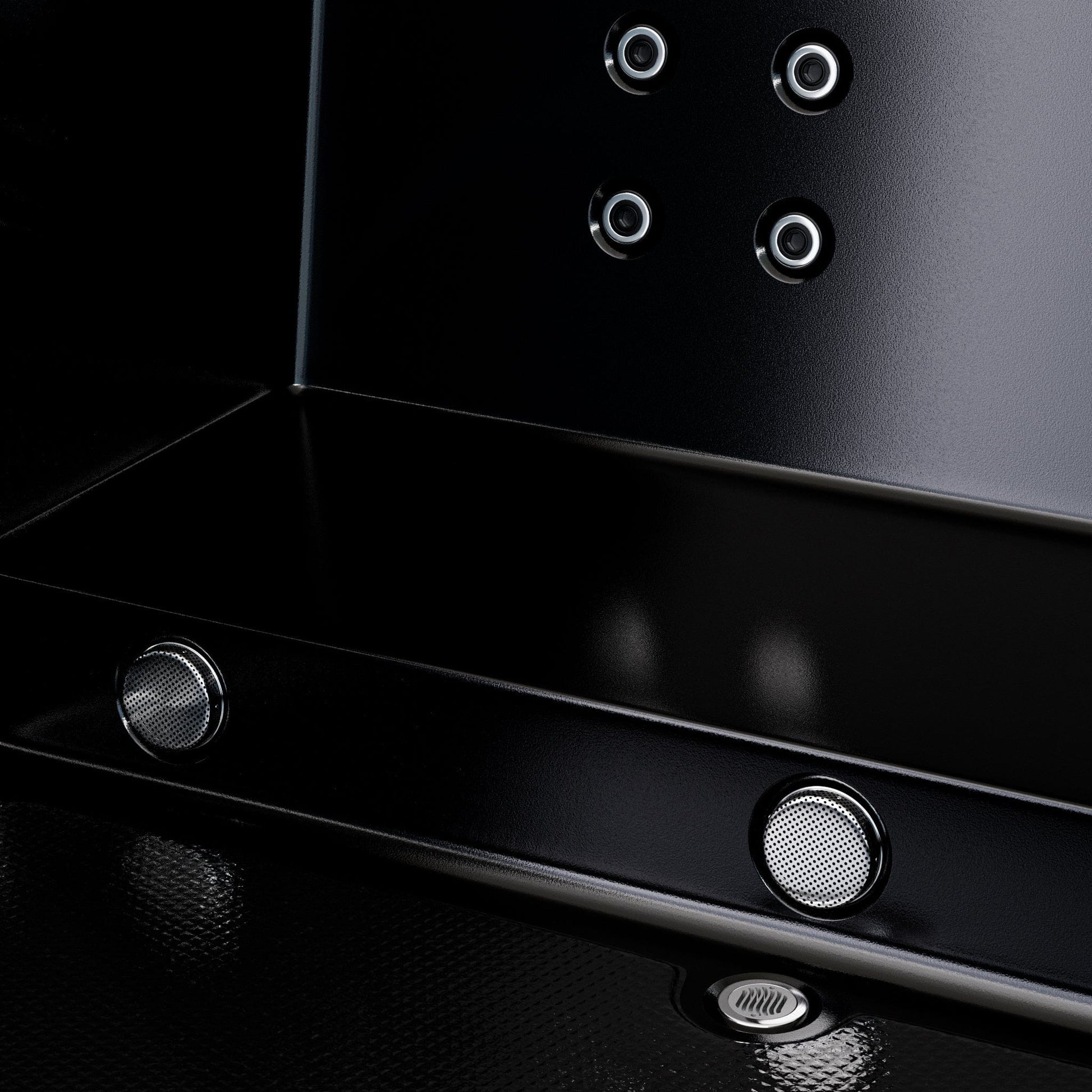

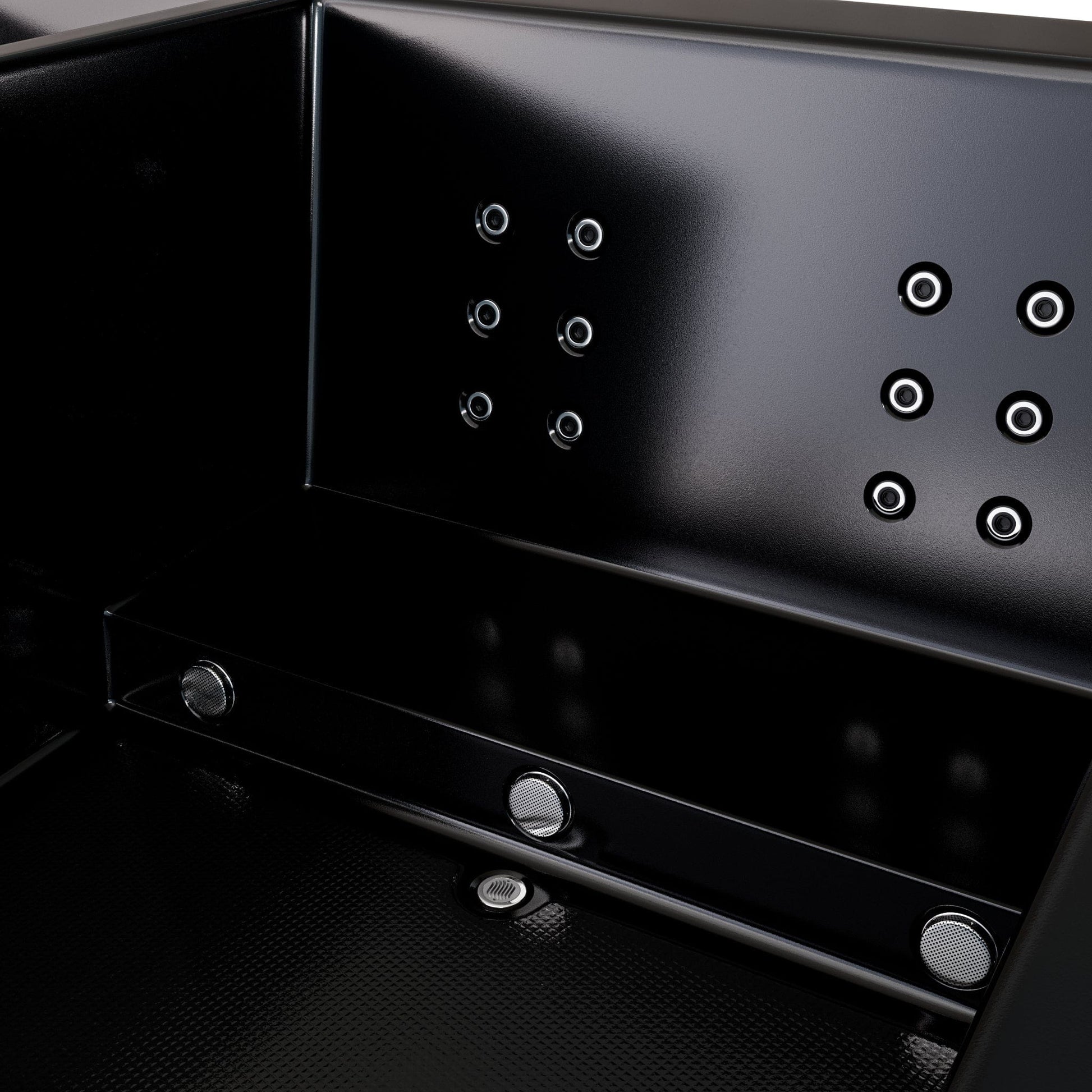

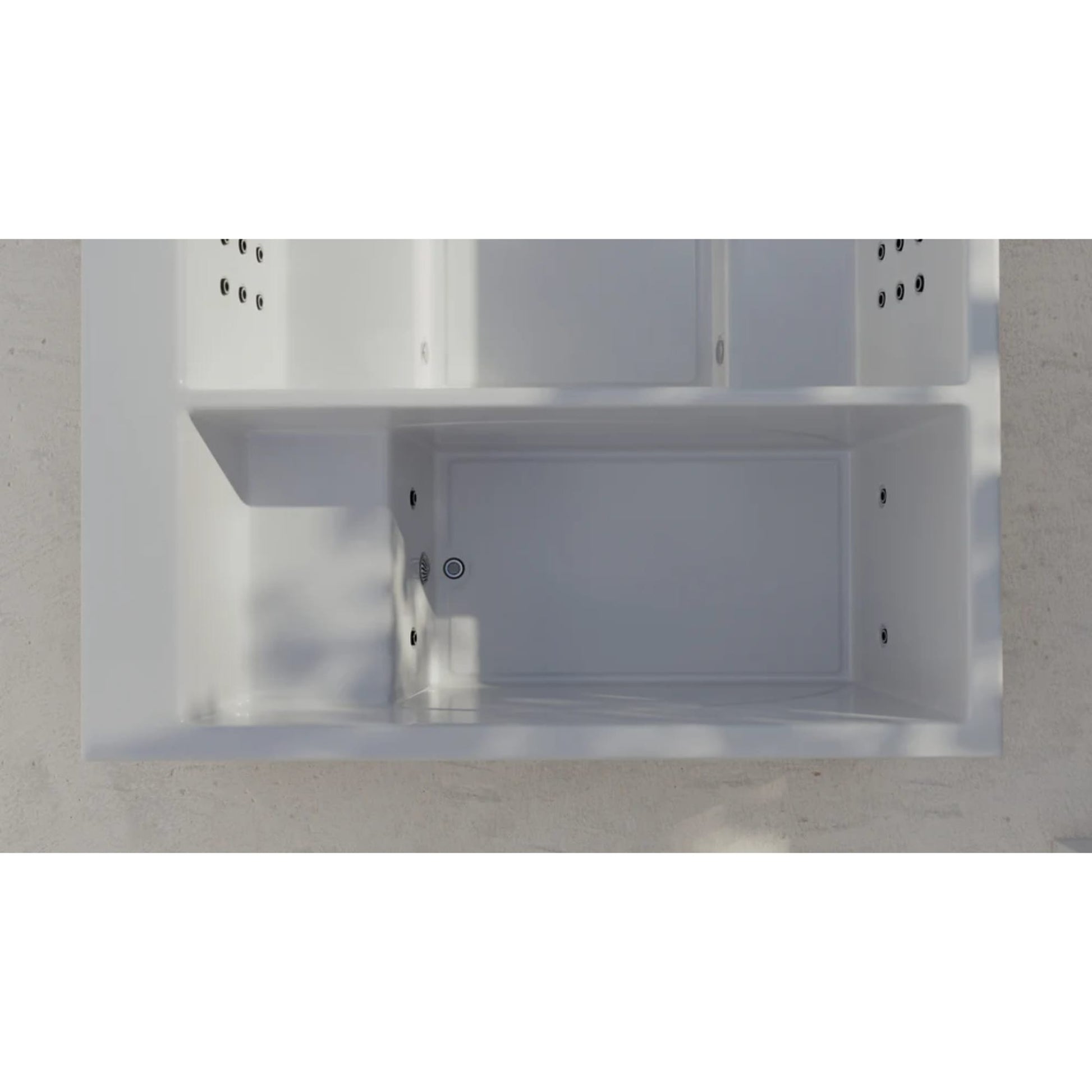

1. 24 Pressurized Hydrotherapy Jets Operating on a 3HP Pump

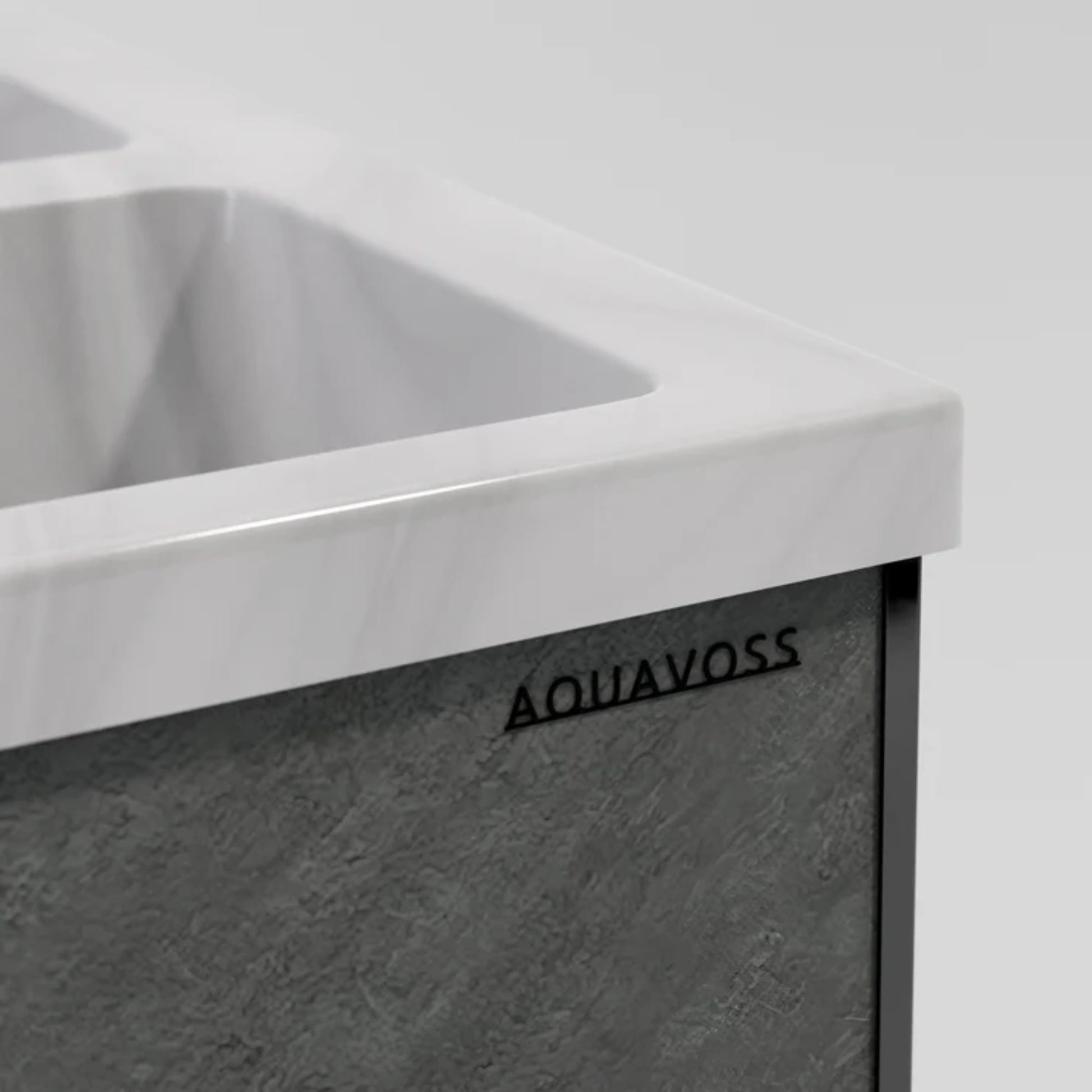

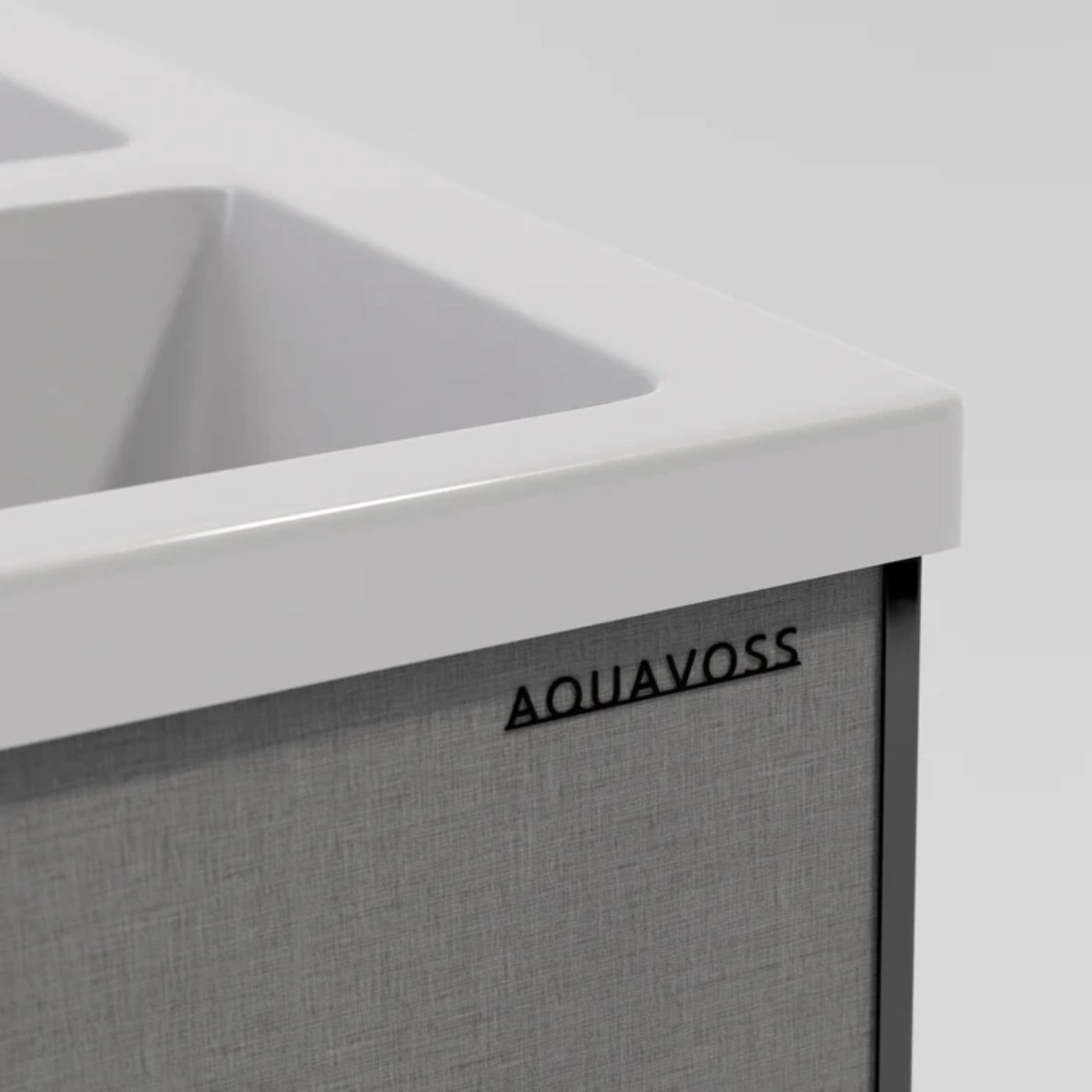

2. High-Durability Acrylic Shell
3. Triple-Filtration with Self-Cleaning Ozone and Two 20-Micron Pleated Filters

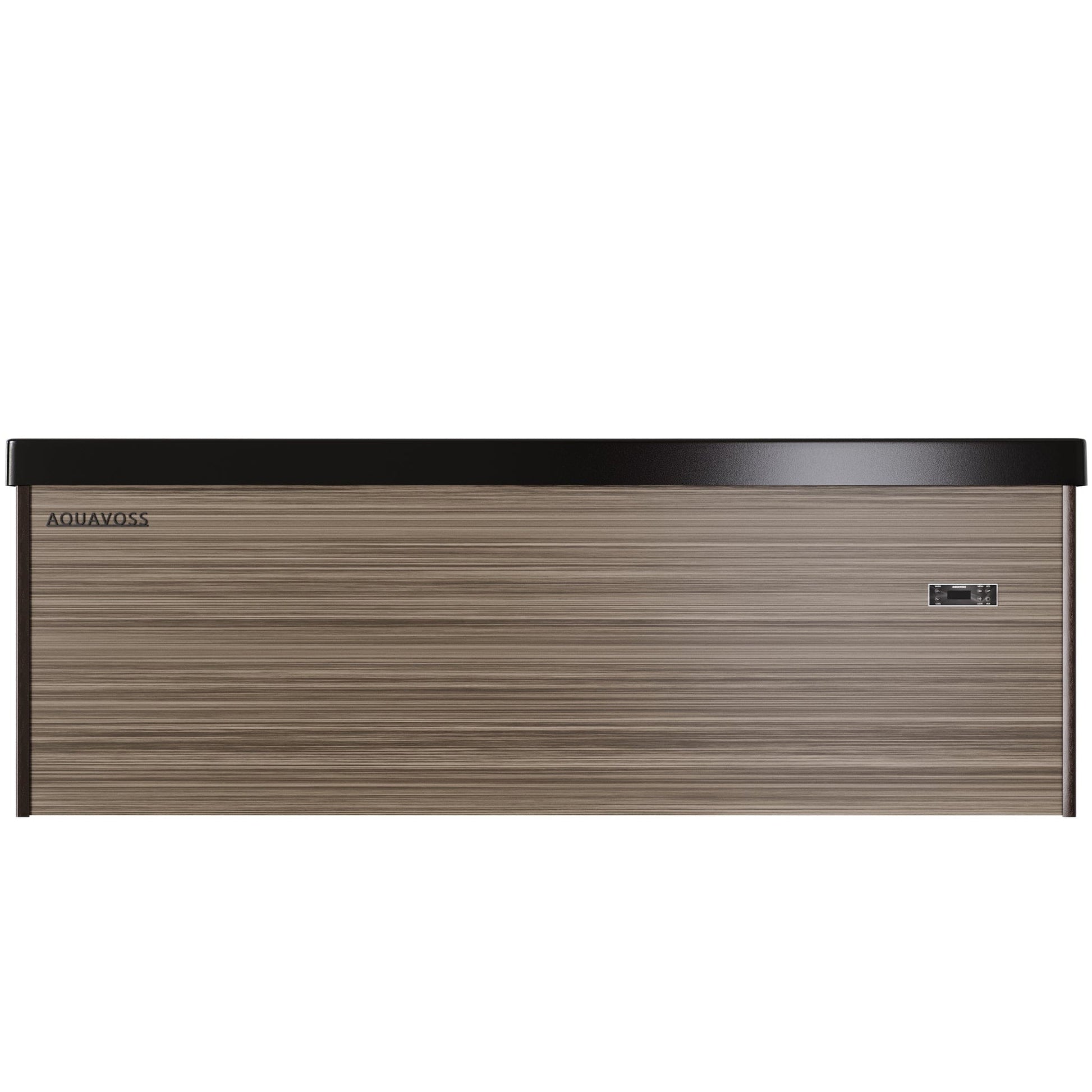

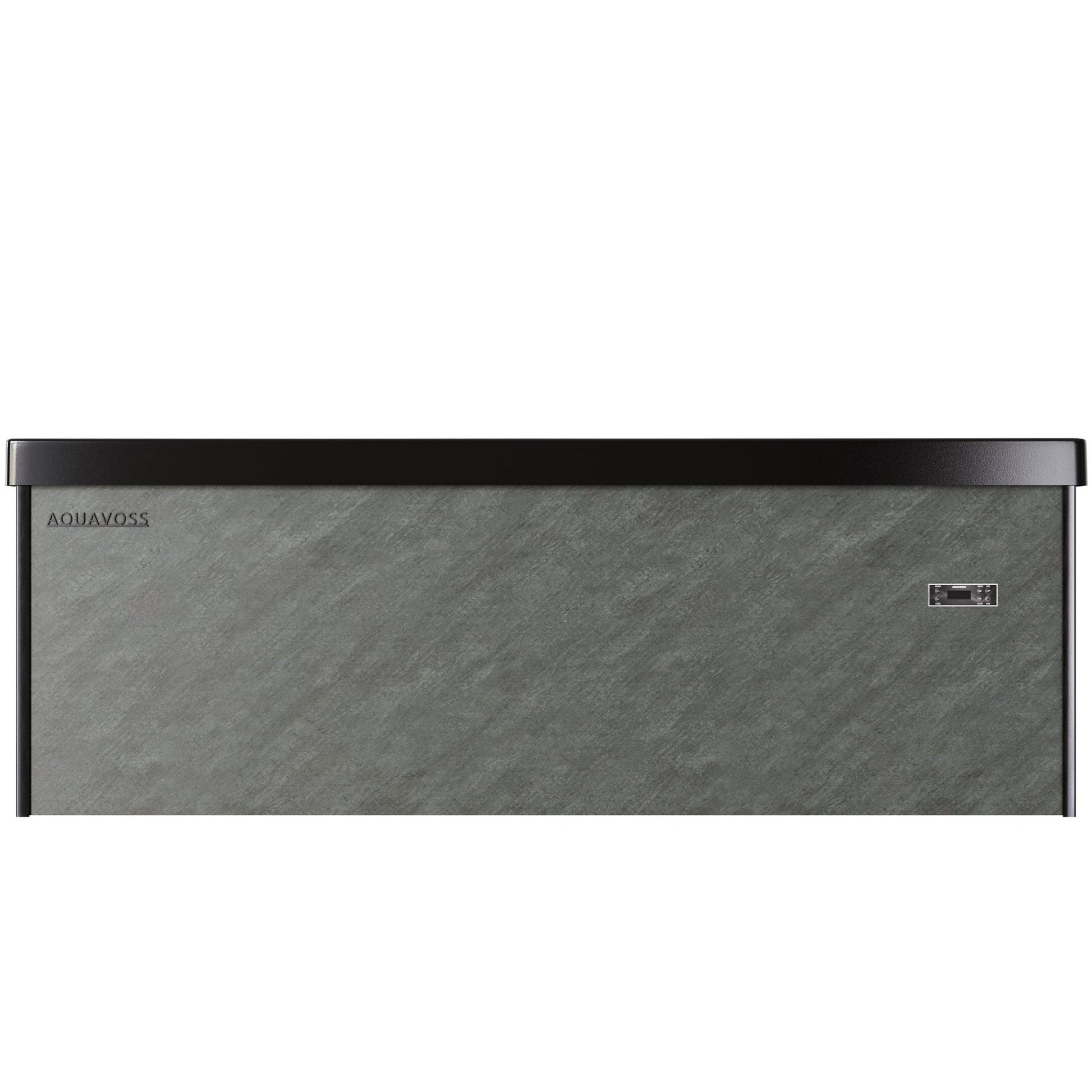

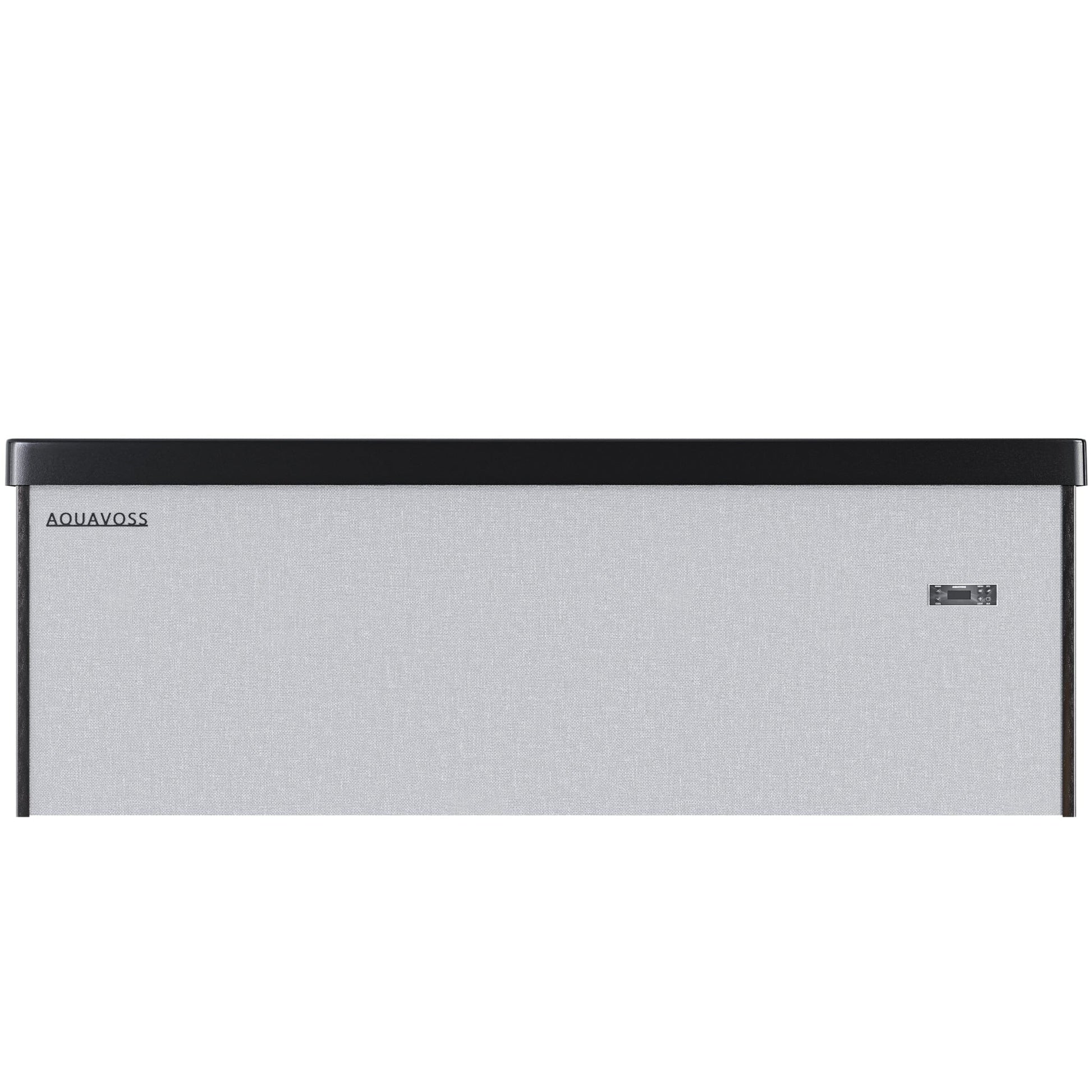

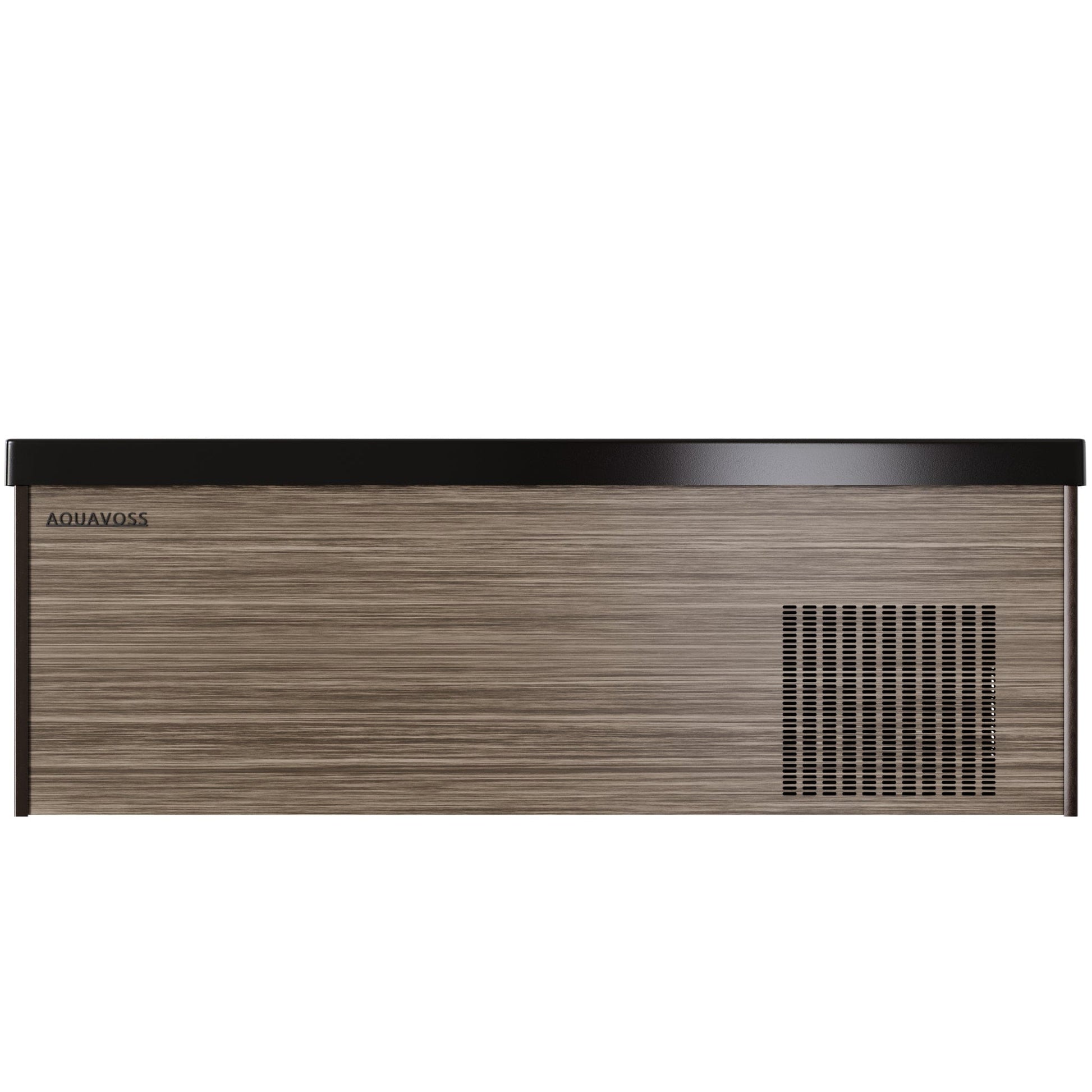

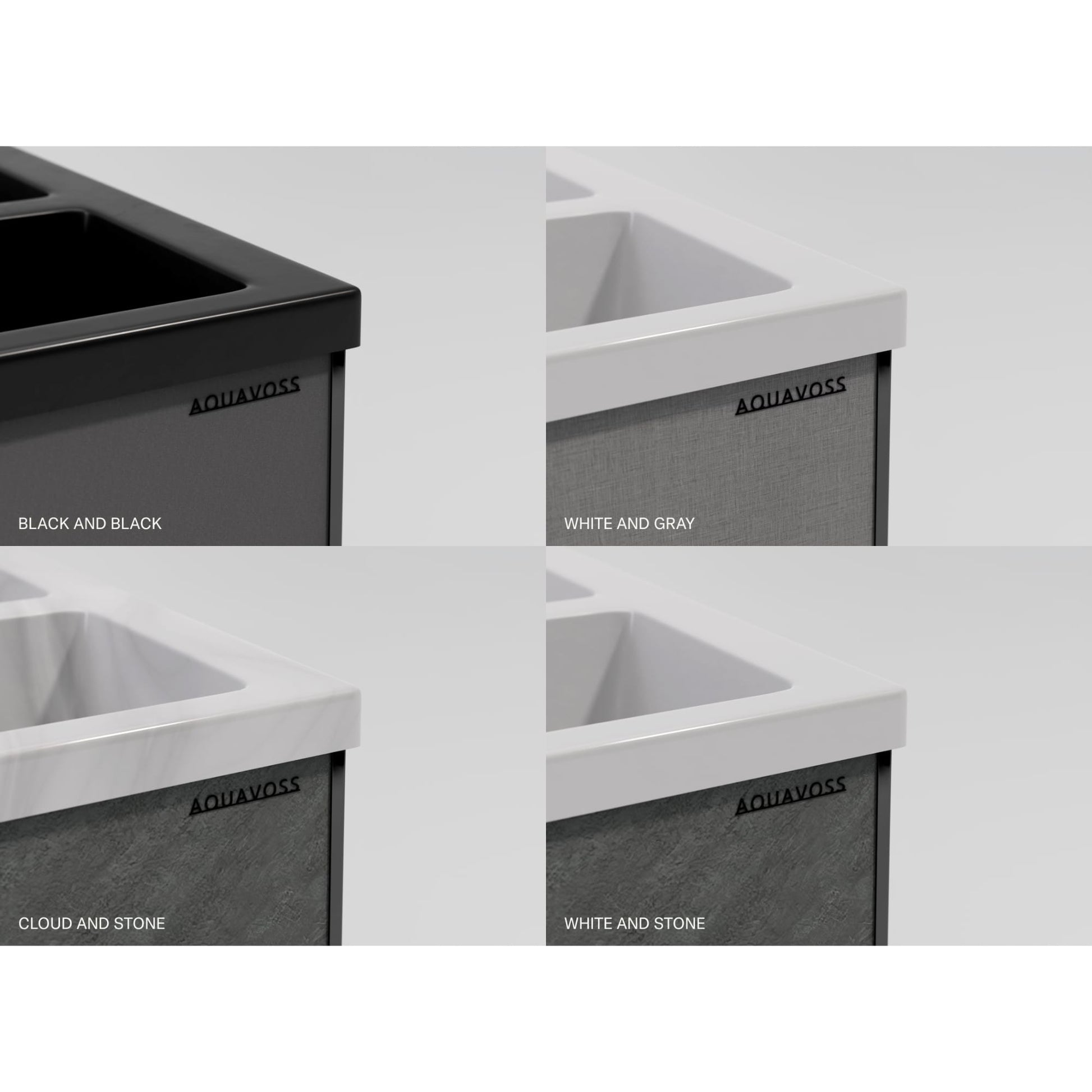

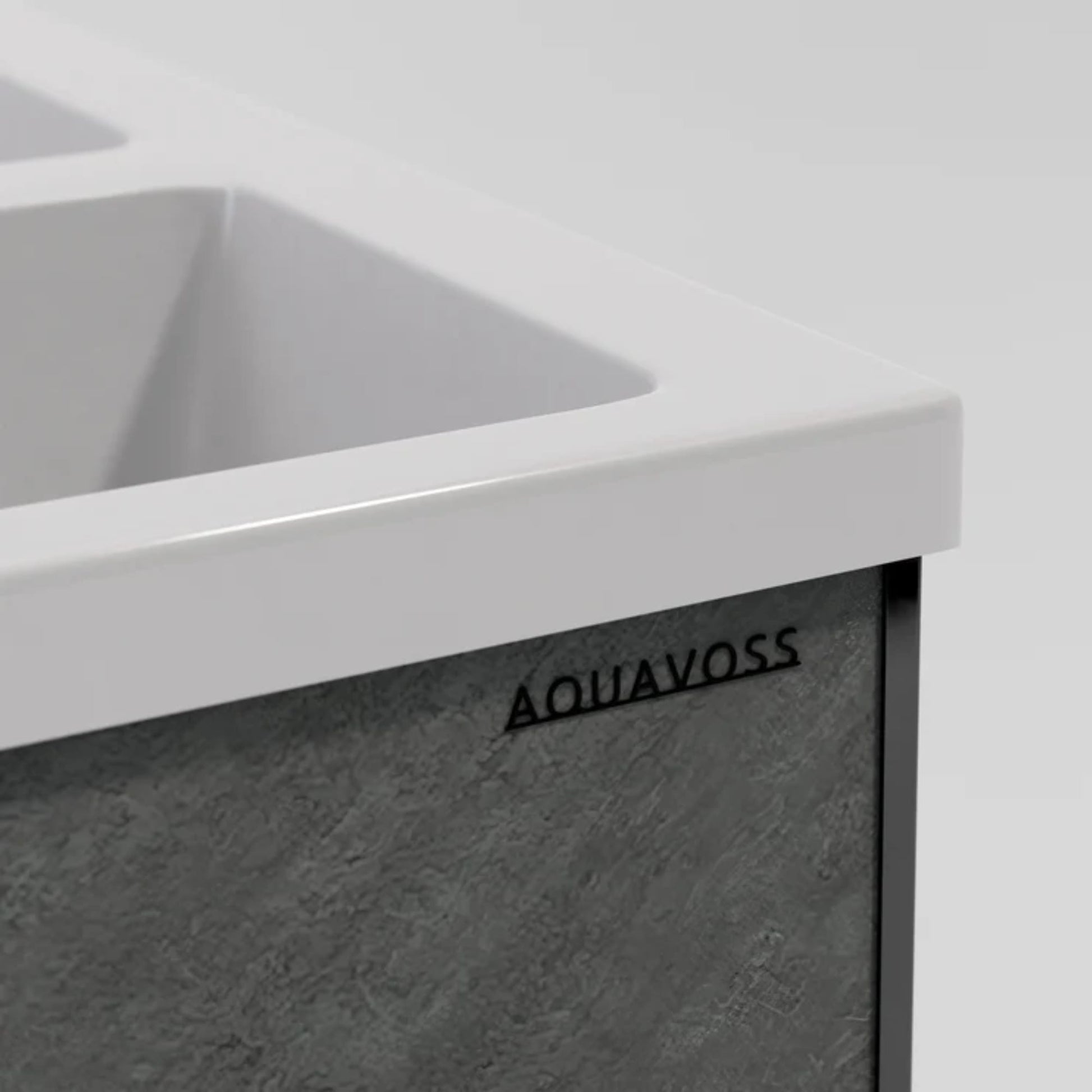

4. Weatherproof Aluminum Composite Panels
5. Insulated with 2" Closed-Cell Foam and a 4" Marine-Grade Cover
6. Balboa Water Heater & Control System
7. Panasonic-Powered, Custom-Tuned 48dB Aquavoss Chiller
8. LED lights

FAQs

What are the dimensions and weight of the AV-2?

The AV-2 has exterior dimensions of 84" L x 84" W x 33" H.

It weighs 975 pounds when empty and 5,800 pounds when filled.

What are the site requirements for installation?

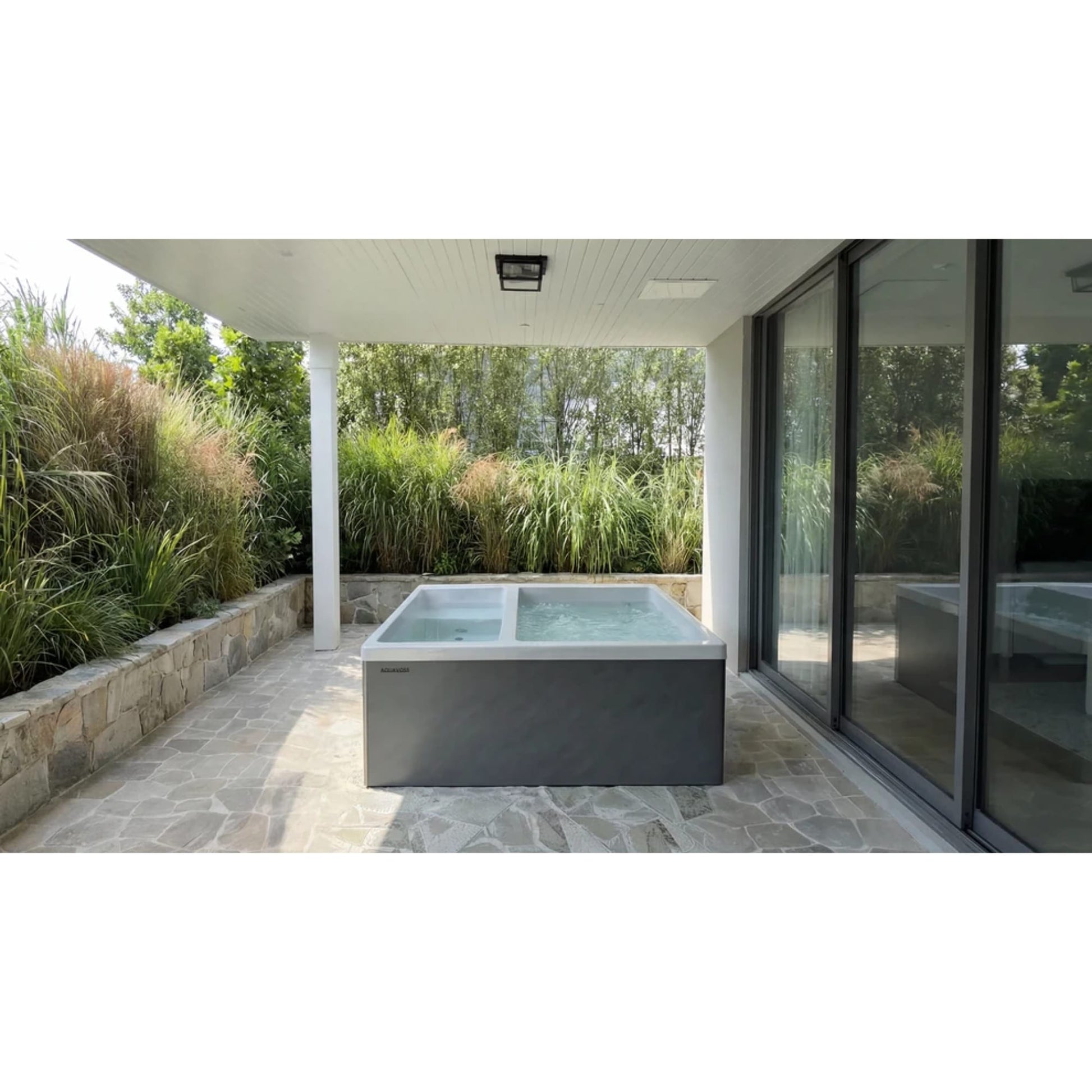

• The AV-2 can be placed inside or outside on a level surface.

• It weighs 5800 pounds when filled, and must be placed on a surface that can support this weight. A deck, platform, concrete pad, or 4" of loose stone can all work well.

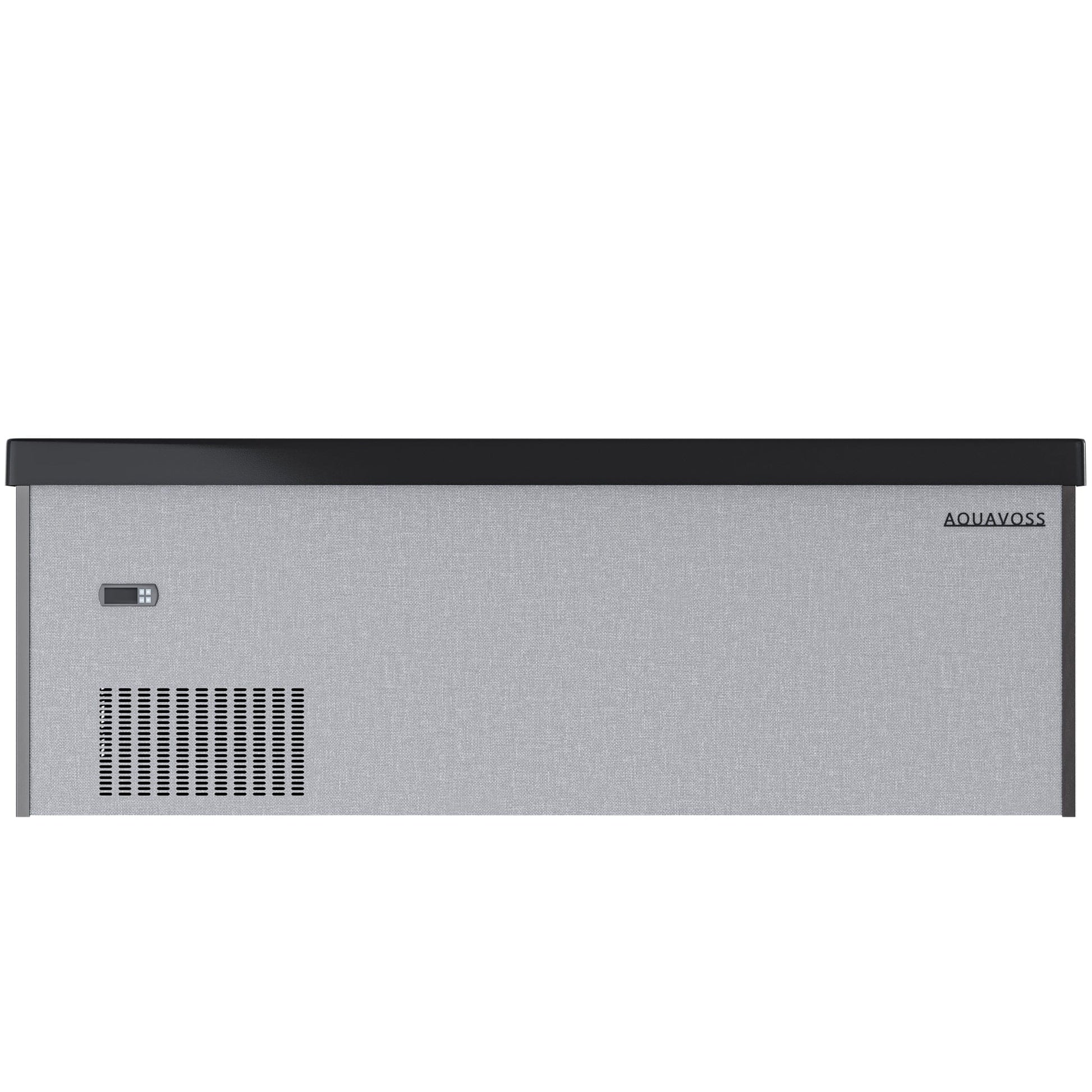

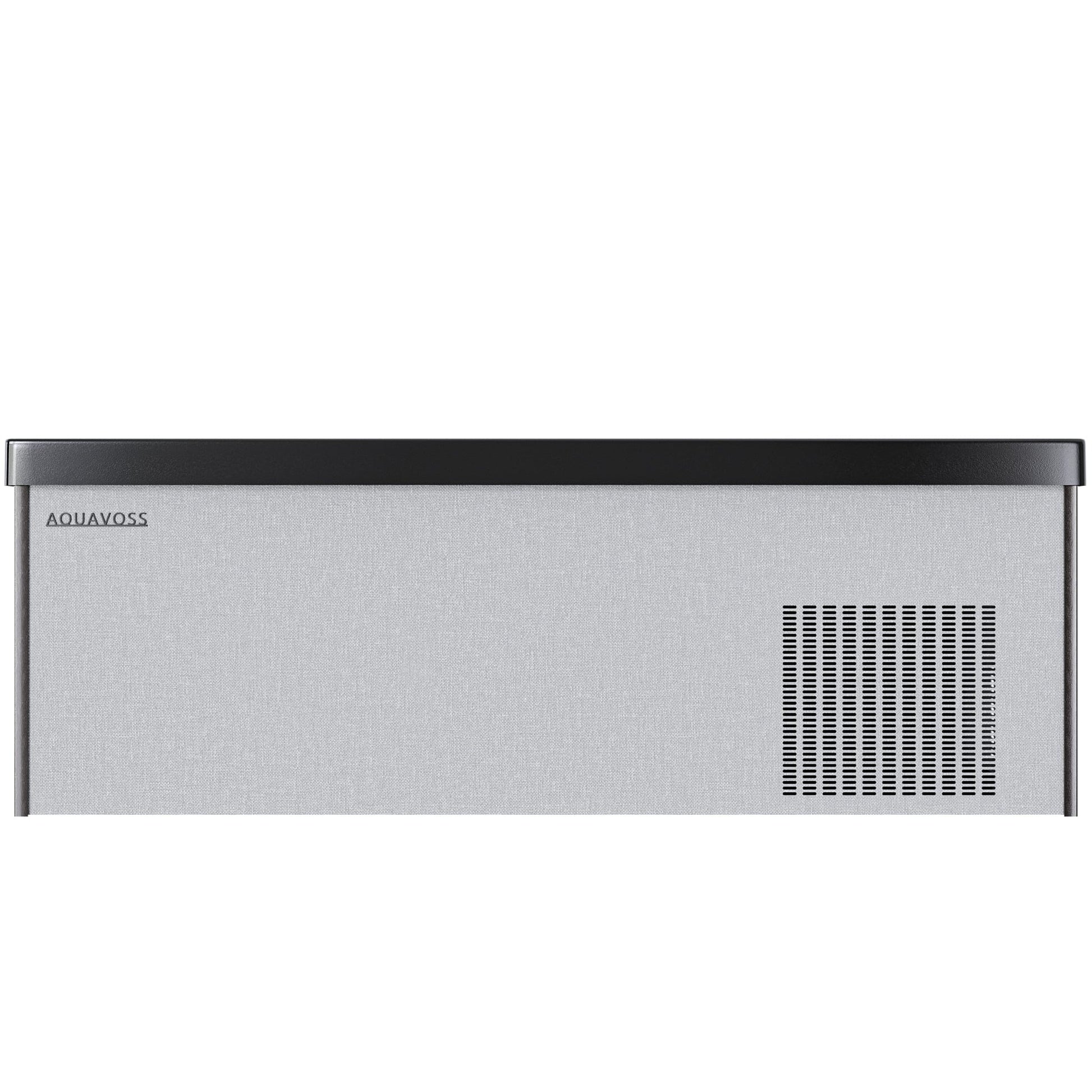

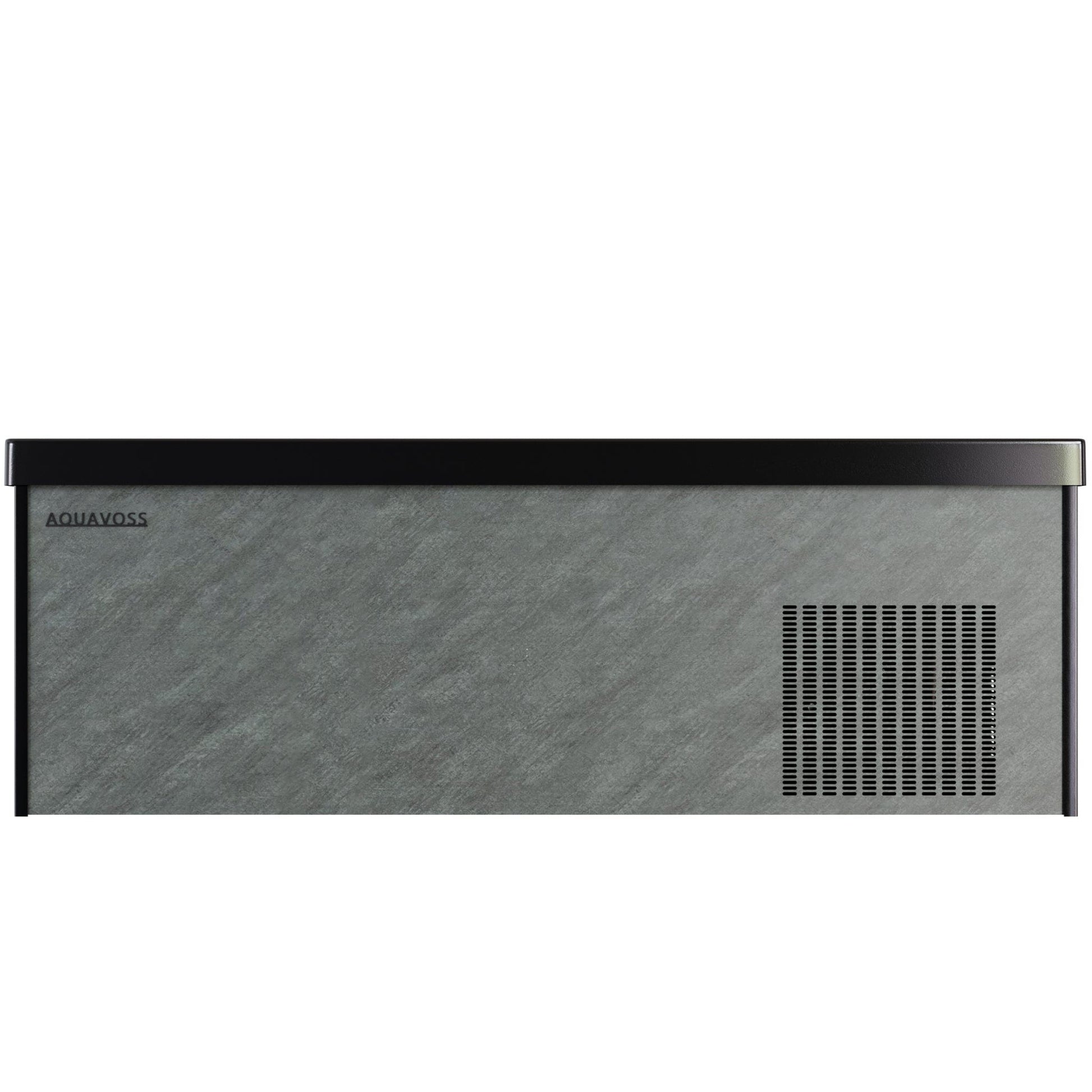

• There are two vents that are located on the cold plunge side of the AV-2 which should have access to open air for ventilation. One vent is located on the access panel and should have 5 feet of clearance. The smaller vent along the length of the cold plunge should have 2-3 feet of space, depending on your environment.


What are the electrical requirements?

The hot tub runs on a 220V hard-wired electrical connection and should be installed by a licensed electrician. The cold plunge runs on a standard 110V connection.

How does install work?

Once delivered, there are three steps for installation.

1) Place the Unit. We recommend you work with a local hot tub mover to ensure a safe, smooth install. They will un-crate the unit, move it into location, and remove crate packaging. We’re happy to suggest trusted movers in your area (we've worked with many) and help with quotes—you’ll contract directly with them. Most straightforward installs cost $300–$500, assuming clear access (3 ft wide, 7.5 ft high, no tight turns or steep stairs). You should confirm with the mover in advance so everything goes smoothly.

2) Hook Up Electrical. Your electrician will connect the unit (220V for the hot side, 110V for the cold side).

3) Connect & Fill. You can connect the chiller, fill up the AV-2 with a standard hose, and you’re ready to go!

What is maintenance like?

Assuming residential and normal use, routine maintenance is similar to a standard hot tub. We recommend:

Weekly: Add sanitizer and balancers to your water. Rinse the metal mesh filter on the cold plunge.

Quarterly: Drain both the cold plunge and hot tub. Clean the acrylic shell and cover. Replace the paper filters on both the hot tub and cold plunge. Refill and add sanitizer and balancers.

How does shipping work? How long does it take?

We offer free curbside delivery via freight carrier. The unit ships to a local distribution center, and then the carrier contacts you to schedule a delivery window.

Usually this takes 1-2 weeks from the day we ship. For in-stock units, we can ship next-day if you’re ready to receive it.

Can I order now and ship later?

Absolutely! We'd be happy to hold your order until you are ready to receive — and we won’t ship out without your explicit approval.

Can the AV-2 be put below ground or in a deck?

There are two vents that are located on the cold plunge side of the unit. These vents are essential for providing proper airflow to the cold plunge chiller, and they need unobstructed open air access. As such, the AV-2 cannot be placed fully underground.

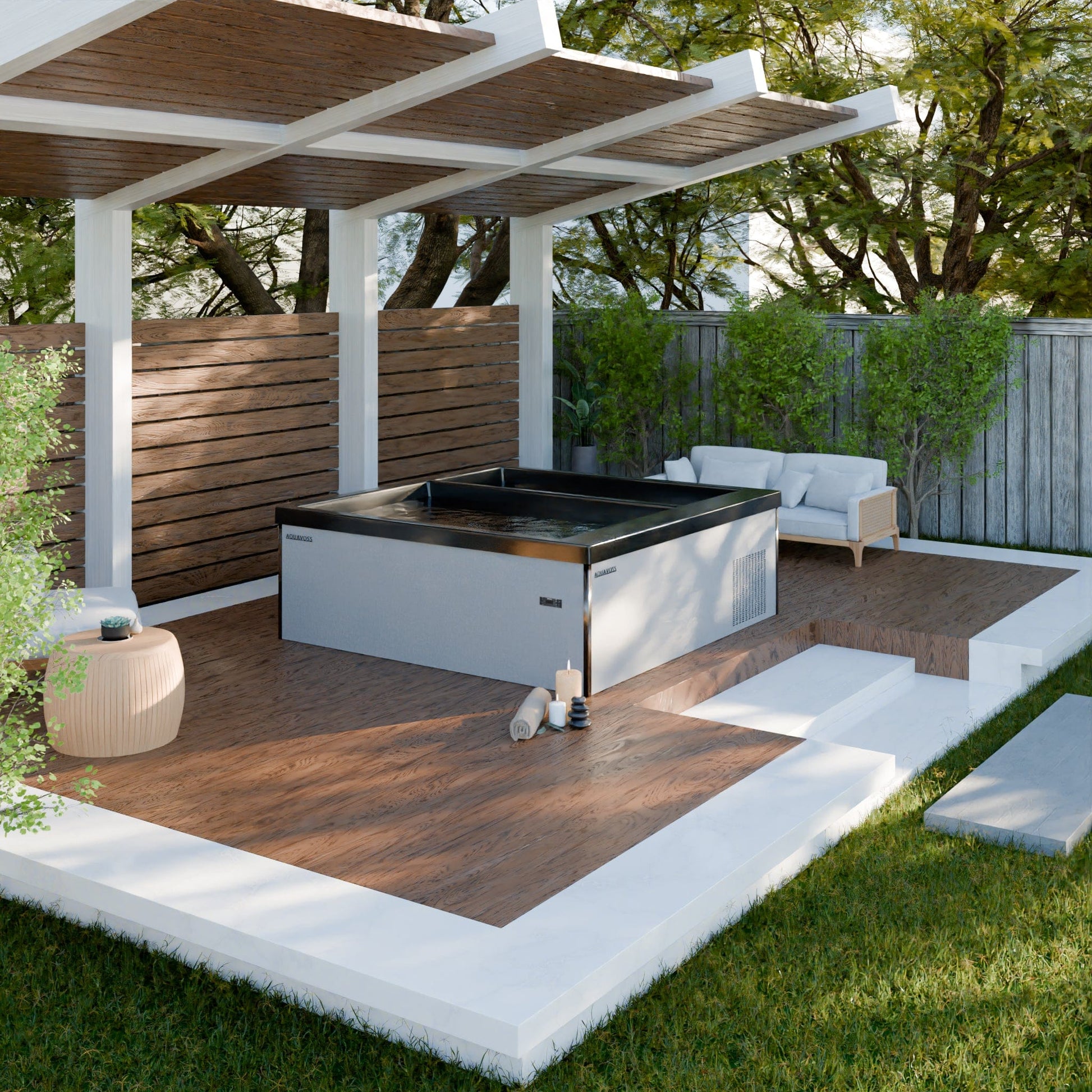

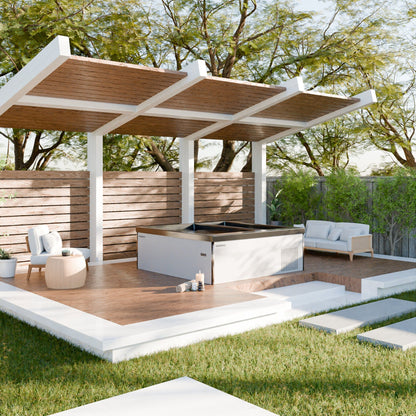

Many customers choose to embed their unit in a deck or against a wall. This is possible as long as the vents have airflow, and you have access to the mechanicals & controls. Feel free to reach out to discuss what's possible!

Can the AV-2 be used year-round?

The hot tub is designed for year-round outdoor use, including winter.

The cold plunge is designed for use above freezing temperatures. There are some modifications you can do to keep it running in sub-freezing temps — please reach out to us to discuss if you are interested.

Without these modifications, the cold plunge should be winterized and drained for temps below 32°F.

How long does it take to heat up / cool down?

Each side of the AV-2 typically heats/cools at a rate of 4°F per hour. Once at the desired temperature, it maintains that temp continuously.
