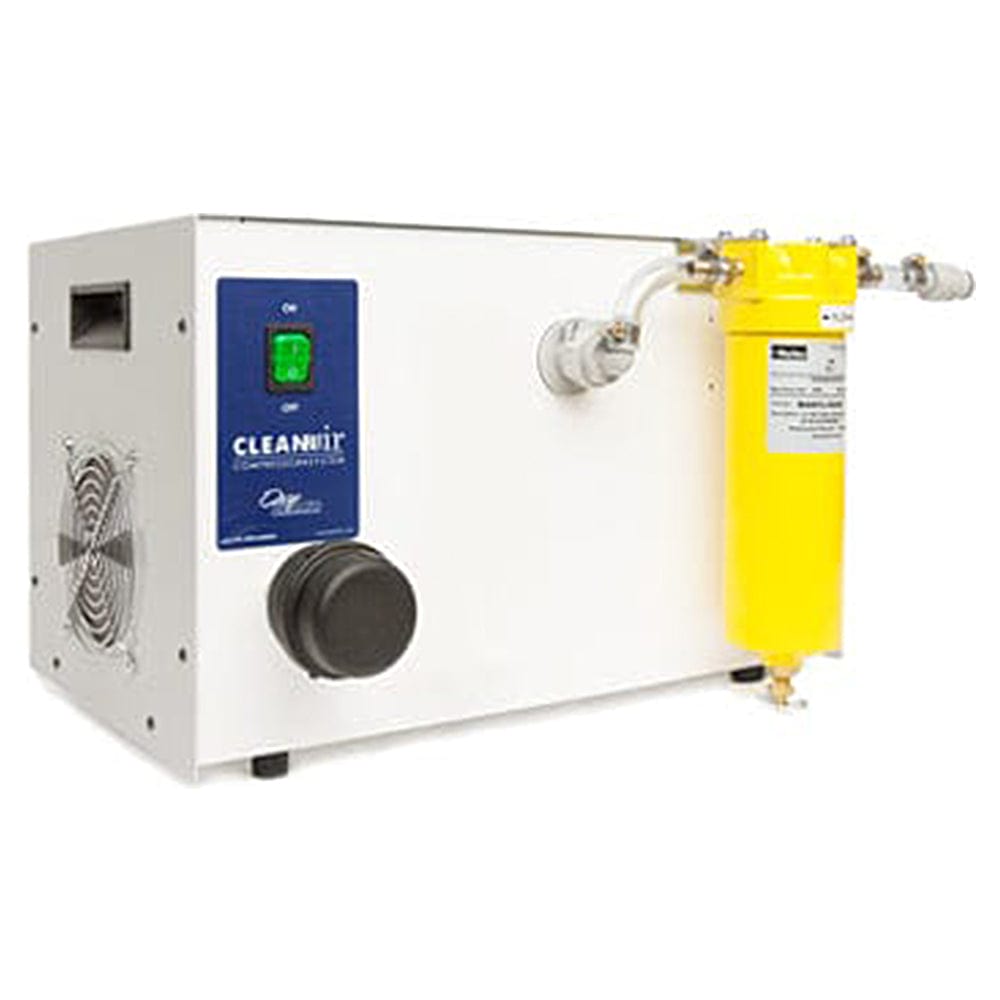

CLEAN AIR COMPRESSOR

• Double-headed, oil-less, 1/3 hp compressor with dual intake filters with cooling radiator
• High-efficiency inline air filtration that filters air to 0.01 microns
• Analog pressure gauge

What do you get?

YOUR SAFETY IS ALL THAT MATTERS:

OxyHealth continues to have the industry’s best safety record that extends throughout our product line. Patient safety during treatments is the principal assurance that we provide to all of our users. All chambers are evaluated by experts through a vigorous multi-point inspection and are certified to provide patients with safe and long-lasting functionality. Your safety, health and well-being remain our highest priority.

MATERIALS:

All of our chambers are constructed and assembled in the U.S.A. with powerfully durable 44 oz. double-sided urethane. Dual zipper and control valve technology provides patients with the ability to self-treat. Tamper-proof redundant pressure regulators and angled air-in port maintains consistent circulatory air flow. All chambers are made from non-toxic materials and are entirely equipped with medical grade components.

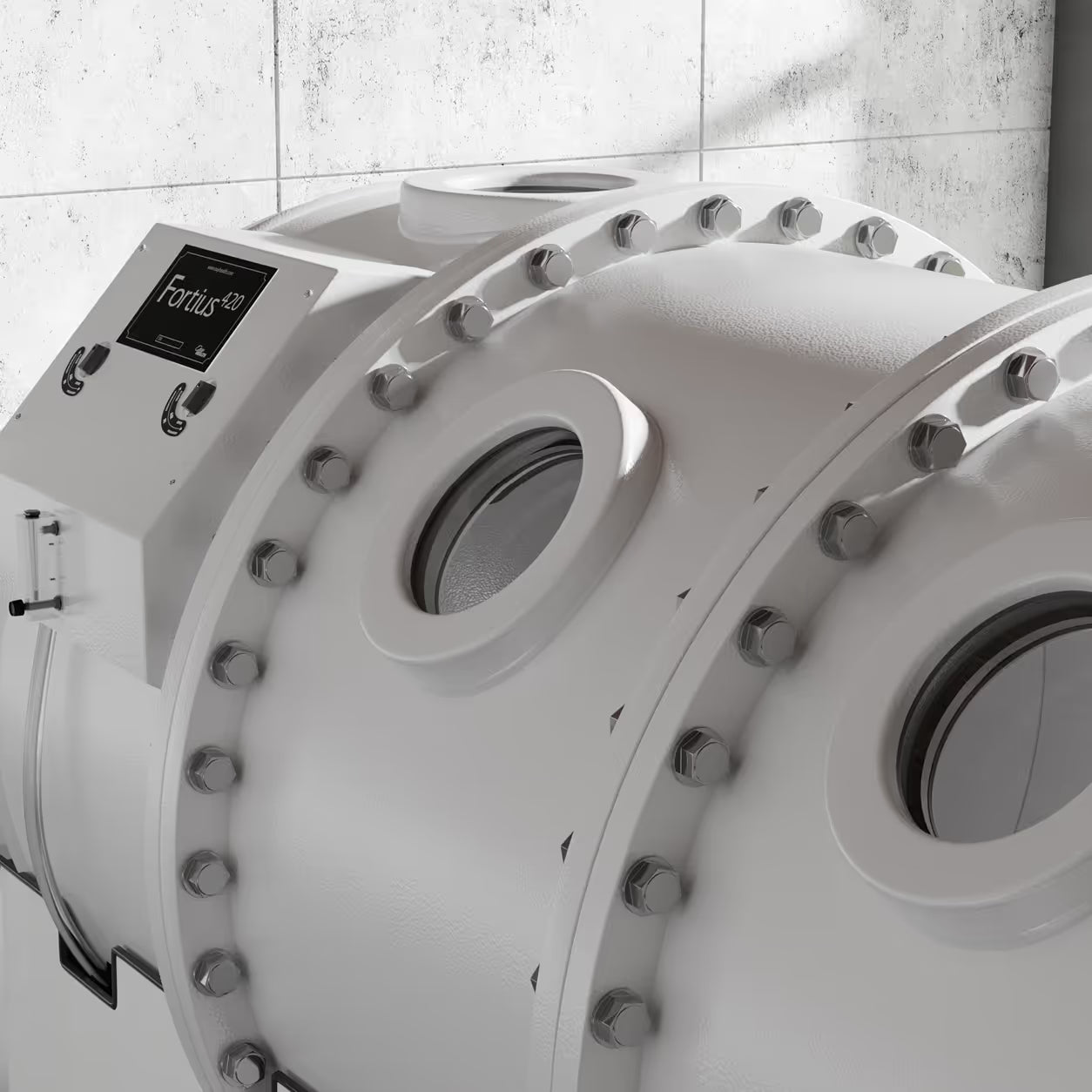

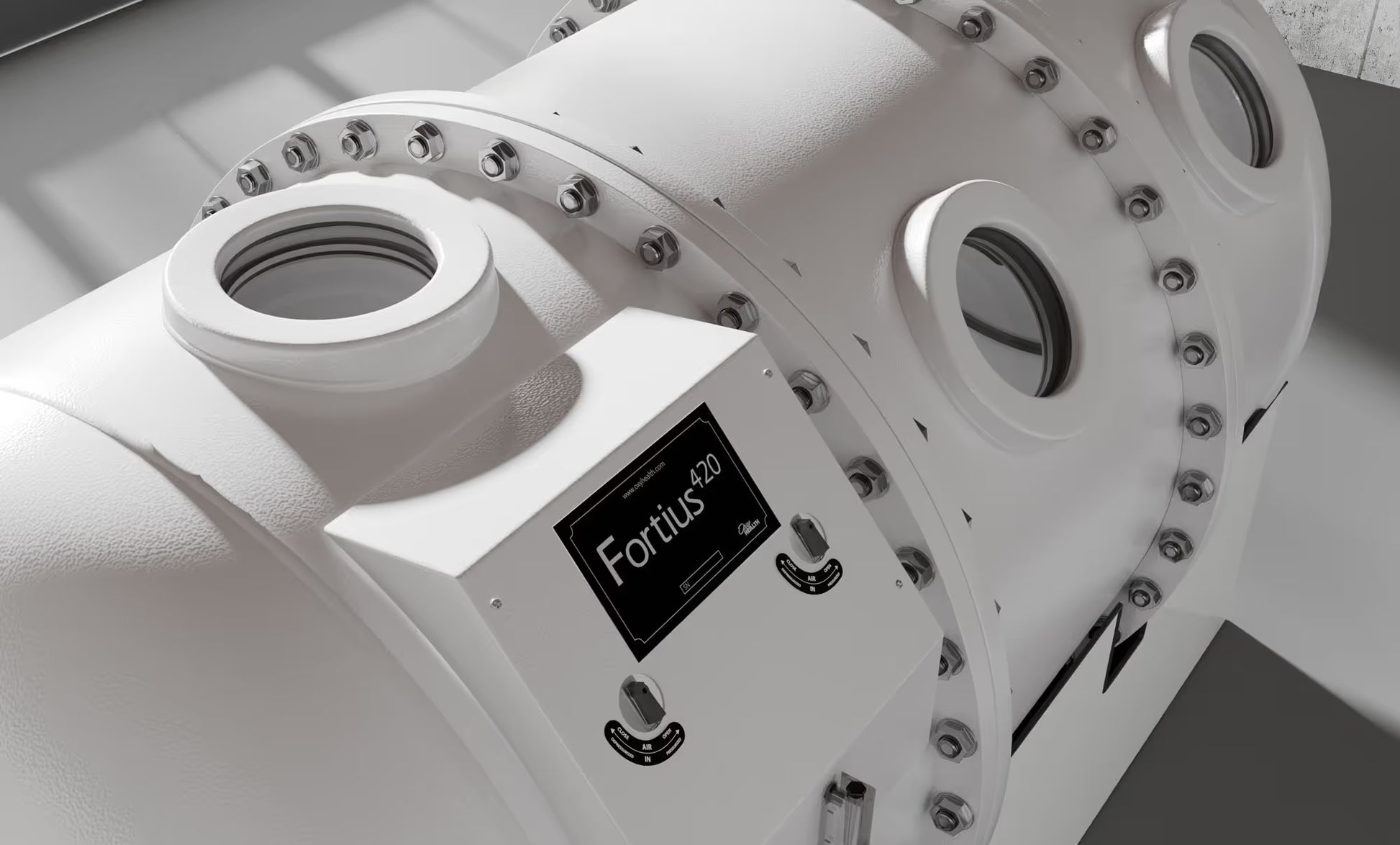

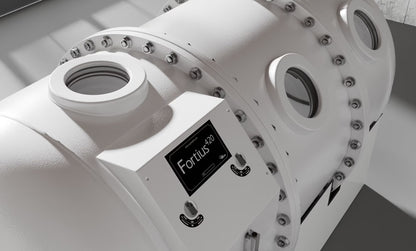

WINDOWS & FLANGES:

Our vividly clear, multiple viewing windows are exceptionally strong and illuminate the interior of the chamber with room light. All windows are constructed using a single-mold design to promote remarkable safety and the seal’s durability throughout years of treatments. The flanges on our chambers are double reinforced for uncompromising longevity and peace of mind.

INTERNAL FRAME:

Our steel frames are powder coated using non-toxic, food grade finish. The frame maintains the integrity and shape of the chamber when deflated, providing added convenience when entering and exiting the chamber.

SEALING:

All chambers in our portable line are expertly sealed utilizing cutting-edge dielectric sealing technology. No chemicals or glues are ever used to seal our chambers.

The OxyHealth Difference

Over 15 Thousand Chambers Provided:

With over 15,000 chambers currently in use, more than all other chamber providers combined, OxyHealth is the global leader in the hyperbaric community. We offer a variety of sizes within our chamber line that meet the needs of every practice, clinic or home. OxyHealth has remained at the forefront of the hyperbaric revolution by making it easier than ever for physicians and patients to obtain their own personal hyperbaric chamber. We are dedicated to, “Making hyperbarics come to you”.

OxyHealth chambers are manufactured in the USA in accordance to regulations and codes of the following



Learn More

Oxyhealth Vitaeris 320 HBOT Chamber: Everything You Need to Know!

Anti-Aging: OxyHealth’s Hyperbaric Oxygen Therapy Can Repair Telomeres

OxyHealth — The Best in Hyperbaric Oxygen Therapy (HBOT)



Optional Upgrades

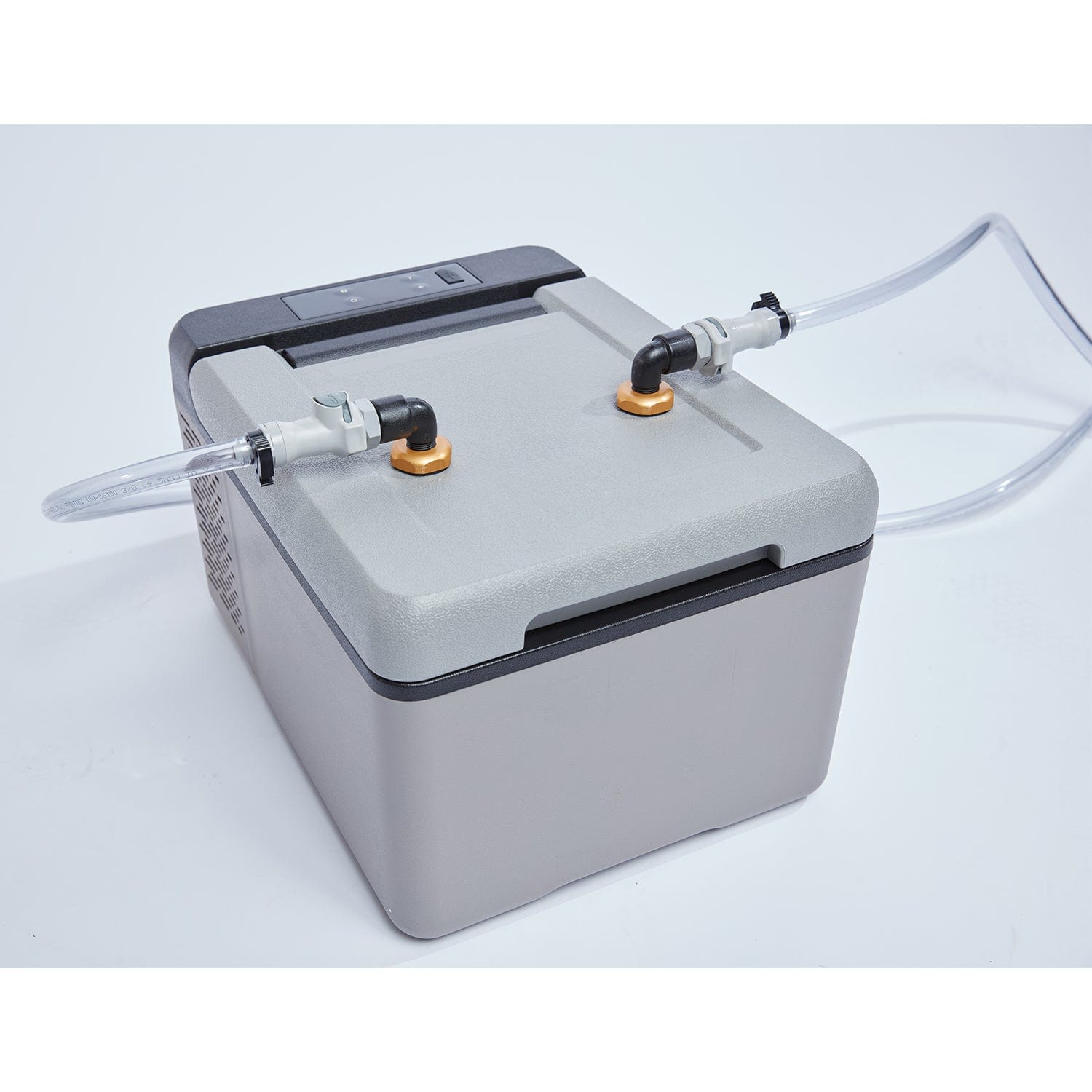

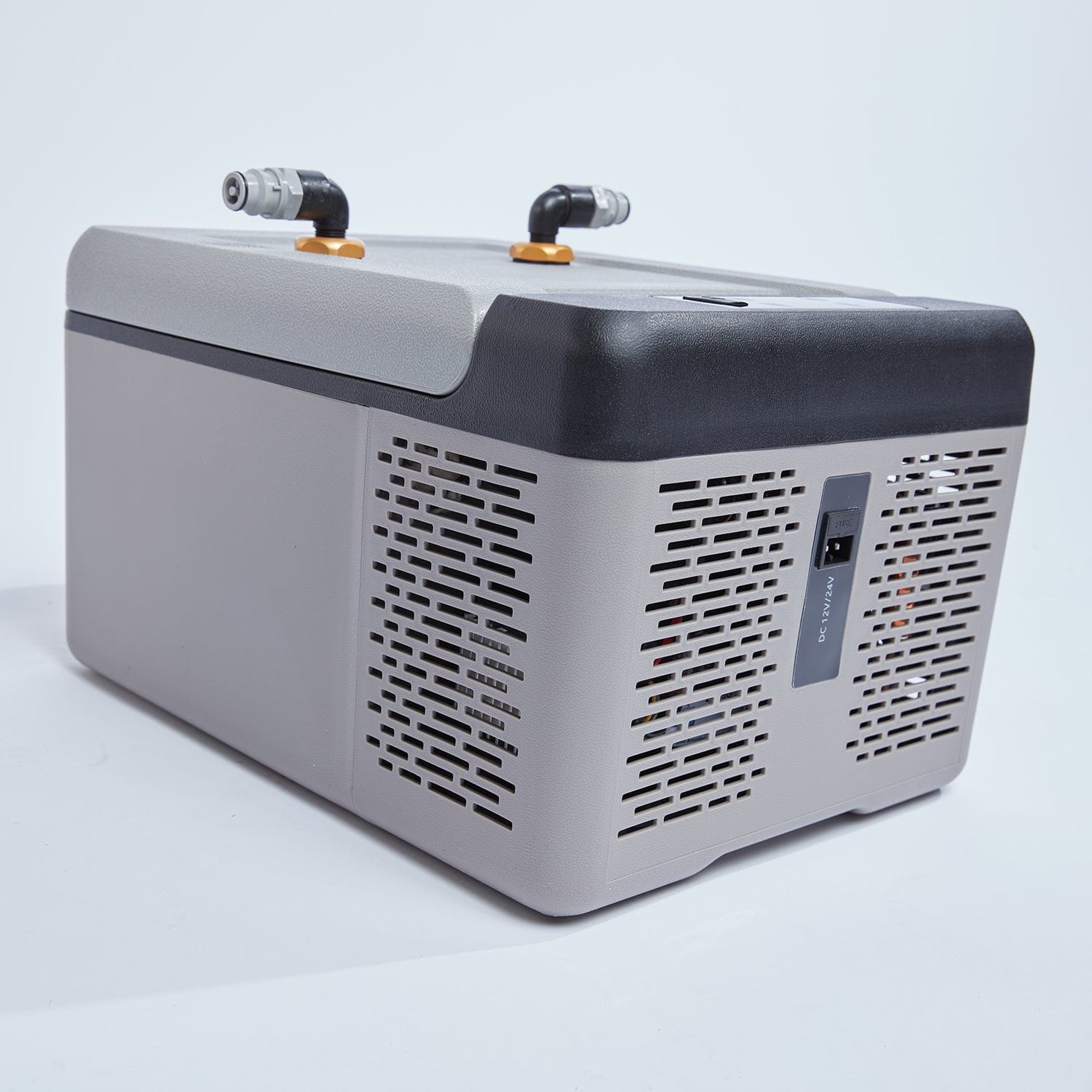

OxyCool Cooler Box

• Effectively reduces the internal temperature by 15 degrees F

• Plug and play into your Oxyhealth chamber

Oxy Cool Manual

---

Oxygen Requirements & Configuration

For 2 ATA protocols, two 10 LPM oxygen concentrators are typically required. In some cases, individual needs may require increasing pressure up to 2.2 ATA, which is why we recommend adding the O₂ Boost for optimal performance.

For 3 ATA protocols, a third 10 LPM concentrator is required along with the O₂ Boost, bringing total oxygen flow to 30 LPM.

We work directly with OxyHealth Hyperbaric Chambers and Oxidation Technologies to ensure a seamless ordering, setup, and ongoing support process.

---

Oxygen Concentrator Options

Home Use

For home environments, we typically recommend the Pro-10 Oxygen Concentrator. It offers an excellent balance of performance and value and is well-suited for residential use in controlled, low-impact settings.
 Learn more about the Pro-10 below.

Industrial & Clinical Use

For clinical, industrial, or higher-demand environments, we recommend the MAX-10 Oxygen Concentrator. Its rugged design and built-in air dryer make it ideal for continuous operation and long-term reliability. The MAX-10 is most commonly paired with our O₂ Pressure Boost for hyperbaric chamber use.
 Learn more about the MAX-10 below.

---

TOX-MP Line — Self-Contained Systems for Larger Clinics

For clinics seeking a plug-and-play, self-contained solution, we offer the TOX-MP line. These systems integrate an oxygen concentrator, pump, and pressure booster into a single cabinet, delivering up to 50 PSI for continuous operation without pump shutdowns.

●      TOX-40: Designed for 2 ATA

●      TOX-60: Designed for 3 ATA

Each unit includes a built-in relief valve to maintain consistent pressure and prevent spikes.

Cabinet & Installation Options

●      Mobile square cabinet with wheels

●      Wall-mounted stacked configuration

●      Optional stainless-steel finish for a clean, professional look

Vent plumbing options are available for customers looking to reduce heat and noise. For cabinet and installation options our Airpuria team is happy to assist with configuration and planning. Please contact our team today.

---

Oxygen Monitoring

For customers interested in tracking oxygen purity during treatments, the OXM-100H provides a clear, easy-to-read display. It can also be modified to send output signals for data logging and remote monitoring, making it ideal for clinical and research environments.



---

Pro-10 Concentrator

4.2 - 21 SCFH (2-10 LPM) oxygen production @ 18 PSI

The standard Pro-10 arrives with 120V power.

Conceived to provide high quality oxygen generation by integrating proven design concepts with the insight gained from over 30 years of producing superior oxygen concentrators, the Pro Series of Oxygen Concentrators aims to exceed the needs and demands of the Non-Medical realm of oxygen usage. A reimagined, compact, and highly mobile machine, this family demonstrates that it can stand and deliver a high-quality concentration of Oxygen in an affordable yet sleek layout. As opposed to the Pro-5 Oxygen Concentrator, the Pro-10 has an hour meter that can be found directly behind the black foam mesh filter. With the Pro-10 being a larger unit, changing the location of the hour meter ensures a significantly lowered risk of cracks developing.

Features:

• 4 recessed caster-style wheels, handle at the top of cabinet for easy movement between locations.

• Lighweight/Tough Thermoplastic

• Designed for Easy, Low-Maintenance Service

• Safety Alarm

Replacement Filter:

Pro-Series Cartridge Filter filter should be replaced annually.



Oxygen Pressure Boost Option:

Do you want to use an oxygen concentrator to supply your new hard shell hyperbaric chamber, but can't seem to keep the flow up when the pressure increases?  The standard 10 LPM oxygen concentrator may be rated to produce up to 20 psi, but when used to supply oxygen to hard shell hyperbaric chambers, the flow dwindles and will stop before getting there.  On top of the pressure within the chamber, the concentrator needs to overcome check valves as well, and there just is not enough pressure available.  A properly sized boost compressor can solve this problem and allow any oxygen concentrators you have available to provide the pressure you need. This boost compressor is a good option if you have a number of concentrators that are not doing the job of getting oxygen into your chamber.  The O2 Boost comes with DISS fittings that are used with supplying hyperbaric chambers.

Product Characteristics:

Performance Data: Product Flow Oxygen Delivery Pressure	2.0-10.0 Liters per Minute (LPM) 18.0 PSI
Product Concentration	Up to 95%
Dimensions (WxDxH)	15.5 x 15.6 x 27.8 inches (39.4 x 39.6 x 70.6 cm)
Weight	54.5 (lbs.)/24.7 (kg)
Physical Connections Product Gas Outlet
Ambient Operating Conditions	Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements. Temps should remain between 41°F (5°C) and 104°F (40°C)  (Outside of these temperatures still allows for purified Oxygen production, but will lower the shelf life and quality of production.) Note - if the environment gets above 95 deg F and standing water is present on nearby surfaces or floor, provision must be made to remove excess moisture from the air.
Control Power Requirements (Single Phase)



Typical Applications:

Manufacturing

- Glass Work/Blowing

- Brazing/Sodering/Jewelry

- Thermal/Chemical Oxidation

Environmental

- Ozone (Generator) Feed Gas

- Waste/Water Treatment

- Environmental Remediation

Additional

- Fish Farming

- Aquaponics

- Hydroponics

What is Pressure Swing Adsorption (PSA):

Clean, dry compressed air is fed into the first molecular sieve bed. Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

Downloads:

Pro-Series Brochure

Pro-Series Manual



More Information

Manufacturer	Misc
Listing Description	4.2-21 SCFH @ 18 PSI
Nominal Gas Flow Rate	2.0-10.0 LPM
Operating Pressure	18 PSI
Max Pressure	18 PSI
Operational RH Range	0-85%
Operational Temperature Range	35-95 deg F
Power Requirements	500W @ 155V/60H or 600W @ 230V/50H
Lead Time	2 weeks
Warranty	1 Year
Country of Origin	USA
Unit Features	- 4.2 - 21 SCFH (2-10 LPM) oxygen production @ 18 PSI - Lightweight with tough Thermoplastic - 4 caster-style wheels with a handle for easy movement - 95% Oxygen Concentration
Description	Turnkey unit with built-in compressor





---



O2 Pressure Boost

Boost oxygen pressure from standard packaged Oxygen Concentrator to 50 PSI.

Accommodates oxygen input flow-rates from 10-30 LPM and will boost up to 50 PSI

Boost oxygen pressure from standard packaged Oxygen Concentrator to 50 PSI.

Accommodates oxygen input flow-rates from 10-30 LPM and will boost up to 50 PSI

The O2 Pressure Boost is designed to boost oxygen pressure from standard packaged oxygen concentrators to higher pressures.  No oxygen storage tanks, or ancillary equipment required.  Simply plug the O2 Pressure Boost into 120 VAC electrical power, hook up your oxygen concentrator tubing, and increase oxygen pressure up to 50 PSI for your higher-pressure applications.


Features:

• Maintains oxygen flow of your oxygen concentrators at up to 50 PSI
• Accomodates oxygen input flow-rates from 10-30 LPM
• Panel mounted oxygen flow-meter to indicate oxygen flow
• Panel mounted pressure gauge indicates pre-boost oxygen pressure
• Panel mounted output pressure gauge indicates the boosted pressure to the point of use
• Oxygen pressure regulators allow for oxygen pressure regulation on-site to match the required application
• Requires only 120 VAC electrical power
• 3/8" Female NPT inlet/outlet fittings for oxygen gas connections

Note: The O2 Pressure Boost can be set-up for higher oxygen pressures than 50 PSI upon request.  Please contact our office for higher pressure application and requirements.


Below is a picture of the O2 Pressure Boost being fed with three 10 LPM oxygen concentrators.  The concentrators supply a total of 30 LPM oxygen to the O2 Pressure Boost at a pressure of 5 PSI.  The O2 Pressure Boost increases the oxygen pressure to a pressure, up to 50 PSI to be used in the customers specific application.



Common Applications:

• Nanobubble generation
• Glass blowing torches
• Veterinary clinics
• Hyperbaric oxygen (HBOT)
• Biogas
• Or any application where higher pressure oxygen is requied



Packaged Oxygen Concentrators:

Oxidation Technologies also manufactures packaged high-pressure oxygen concentrators.  This simplifies operation and long-term maintenance along with providing a smaller footprint.



Downloads:

- O2 Pressure Boost Manual



O2 Pressure Boost Video:

More Information

Manufacturer	Oxidation Technologies
Listing Description	O2 Pressure Boost only 50 PSI Pressure boost
Internal Compressor	Yes
O2 Delivery PSI	45+ PSI
Nominal Gas Flow Rate	10-30 LPM
Operating Pressure	10-50 PSI
Max Pressure	up to 50 PSI outlet pressure (higher pressures available upon request)
Dimensions (LxWxH)	10" deep x 16" long x 24" tall
Operational Temperature Range	35 - 95-deg F
Power Requirements	120 VAC
Lead Time	2-week lead time
Warranty	1 Year
Country of Origin	USA
Description	Boost oxygen pressure from any Oxygen Concentrator to 50 PSI





---

MAX-10

The Max-10 Oxygen Concentrator will produce 21 SCFH (10 LPM) oxygen with a purity of 90-93% (nominal) at pressures up to 19 PSI. Turnkey oxygen concentrator requires only ambient air and electrical power for operation.

Note: This unit comes with a standard electrical power of 120 VAC, 60 Hz standard. This will automatically be used if not stated otherwise.

The MAX Series Oxygen Generators are perfect for industrial and commercial applications and delivers 90-93% purified O2.  Max oxygen flow of 21 SCFH (10 LPM) at pressures up to 19 PSI.

Built in a lightweight turkey enclosure with an intetrated oil-less air compressor.  Only ambient air and electrical power are required for operation.  Produce oxygen at home and eliminate the oxygen cylinders forever!

The internal oil-less air compressor sits on 2 fans that help keep the operating temperature inside the box low.  A filtered air intake on the front draws in fresh air for cooling while keeping dust and debris to a miniumum.

Note - if the environment gets above 95 deg F and standing water is present on nearby surfaces or floor, provision must be made to remove excess moisture from the air.



Features:

• Self-Contained turnkey unit
• Lighweight Aluminum Enclosure - Provides simple and easy access for maintenance.  Individual panels are removed with Phillips head screws.
• Advanced Engineering
• Low O2 purity alert - Built-in oxygen purity meter measures oxygen purity in real-time.  An audible alarm, and indicator light alert of oxygen purities below 80%.
• Moisture trap - A unique feature of the MAX-series oxygen concentrators is an internal moisture separator installed on the compressed air line after the oil-less air compressor.  This feature is standard and available only on the MAX-series oxygen concentrators.  This allows the sieve beds on the oxygen concentrator to last longer with lower long-term maintenance.
• Oxygen Pressure Boost Option - Do you want to use an oxygen concentrator to supply your new hard shell hyperbaric chamber, but can't seem to keep the flow up when the pressure increases?  The standard 10 LPM oxygen concentrator may be rated to produce up to 20 psi, but when used to supply oxygen to hard shell hyperbaric chambers, the flow dwindles and will stop before getting there.  On top of the pressure within the chamber, the concentrator needs to overcome check valves as well, and there just is not enough pressure available.  A properly sized boost compressor can solve this problem and allow any oxygen concentrators you have available to provide the pressure you need. This boost compressor is a good option if you have a number of concentrators that are not doing the job of getting oxygen into your chamber.  The O2 Boost comes with DISS fittings that are used with supplying hyperbaric chambers.



Maintenance:

Maintenance of the MAX-series oxygen concentrator is simple rare and cost effective.  Expect a long-life of the MAX oxygen concentrator if simple maintenance is followed.

To see these parts and how they are replaced check out the video imbedded in this page below.

Inlet air filter- Attached to the oil-less air compressor to filter incoming air.  This filter should be replaced as needed (when dirty).  check monthly in dirty/dusty environments, check quarterly in normal clean environments.

Sieve beds- House molecular sieve material that separates the oxygen from the nitrogen.  This is replaceable as a full unit. This should be replaced every 2-years in normal environments.

Air CompressorLow O2 purity alert - Built Should be rebuilt every 8,000 hours of use.  This can be rebuilt with a rebuild kit we offer, or a complete replacement compressor can be purchased very cost effectively.



Product Characteristics:

Performance Data: Product Flow Oxygen Delivery Pressure	21 SCFH 19 PSI
Product Concentration	Up to 95%
Dimensions (WxDxH)	22.6 x 10.5 x 26.8 inches (57.4 x 26.7 x 68.1 cm)
Weight	62 lbs (28.13 kg)
Connections	The MAX-10 oxygen concentrator comes with a 1/4" barb outlet connection
Tubing	There is a 3/8" push-in connector on the unit for 3/8" OD tubing, however it also comes with an adapter so that 1/4" ID tubing can be used.
Ambient Operating Conditions	Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements. Temps should remain between 40°F (4°C) and 112°F (44°C)  Note - if the environment gets above 95 deg F and standing water is present on nearby surfaces or floor, provision must be made to remove excess moisture from the air.



Typical Applications:

Manufacturing:

- Glass Work/Blowing

- Brazing/Sodering/Jewelry

- Thermal/Chemical Oxidation

Environmental:

- Ozone (Generator) Feed Gas

- Waste/Water Treatment

- Environmental Remediation

Additional:

- Fish Farming

- Aquaponics

- Hydroponics

What is Pressure Swing Adsorption (PSA):

Clean, dry compressed air is fed into the first molecular sieve bed.  Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

Max-10 Oxygen Concentrator Video:



Downloads:

User Guide



More Information:

Manufacturer	Misc
Listing Description	21 SCFH @ 19 PSI
Internal Compressor	Yes
Dimensions (LxWxH)	22.6 x 10.5 x 26.8 inches
Operational RH Range	0-85%
Operational Temperature Range	35-95 deg F
Power Requirements	120V/60 Hz or 230V/50Hz
Lead Time	In Stock
Warranty	1 Year
Country of Origin	USA
Description	Turnkey unit with built-in compressor





---



TOX-40MP

40 SCFH oxygen production at 50 PSI of delivery pressure. Nominal 90-93% oxygen purity.

The TOX-40MP is provided with built-in air compressors and requires only electrical power for operation.

Note: Standard power configuration is a L14-20P cord end for a 220v with neutral.  This will automatically be used if not stated otherwise in the electrical power options below:

The TOX-40MP oxygen concentrator provides oxygen pressures of 50 PSI continuously at an oxygen flow of 40 SCFH with a nominal oxygen purity of > 90%.

The TOX-40 MP is a turnkey unit with a built-in air compressor, boost compressor, and necessary buffer tanks to produce 40 SCFH of oxygen and boost to 50 PSI of delivery pressure for downstream applications.

Note - if the environment gets above 95 deg F and standing water is present on nearby surfaces or floor, provision must be made to remove excess moisture from the air.



Features:

Dependable:

The TOX-40MP is built to provide thousands of hours of continuous, reliable service.  Compressed air is filtered and cooled with an auto drain system to remove condensed moisture from the compressed air system.  This ensures longer life for the zeolite sieve material in the unit.

Rebuildable:

The greatest advantage of the TOX-40MP is the entire unit is rebuildable.  This unit will serve you for many years with only minimal maintenance.  The sieve beds are replaceable, or rebuildable, valves can be cleaned or replaced.  The TOX-40MP will serve in your application for as long as you choose to maintain it.

We offer each replacement part for the TOX-40MP, and keep each in stock.

Economical:

Oil-less air compressors are used to provide compressed air for the oxygen concentrator sieve beds and boost oxygen to 50 PSI.  These compressors run efficiently and consume less power than industrial oxygen concentrators that require 90 PSI of incoming air pressure for operation.

Due to the fact the TOX-40MP can be rebuilt or repaired this unit will never be completely replaced with new.  This saves costs long-term versus alternative models that cannot be rebuilt and are replaced when parts are worn or zeolite requires replacement.  The TOX-40MP is a very economical oxygen generator to operate over the long term.

Made in the USA:

The TOX-40 is manufactured, assembled, and tested entirely in the USA.

Compressed Air:

The TOX-40MP can be equipped with internal air compressors.  Small oil-less compressors are provided to provide compressed air required for oxygen production.  Two small 1/3 hp compressors are provided.  Compressors are reliable and require a rebuild after 8,000 hours of operation.   A final boost compressor is used to boost oxygen pressures from the standard 20 PSI to 50 PSI for higher pressure applications.

The internal compressed air option also includes air coolers and a 2-stage air filtration system to maintain great quality compressed air for the oxygen concentrator modules. Air coolers remove heat from the compressed air prior to filtration with 2-state filters with moisture drains to remove condensed moisture from the compressed air. By drying and filtering the compressed air the oxygen concentrator modules will last longer and provide higher purity of oxygen in more humid environments. This feature is unique to the TOX-Series and not available in competitor models.



Features:

     -Economical - Produce oxygen on-site rather than purchase and re-fill oxygen bottles

     -Reliable operation - Built-in air filtration system and air cooler to remove dust, and moisture from air prior to the oxygen concentrator increasing the long-term reliability of the oxygen concentrator

     -Turnkey operation - only electrical power is required for operation

     -Oxygen purity alarm - built-in oxygen purity alarm will sound an alarm and illuminate a light  to indicate oxygen purity is below 80%

     -Rebuildable - easy to rebuild system with all replaceable parts and components

     -Automated - system is automated and will maintain oxygen pressure in the tank automatically.  System will sit in stand-by but ready for operation when pressure in the tank is above 90 PSI

     -Simple power requirements - Standard power configuration is a L14-20P cord end for a 220v with neutral. 220 VAC, 50 Hz power also available upon request.



What is Pressure Swing Adsorption (PSA):

Clean, dry compressed air is fed into the first molecular sieve bed.  Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

More Information:

Manufacturer	Oxidation Technologies
Listing Description	40 SCFH @ 50 PSI
Internal Compressor	Yes
O2 Delivery PSI	45+ PSI
Nominal Gas Flow Rate	40 SCFH
Operating Pressure	50 PSI
Max Pressure	50 PSI
Gas Connections	3/8" Female NPT
Dimensions (LxWxH)	36" long x 30" tall x 24" deep
Operational RH Range	0-85%
Operational Temperature Range	35-95 deg F
Power Requirements	220VAC, 60 Hz Standard, 20 amps (standard system, options may increase this value)
Lead Time	2-weeks standard
Warranty	1 Year
Country of Origin	USA
Oxygen Production	25 - 100 SCFH
Description	Medium Pressure Oxygen oxygen generator with built-in compressor Up to 50 PSI oxygen delivery pressure.





---



TOX-60MP



60 SCFH oxygen production at 50 PSI of delivery pressure. Nominal 90-93% oxygen purity.

The TOX-60MP is provided with built-in air compressors and requires only electrical power for operation.

Note: Standard power configuration is a L14-20P cord end for a 220v with neutral.  This will automatically be used if not stated otherwise in the electrical power options below:

The TOX-60 MP oxygen concentrator provides oxygen pressures of 50 PSI continuously at an oxygen flow of 60 SCFH with a nominal oxygen purity of > 90%.

The TOX-60 MP is a turnkey unit with a built-in air compressor, boost compressor, and necessary buffer tanks to produce 60 SCFH of oxygen and boost to 50 PSI of delivery pressure for downstream applications.

Note - if the environment gets above 95 deg F and standing water is present on nearby surfaces or floor, provision must be made to remove excess moisture from the air.



Features:

Dependable:

The TOX-60MP is built to provide thousands of hours of continuous, reliable service.  Compressed air is filtered and cooled with an auto drain system to remove condensed moisture from the compressed air system.  This ensures longer life for the zeolite sieve material in the unit.

Rebuildable:

The greatest advantage of the TOX-60MP is the entire unit is rebuildable.  This unit will serve you for many years with only minimal maintenance.  The sieve beds are replaceable, or rebuildable, valves can be cleaned or replaced.  The TOX-60 will serve in your application for as long as you choose to maintain it.

We offer each replacement part for the TOX-60, and keep each in stock.

Economical:

Oil-less air compressors are used to provide compressed air for the oxygen concentrator sieve beds and boost oxygen to 50 PSI.  These compressors run efficiently and consume less power than industrial oxygen concentrators that require 90 PSI of incoming air pressure for operation.

Due to the fact the TOX-60MP can be rebuilt or repaired this unit will never be completely replaced with new.  This saves costs long-term versus alternative models that cannot be rebuilt and are replaced when parts are worn or zeolite requires replacement.  The TOX-60MP is a very economical oxygen generator to operate over the long term.

Made in the USA:

The TOX-60 is manufactured, assembled, and tested entirely in the USA.

Compressed Air:

The TOX-60MP can be equipped with internal air compressors.  Small oil-less compressors are provided to provide compressed air required for oxygen production.  Three small 1/3 hp compressors are provided.  Compressors are reliable and require a rebuild after 8,000 hours of operation.   A final boost compressor is used to boost oxygen pressures from the standard 20 PSI to 50 PSI for higher pressure applications.

The internal compressed air option also includes air coolers and a 2-stage air filtration system to maintain great quality compressed air for the oxygen concentrator modules. Air coolers remove heat from the compressed air prior to filtration with 2-state filters with moisture drains to remove condensed moisture from the compressed air. By drying and filtering the compressed air the oxygen concentrator modules will last longer and provide higher purity of oxygen in more humid environments. This feature is unique to the TOX-Series and not available in competitor models.



Features:

-Economical - Produce oxygen on-site rather than purchase and re-fill oxygen bottles

     -Reliable operation - Built-in air filtration system and air cooler to remove dust, and moisture from air prior to the oxygen concentrator increasing the long-term reliability of the oxygen concentrator

     -Turnkey operation - only electrical power is required for operation

     -Oxygen purity alarm - built-in oxygen purity alarm will sound an alarm and illuminate a light  to indicate oxygen purity is below 80%

     -Rebuildable - easy to rebuild system with all replaceable parts and components

     -Automated - system is automated and will maintain oxygen pressure in the tank automatically.  System will sit in stand-by but ready for operation when pressure in the tank is above 90 PSI

     -Simple power requirements - Standard power configuration is a L14-20P cord end for a 220v with neutral. 220 VAC, 50 Hz power also available upon request.



What is Pressure Swing Adsorption (PSA):

Clean, dry compressed air is fed into the first molecular sieve bed.  Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

More Information:

Manufacturer	Oxidation Technologies
Listing Description	60 SCFH @ 50 PSI
Internal Compressor	Yes
O2 Delivery PSI	45+ PSI
Nominal Gas Flow Rate	60 SCFH
Operating Pressure	50 PSI
Max Pressure	50 PSI
Gas Connections	3/8" Female NPT
Dimensions (LxWxH)	36" long x 30" tall x 24" deep
Operational RH Range	0-85%
Operational Temperature Range	35-95 deg F
Power Requirements	220 VAC, 60 Hz Standard, 20 amps (standard system, options may increase this value)
Lead Time	2-weeks standard
Warranty	1 Year
Country of Origin	USA
Oxygen Production	25 - 100 SCFH
Description	Medium Pressure Oxygen oxygen generator with built-in compressor Up to 50 PSI oxygen delivery pressure.





---



OXM-100H Oxygen Purity Meter

Fixed oxygen analyzer measures oxygen purity from 0-100%.

Perfect for verifying oxygen purity from your oxygen generator real-time.

The OXM-100H is designed to verify oxygen purity from your oxygen generator real-time from 0-100%.  Simply mount this unit next to your oxygen generator and plumb your oxygen to flow through this unit to verify the oxygen purity. This unit has indicator lights for the oxygen purity level and has relay alarms when the oxygen purity is low.

An oxygen flow of only 0.5 SCFH is required to measure oxygen purity.  A needle valve and flowmeter are built-in to regulate and indicate oxygen flow through the oxygen purity meter.

The principle of operation uses ultrasound technology to measure oxygen purity.  The speed of the ultrasound varies with the oxygen purity and temperature.  This unit measures oxygen purity by ultrasound transit time and corrects this value for temperature.  This allows a reliable and consistent oxygen purity measurement with no sensor to replace.

The most important factor in your ozone systems reliability is the feed-gas quality provided to your ozone generator.  If the oxygen purity is kept above 85%, and this is a clean, dry stream your ozone generator will require less maintenance and offer many years of reliable operation.  The cost of an inline oxygen monitor is a very reasonable insurance in your complete system, and may pay for itself many times over.



Specifications:

• Measure oxygen purity from 0-100%
• Integrated display, large LCD display with alarm for low oxygen purity
• Relay alarm for low oxygen purity set to 88%
• 4*--20 mA output standard
• Optional remote monitoring (wireless monitoring & data logging kit)
• Optional visual strobe light
• Optional audible alarm



Installation Diagrams:

The OXM-100H Oxygen Purity Meter is installed directly after the oxygen concentrator and requires a small flow of oxygen (0.5 SCFH) to flow through the unit to measure oxygen purity accurately real-time.



Installation:

The OXM-100H Oxygen Purity Meter is installed on a side-stream of oxygen flow.

Only 0.5 SCFH of oxygen is used to pass through the OXM-100H.  A needle valve is included with the OXM-100H to regulate oxygen flow through the unit.



Options:

Various optional equipment is available for the OXM-100H.  See details below for information.

Strobe Light:

An optional strobe light can be installed on the unit as a virtual indicator when oxygen purity is below 88% (custom set-points available).  The strobe will be integrated on the enclosure and be wired and ready for operation.

Audible Alarm:

An optional audible alarm can be installed on the unit to alert when oxygen purity is below 88% (custom set-points available).

Wireless Monitoring & Data Logging Kit

Use the Wireless Monitoring & Data logging Kit with your fixed mount monitor to connect it to the internet allowing access from anywhere. Receive Instant notifications with free text and email alerts. This is a great addition for your fixed mount gas detector.



Downloads:

OXM Oxygen Purity Meter Brochure

Oxygen Information



Video:

Video below describes the use of the OXM-100H oxygen purity meter



More Information

Manufacturer	Oxidation Technologies
Operating Pressure	1-10 PSI
Max Pressure	10 PSI
Gas Connections	1/4" barbed fittings
Dimensions (LxWxH)	7 wide x 3.5 deep x 3.5 tall
Power Requirements	120 Vac
Lead Time	4 days
Warranty	1 Year
Country of Origin	USA
Audible Alarm	Optional
Calibration	Annually
Sensor Life	2 Years
Range	0-100% (O2 Purity)
Unit Features	-Flows up to 127 SCFH -Pressure Up To 100 PSI -Integrated Display -Optional remote monitoring (wireless monitoring & data logging kit)
Sensor Range	0-100% (02 Purity)
Sensor Range	0-100% (O2 Purity)
Integrated Relays	Yes
