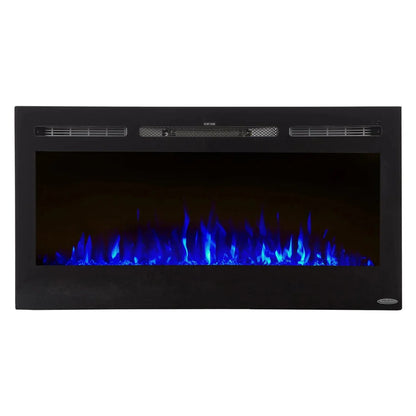

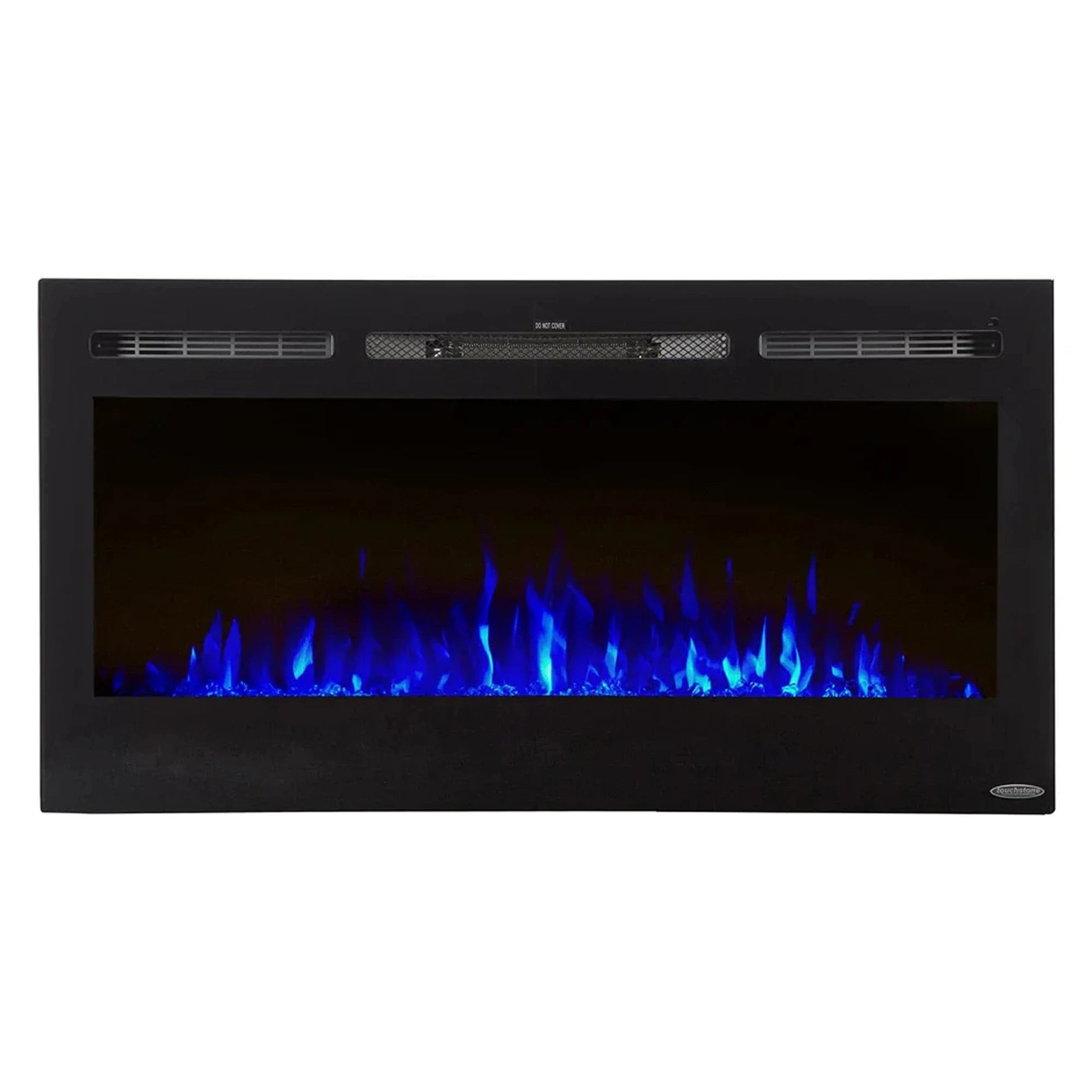

The Sideline 40" Recessed Black Electric Fireplace

Product Highlights

• Designed with front heating vent so that the unit can be flush mounted into wall
• Includes log set and crystal set
• Slim frame that features a large fireplace viewing area with life-like LED flames that is unrivaled by competitors
• Supplemental heat up to 400 square feet (5,000 BTUs)
• Can be plugged in or hardwired 120V
• Multi-colored flames allow you to customize your atmosphere


Overview

The Sideline® 40 Electric Fireplace by Touchstone is a 40 inch wide recessed electric fireplace, combining traditional style with smart-home features. Elevate your decor with the stunning flames and practicality of the Sideline® 40 electric fireplace. With a low-profile contemporary black frame, state of the art realistic flames, and smart home connectivity, it’s a practical and stylish addition to any home seeking an electric fireplace. Introducing an environmentally friendly option that is smokeless, mess-free option to a traditional wood-burning fireplace, ensuring a clean and odorless ambiance. Includes enhanced features like variable flame speed control and pulsating ember bed.

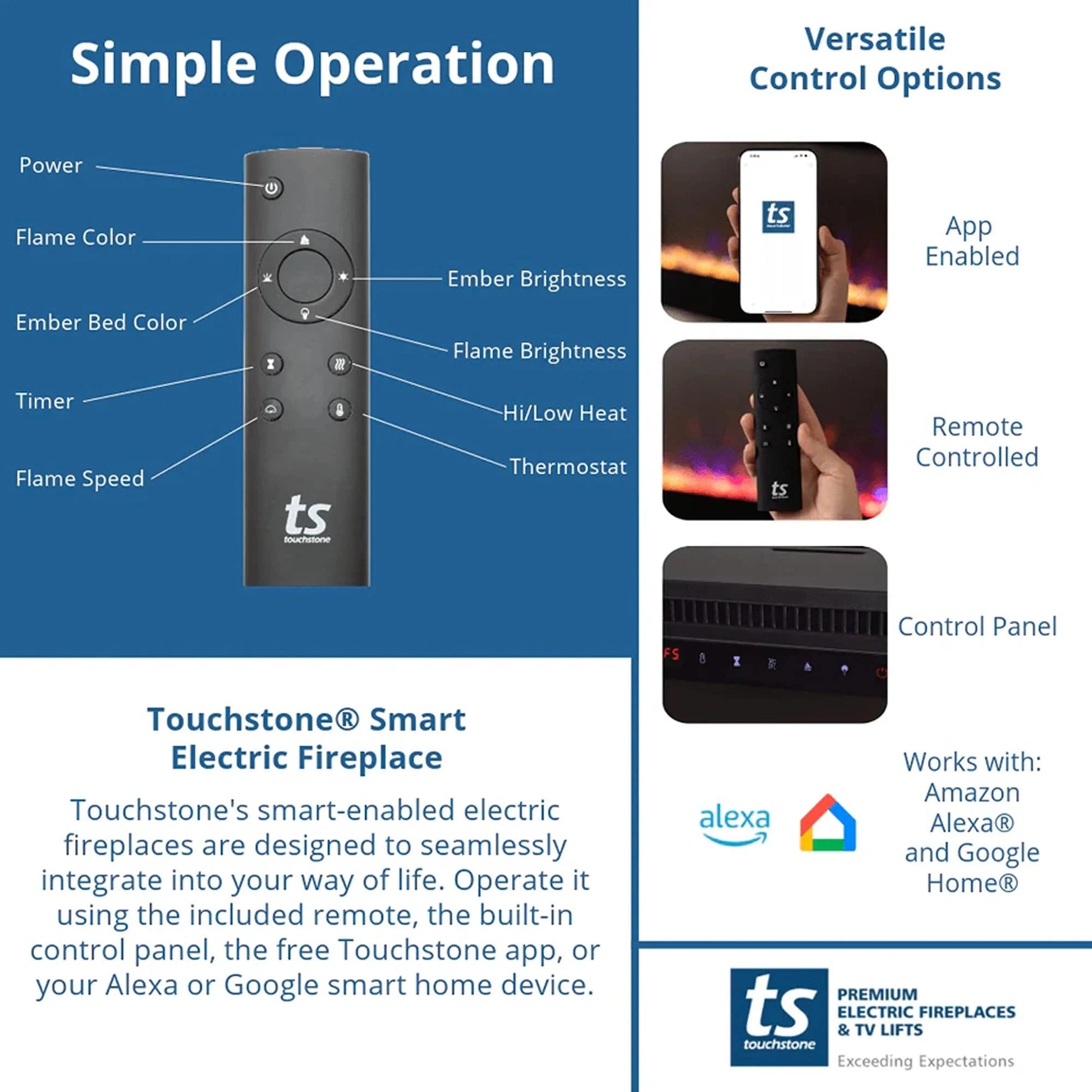

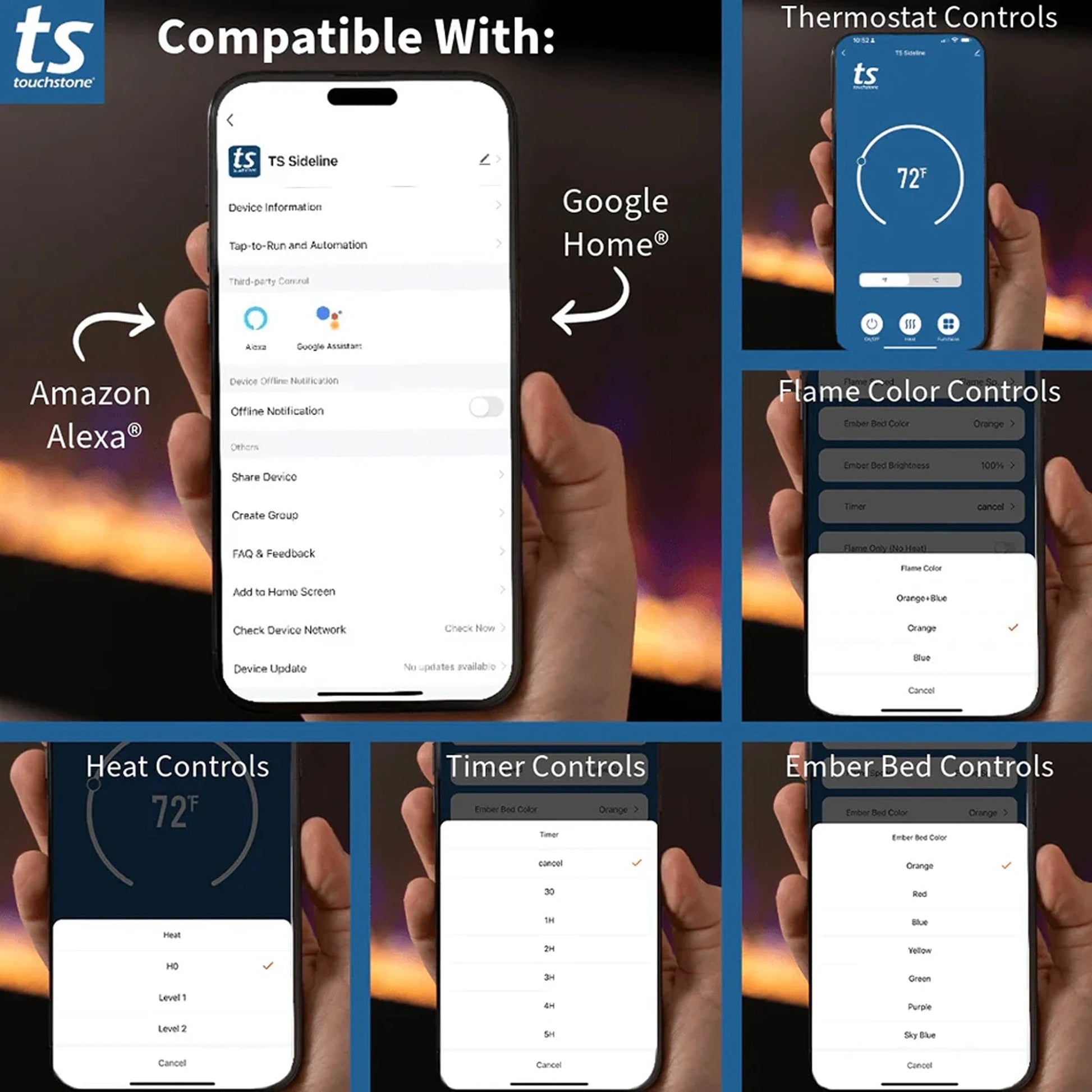

Wi-Fi Enabled, Compatible with Amazon Alexa® and Google Home®

Control the Sideline 40 Electric Fireplace from your lounge chair using the included remote control or Touchstone’s Smart mobile app. Connect it to compatible smart home devices through the app for added convenience.

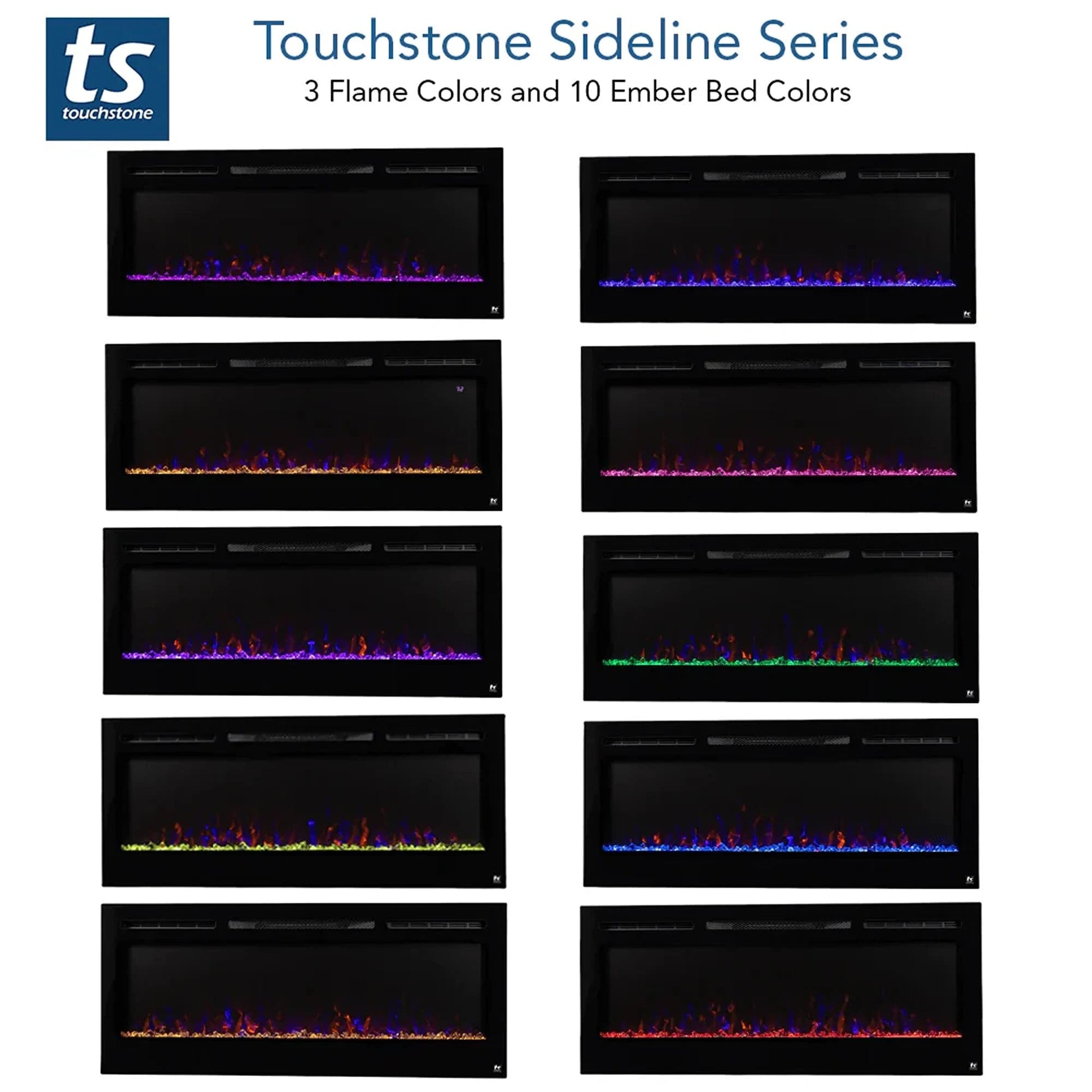

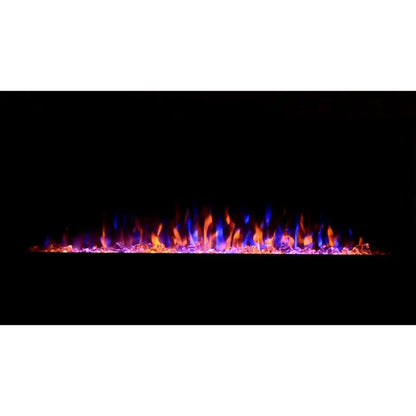

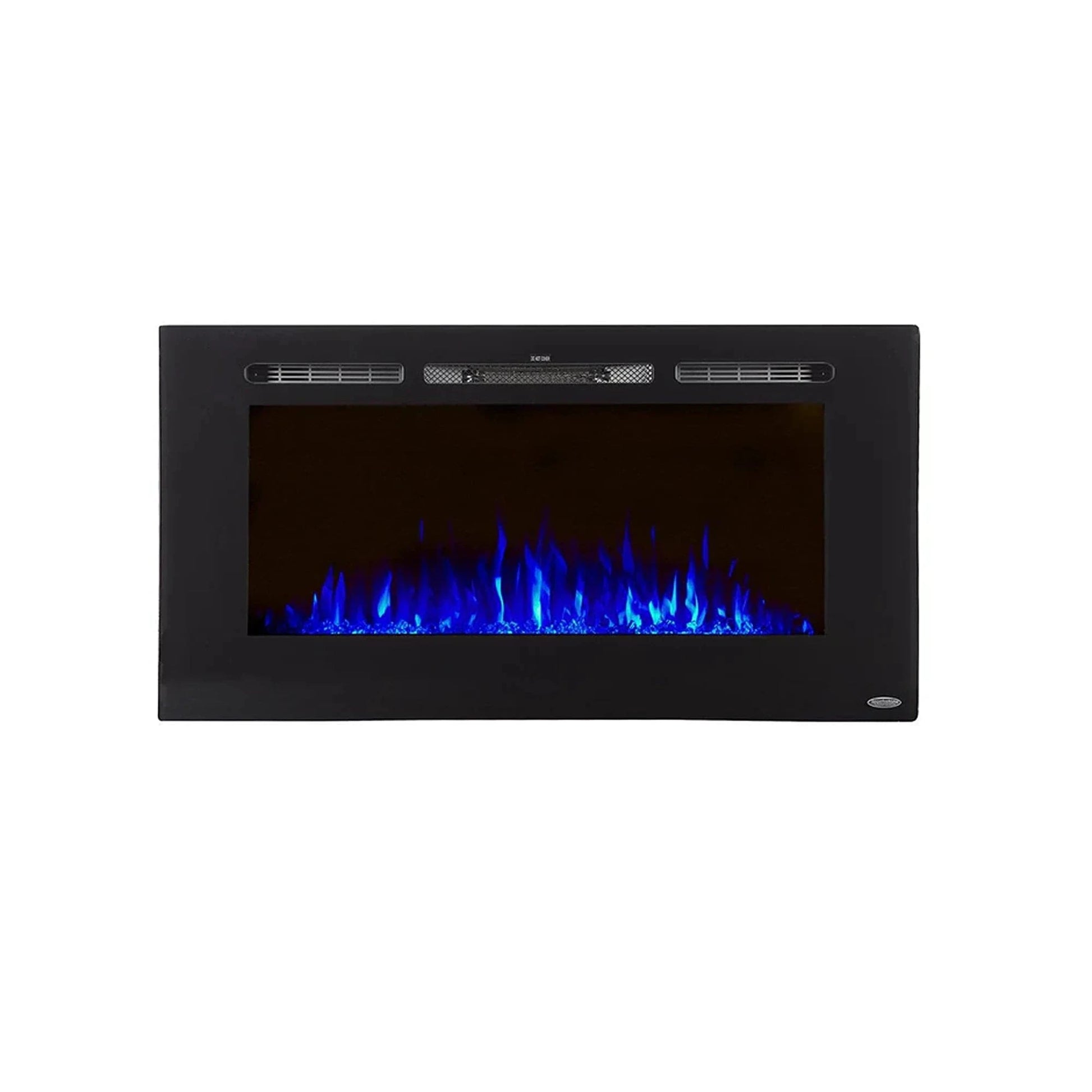

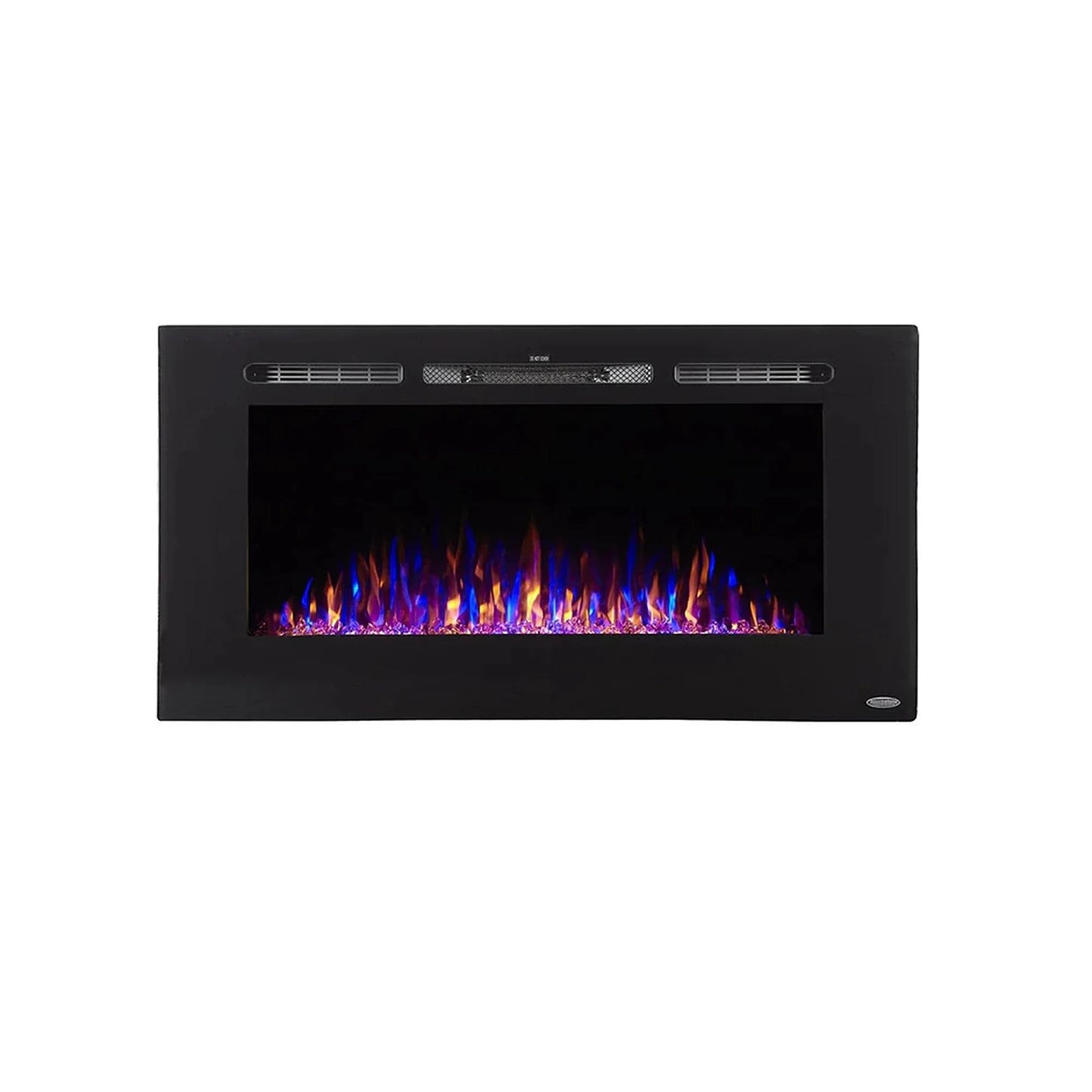

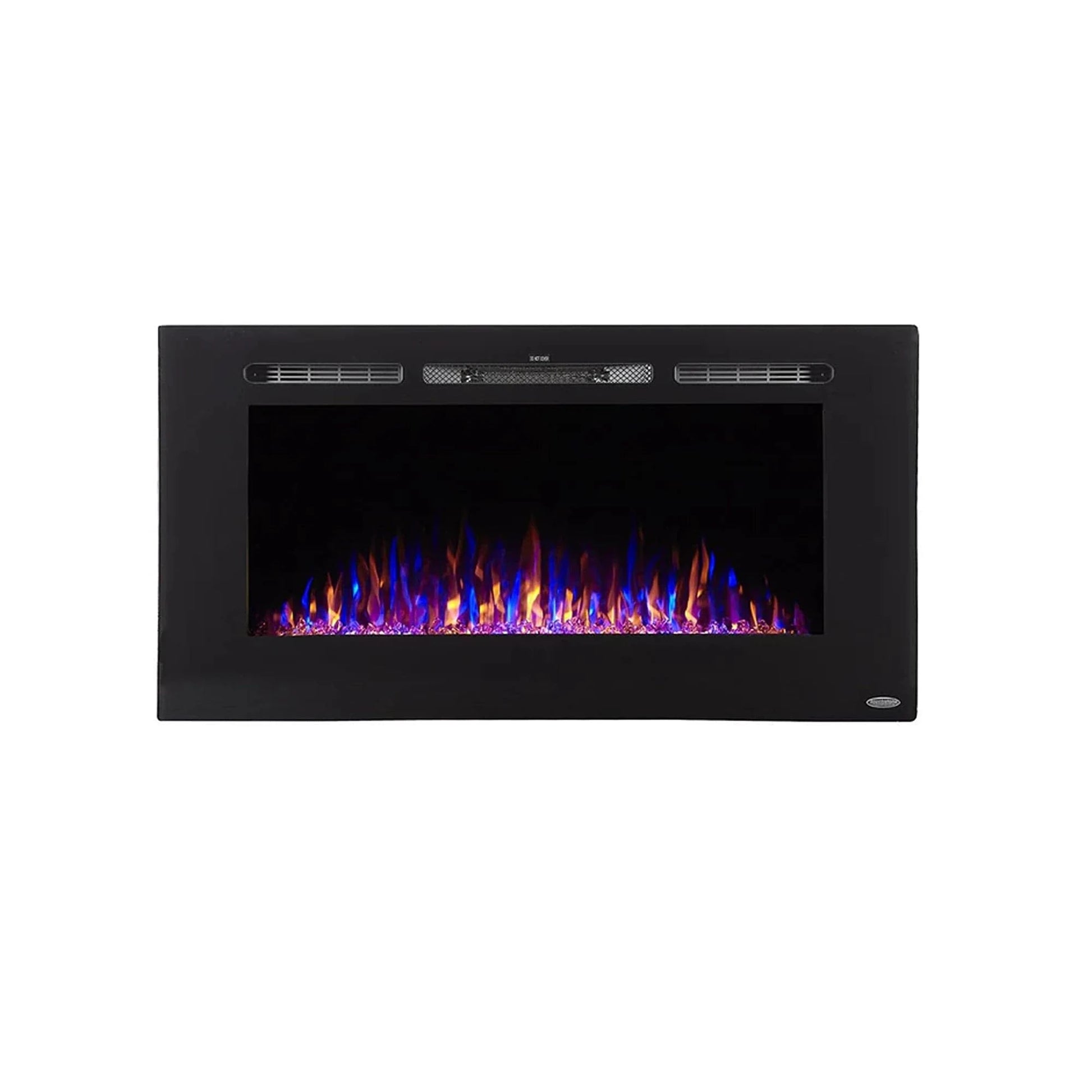

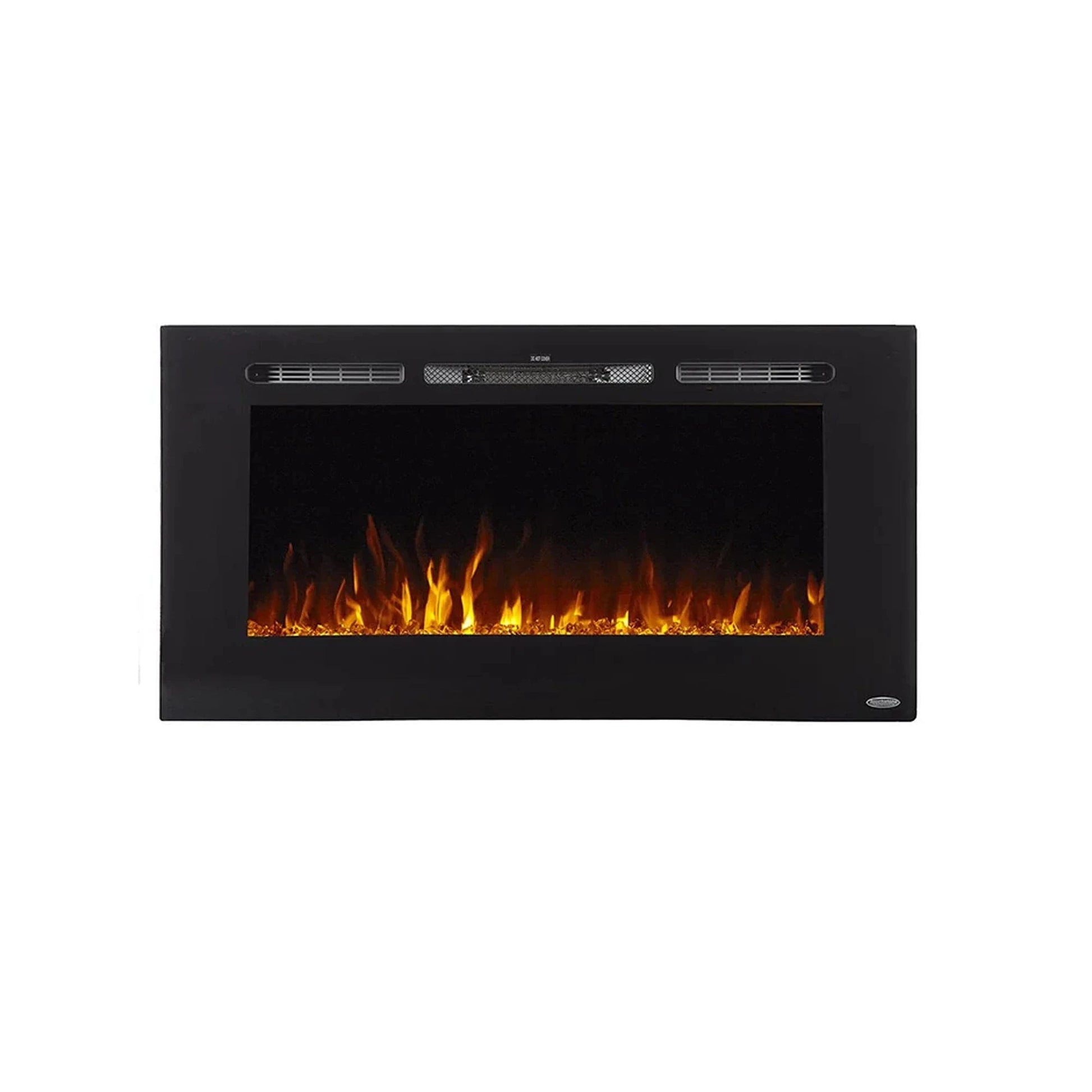

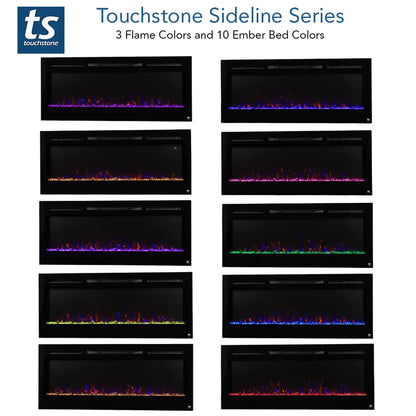

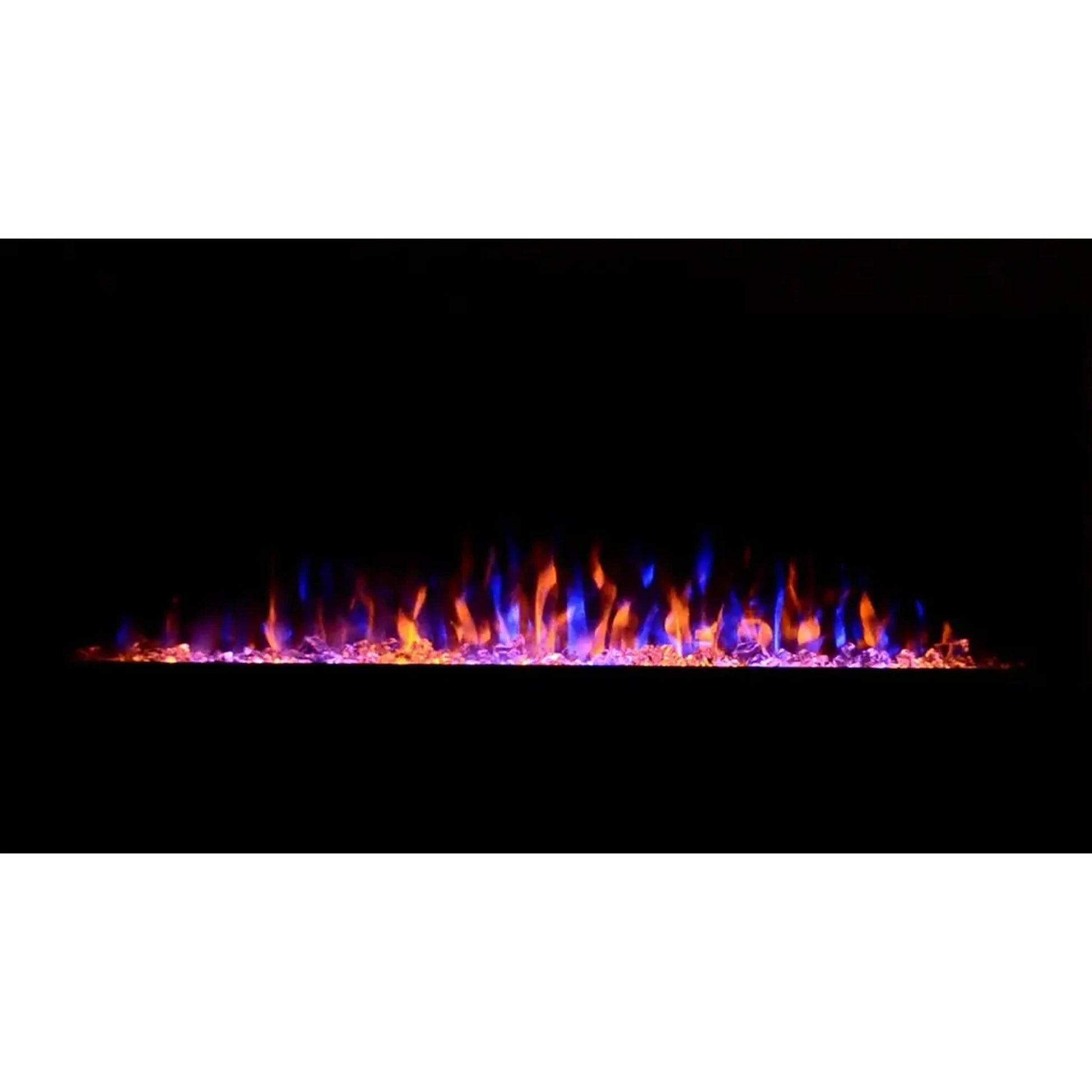

Realistic Flame with Multiple Colors

The Sideline Smart Electric Fireplace offers customization with three natural flame color options and five intensity settings. Enjoy the cozy ambiance of realistic flames in orange, blue, or blue-orange hues. The Sideline is equipped with 10-color ember bed options that operate separately from flames. The remote or control panel ensures convenient operation for your preferred lighting and heat levels.

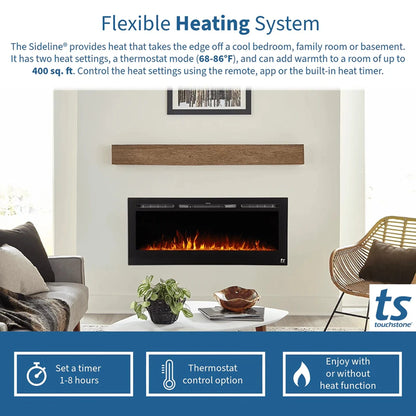

Heating Capability The built-in 5000 BTU heater adds supplemental warmth to your room, taking the edge off cool evening, with thermostat control and the option to operate without heat.

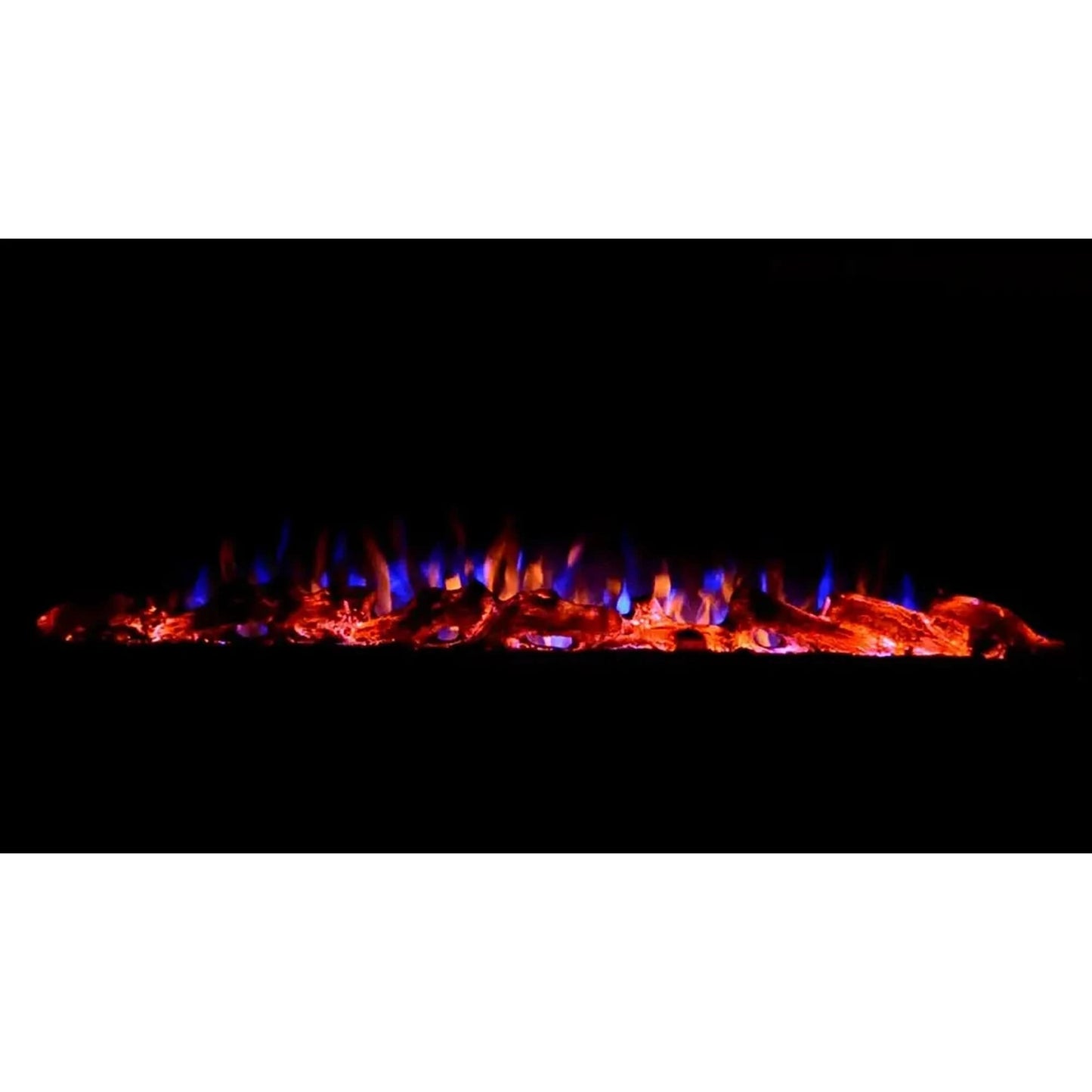

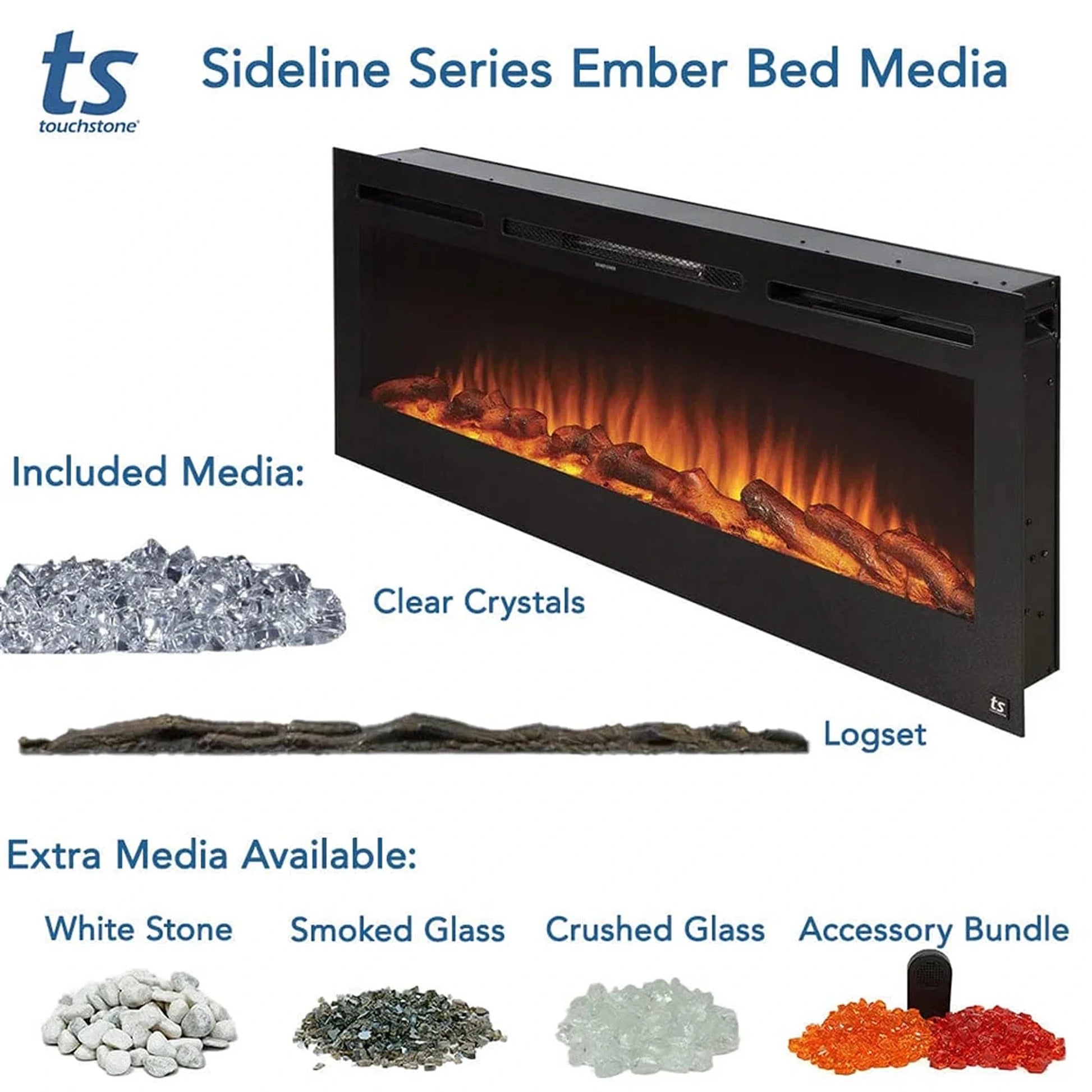

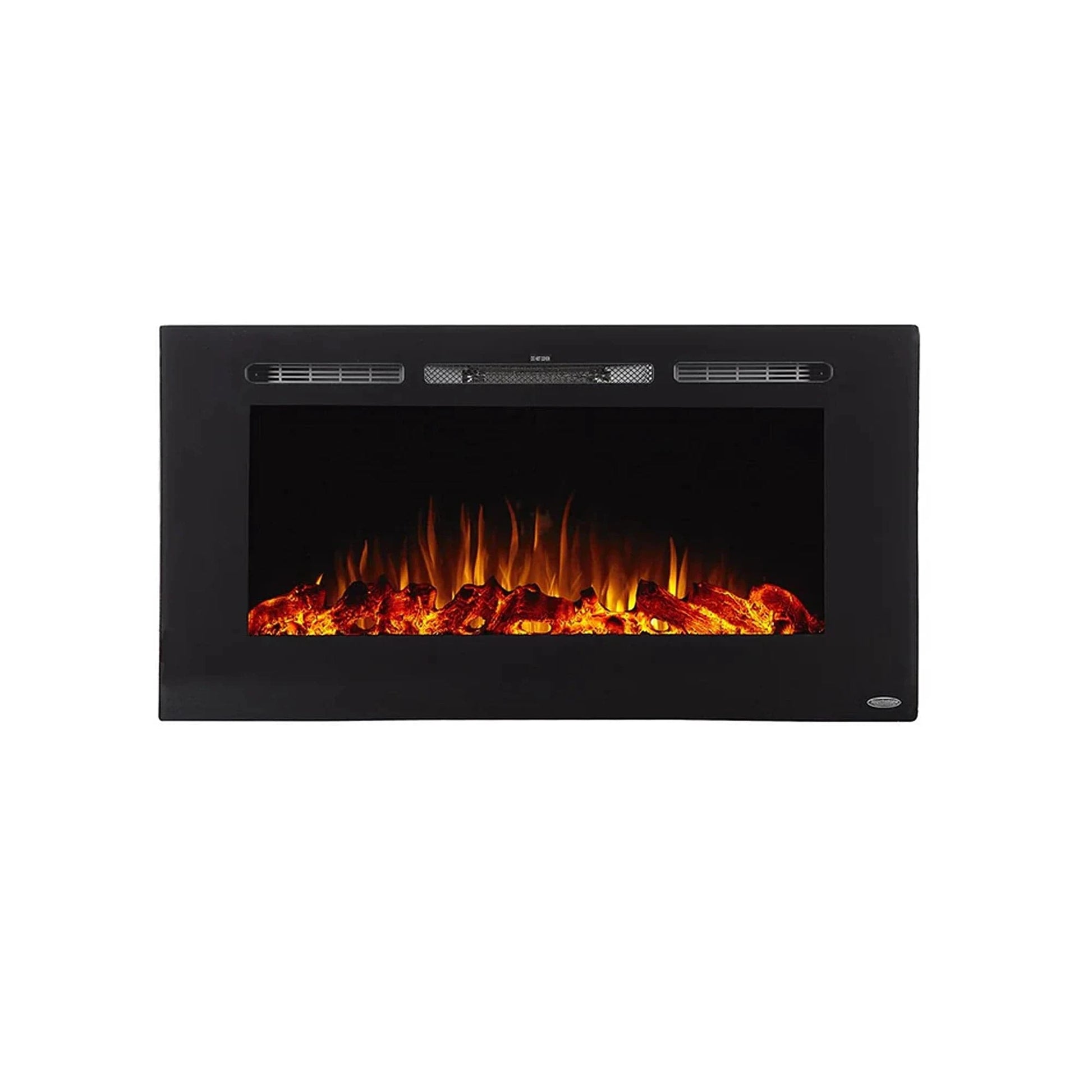

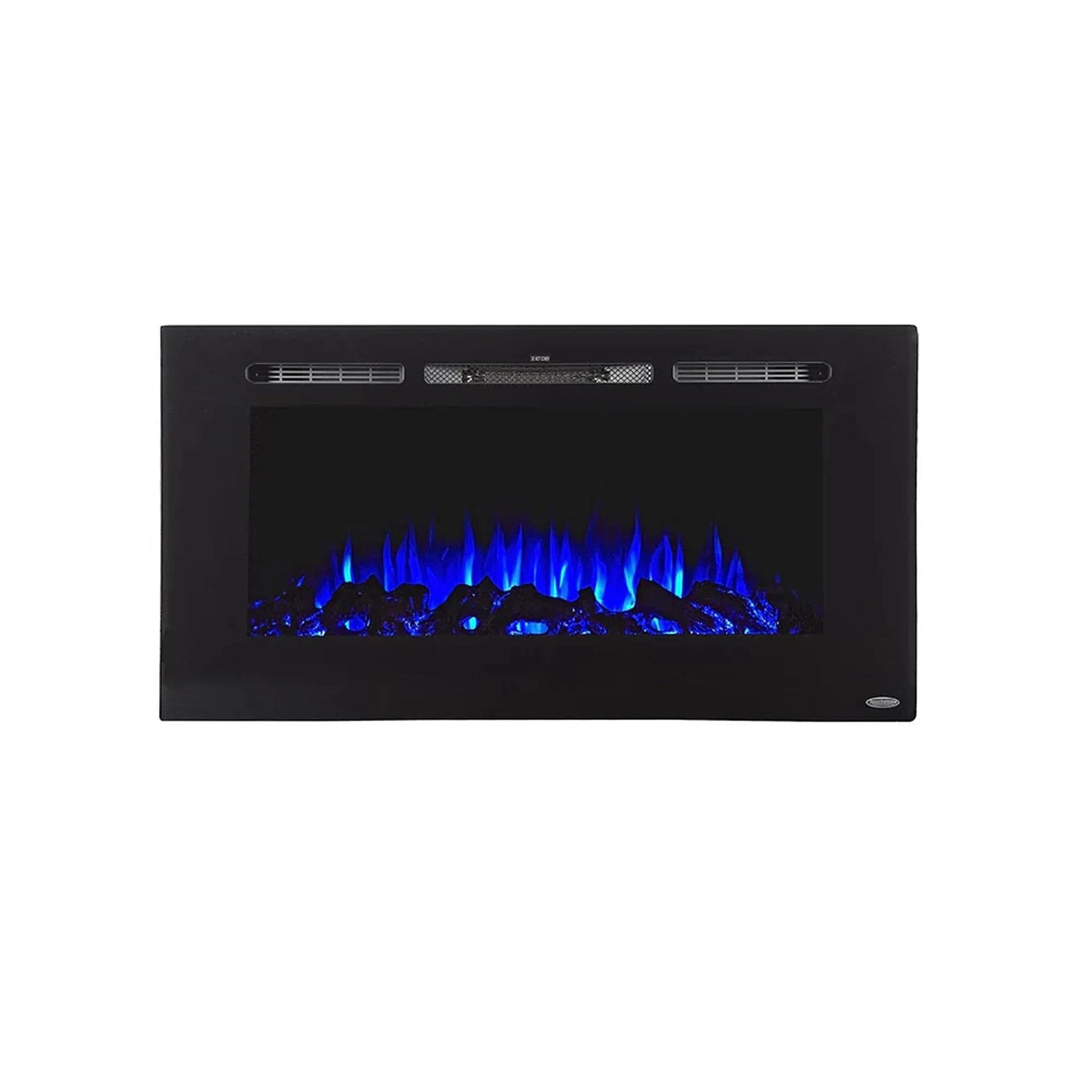

Faux Log and Glass Crystals

Customize the look with included glass crystals and faux log set for contemporary or traditional styles.

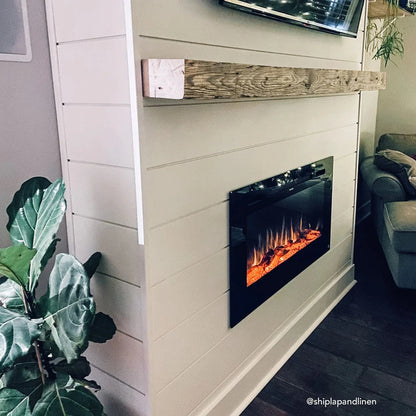

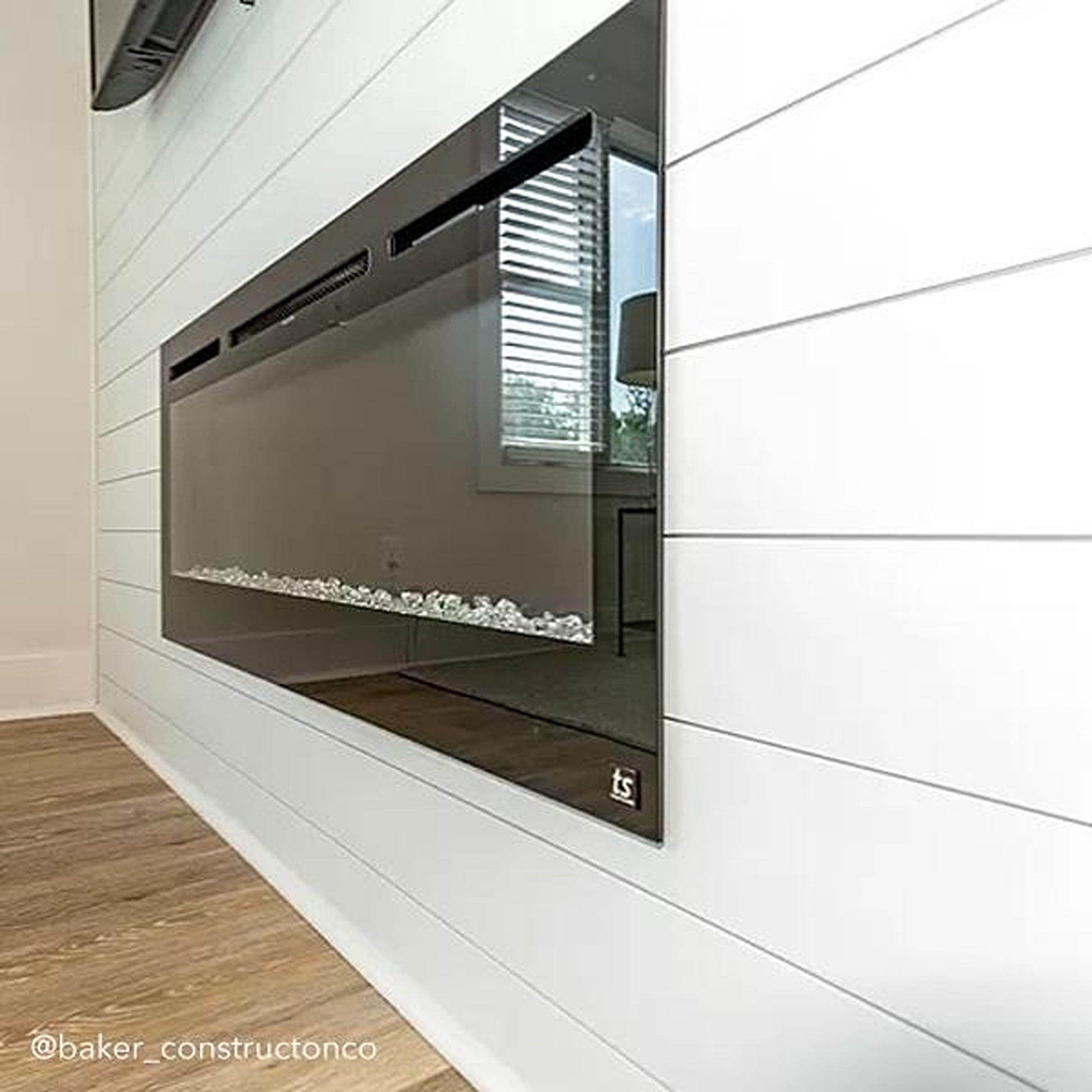

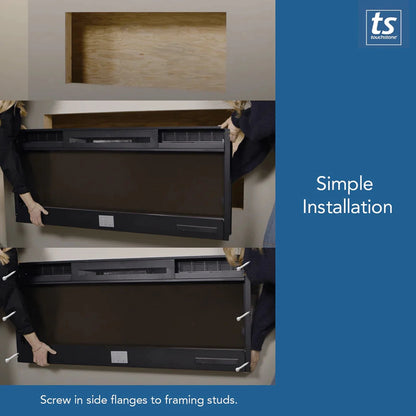

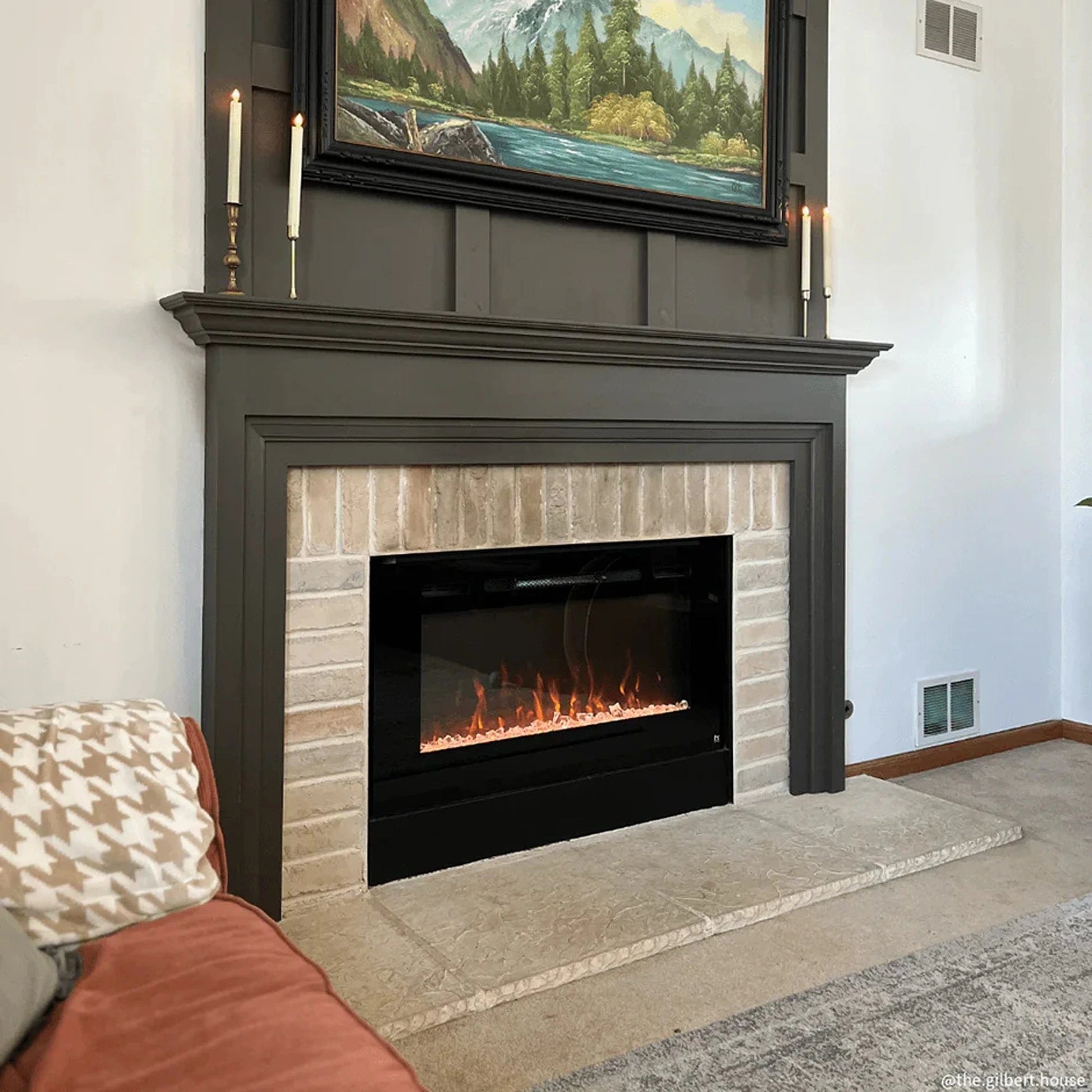

Mounting and Use

Easily install the Sideline® 40 as a recessed or wall-mounted fireplace, with recommended placement 8 inches below the ceiling or mounted flat screen TV. Mounting bracket and hardware included. We recommend placing the fireplace at least 6 inches from the floor.

Product Features

• 3 Flame color options and 5 level variable flame speed
• Pulsating 10-color ember bed
• WiFi App (Alexa and Google Certified)
• Thermostat with auto-off overheat protection
• Built-in timer mode for shut off in 30 minutes to 7.5 hours.
• Remote control for heat and flame setting (batteries not included)
• Flames no heat - heat no flames capability
• Designed for recessed mounting in wall


Specifications

• Frame Color: Black
• Fireplace Dimensions: 40 inches wide x 21 1/2 inches high x 5 1/2 inches deep
• Recessed Dimensions: 32 1/2 inches wide x 20 1/4 inches high x 5 1/4 inches deep
• Rough Opening Dimensions: 32 3/4 inches wide x 20 1/2 inches high x 5 3/4 inches deep
• Shipping Carton Dimensions: 43 inches wide x 28 in high x 10 inches deep
• Fire Dimensions: 31 inches wide x 12 inches tall
• Part number: 80027
• Heater type: Coil wire heater with blower
• Watts: 1,500
• BTU's: 5,118
• Room Coverage: 400 ft.
• Fireplace Weight: 39.9 pounds
• Shipping Weight: 48 pounds
• Voltage: 120v
• Amperes: 11 and up

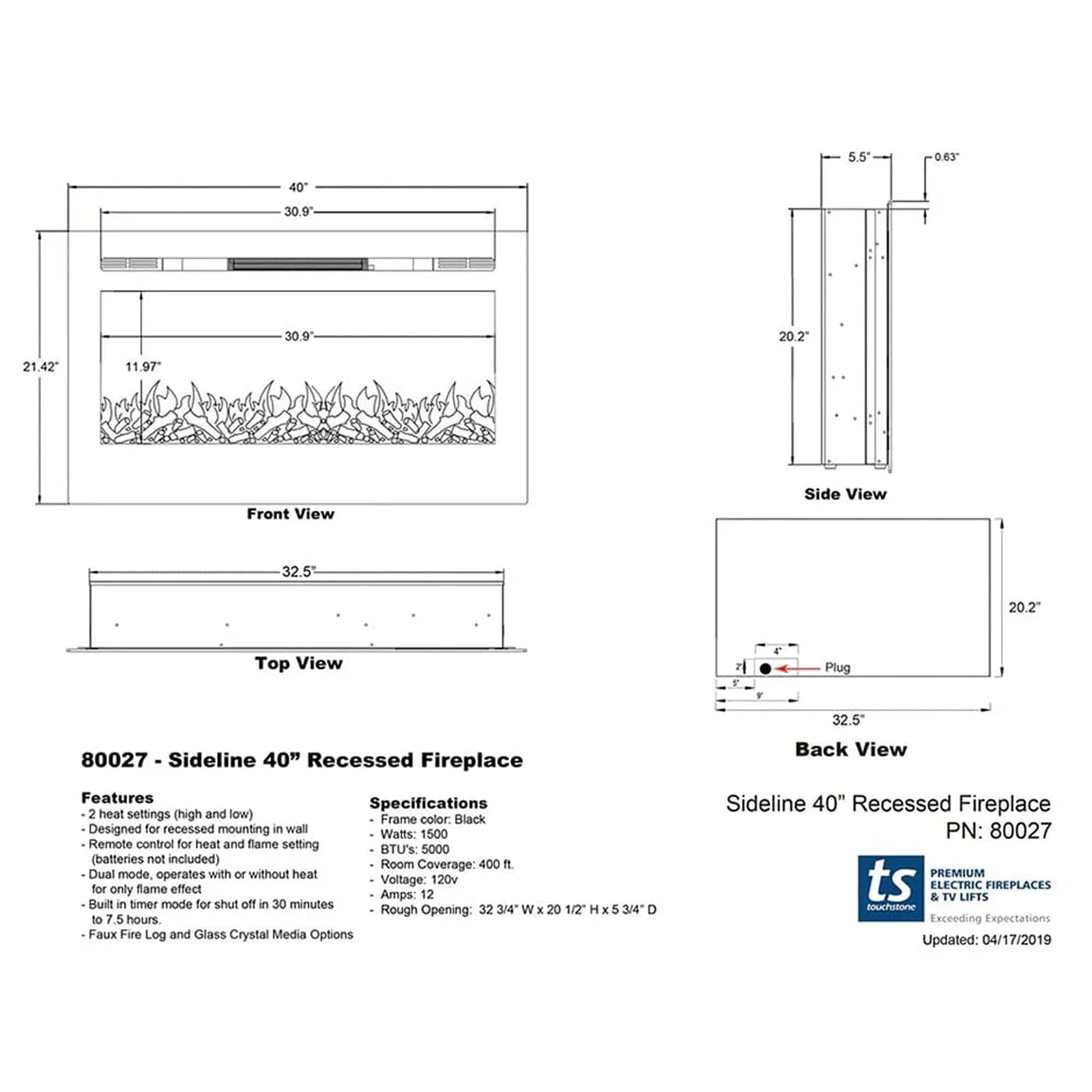

Dimensional Drawing

Documents

• 80027 - Sideline® 40 Electric Fireplace Owners Manual
• 80027 - Sideline® 40 Electric Fireplace Dimensional Drawing
• 80027- Sideline® 40 Electric Fireplace Wi-Fi Setup Guide
