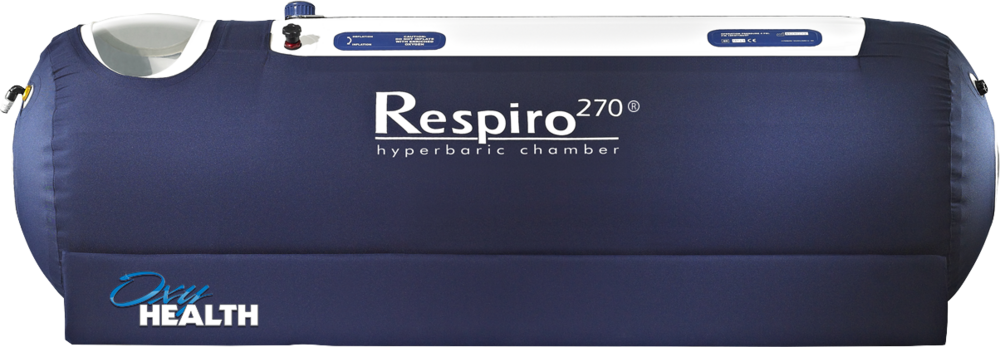

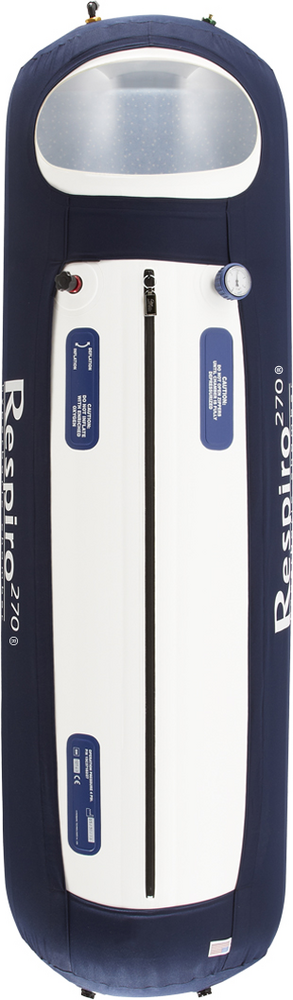

OxyHealth Respiro270®

MAXIMIZE WITH OUR MIDSIZE

Combining functionality and comfort with a 27” diametric design to provide patients with increased freedom of movement, yet small enough to fit into any room. Dual control valve technology for physician / self-treatment, in addition to double-sided 44 oz. urethane coated polyester offers an ergonomic design and more importantly impeccable safety specifications. Three large patient viewing windows illuminate the interior with room light. Strategically angled air-in port and tamper-proof redundant pressure regulators maintains consistent circulatory air flow within the chamber during treatments. The practical design concept and medical grade components ensures durability and functionality that will last for years.

HYPERBARIC CHAMBER

1.3 ATA (4 psi) operating pressure

Durable, double-sided 44 oz. urethane coated polyester bladder

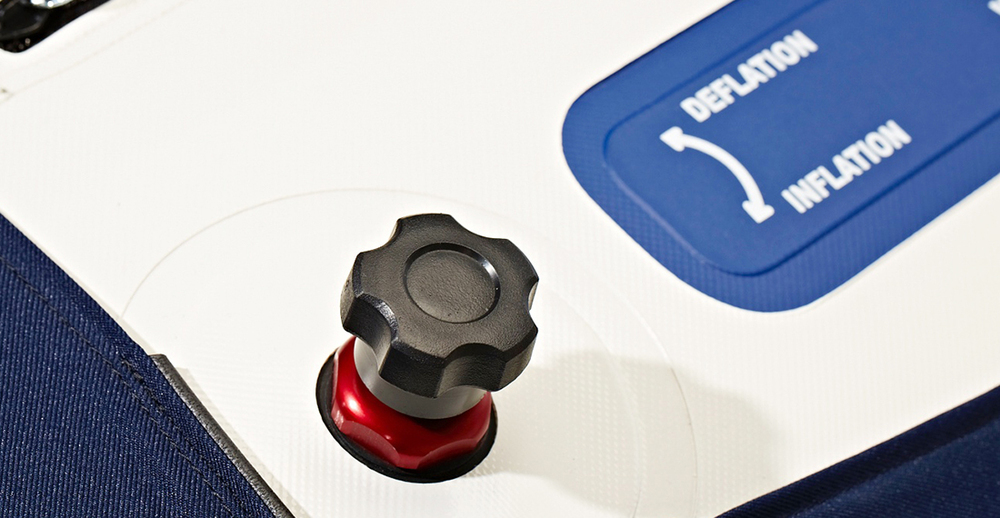

Tamper-proof, dual redundant pressure regulator valves

Patented 2-zipper seal assemblies

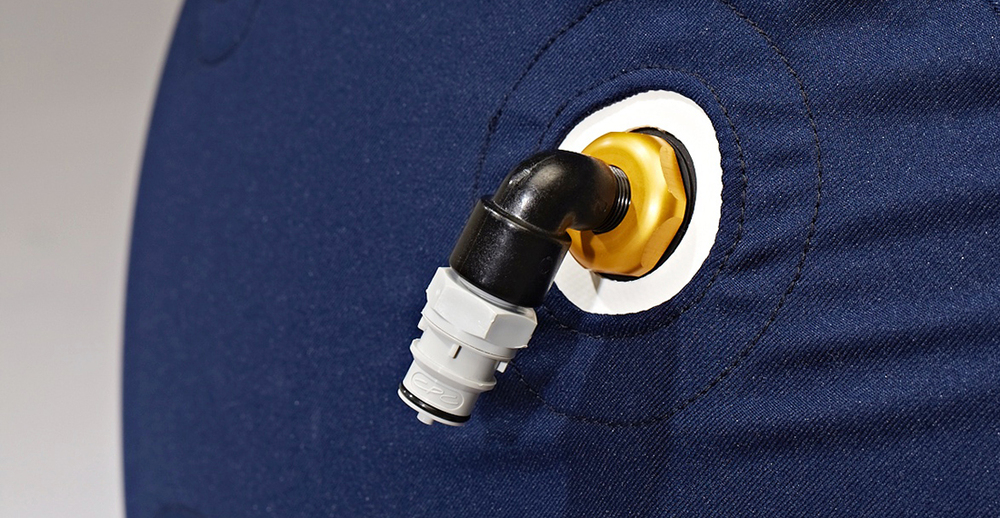

Designed for improved airflow through chamber during treatments

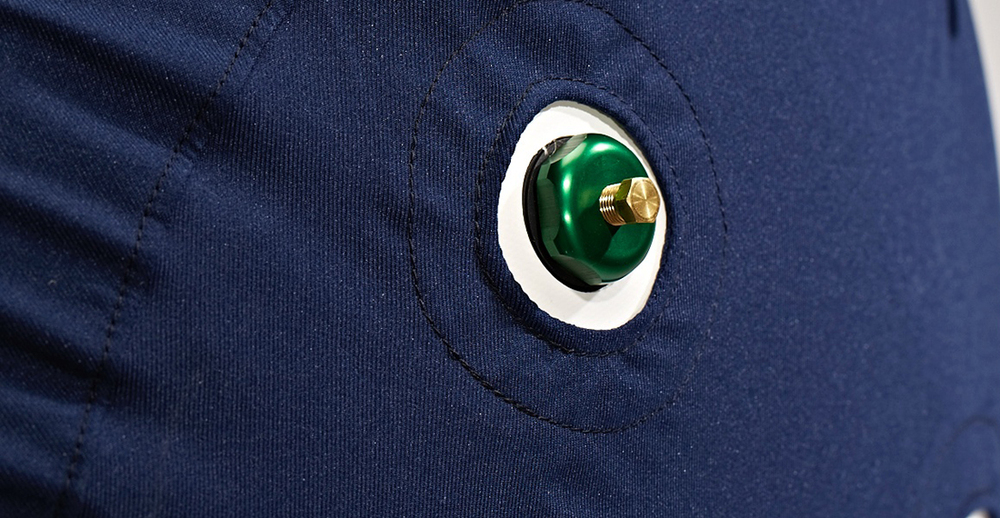

Additional port for external medical pass-through devices

Manufactured with nontoxic, medical grade components

Rigid frame that maintains form when deflated

*Standard – Mattress contoured to fit inside the chamber

WEIGHT

• Bladder: 27 lbs (12.24 kgs)
• Bolsters: 7 lbs (3.17 kgs)
• Compressor: 24 lbs (10.88 kgs)
• Frame: 16 lbs (7.25 kgs)
• Mattress: 10 lbs (4.53 kgs)

DIMENSIONS

Length: 88 in (223.52 cm)

Diameter (inflated): 27 in (68.58 cm)

OxyHealth chambers are manufactured in the USA in accordance to regulations and codes of the following

CLEAN AIR COMPRESSOR

- Double-headed, oil-less, 1/4 hp compressor with dual intake filters

- High-efficiency inline air filtration that filters air to 0.01 microns

- 10 ft. medical grade hose with quick-disconnect couplings

WHAT DO YOU GET?

Respiro270® Hyperbaric Chamber

Jacket

Carrying Bag

Bolsters

Clean Air Compressor

10ft Medical Grade Hose

Internal Frame

Mattress

Operation Manual

You get a total of 5 shipping boxes

* Solace210®, Respiro270®, Vitaeris320®, Quamvis320® and Fortius420® are federally registered and trademarked names of Oxy-Health, LLC and are fully protected under federal law.
