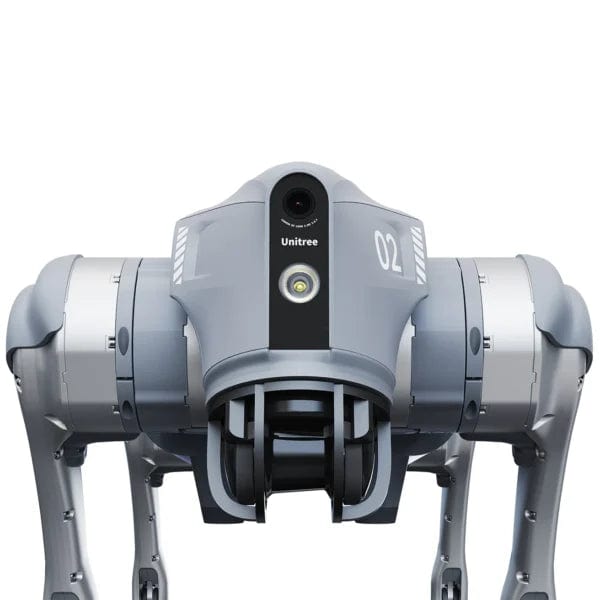

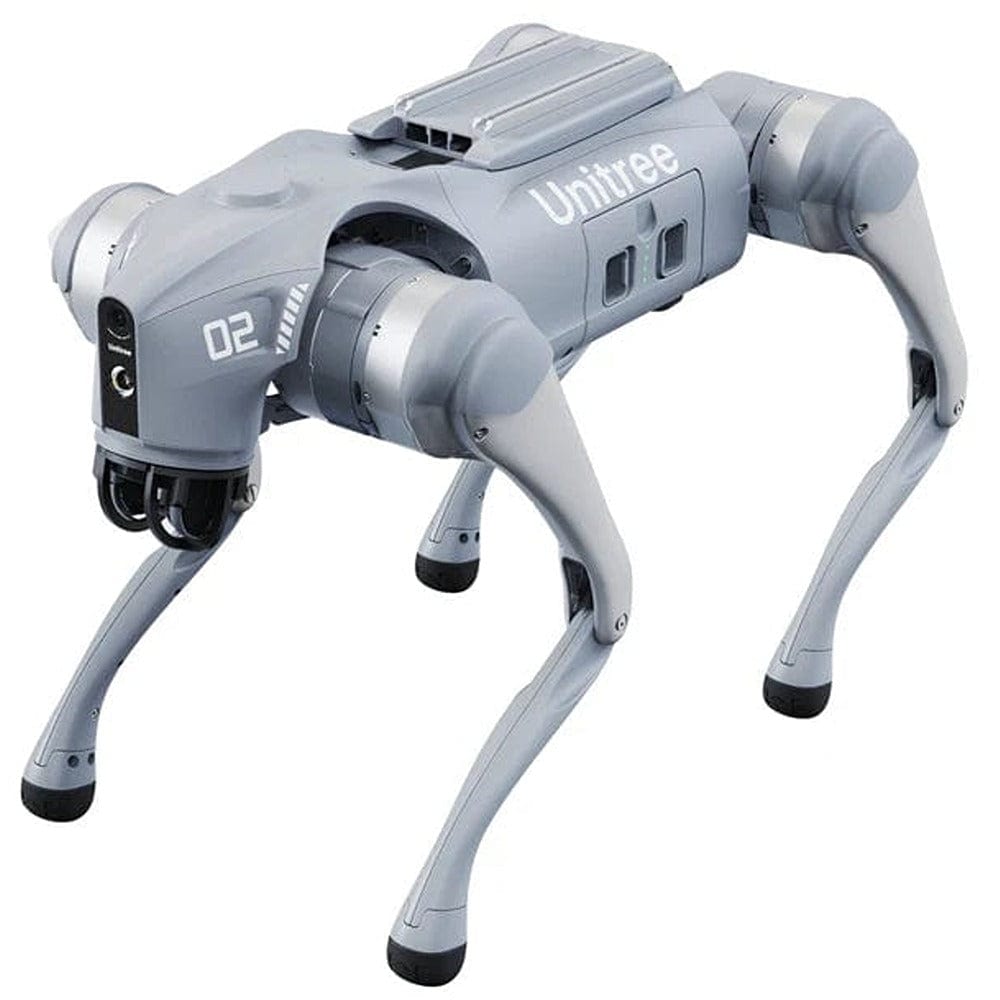

Unitree Go2 EDU - AI Quadruped Robot Dog - For Education/Research Market

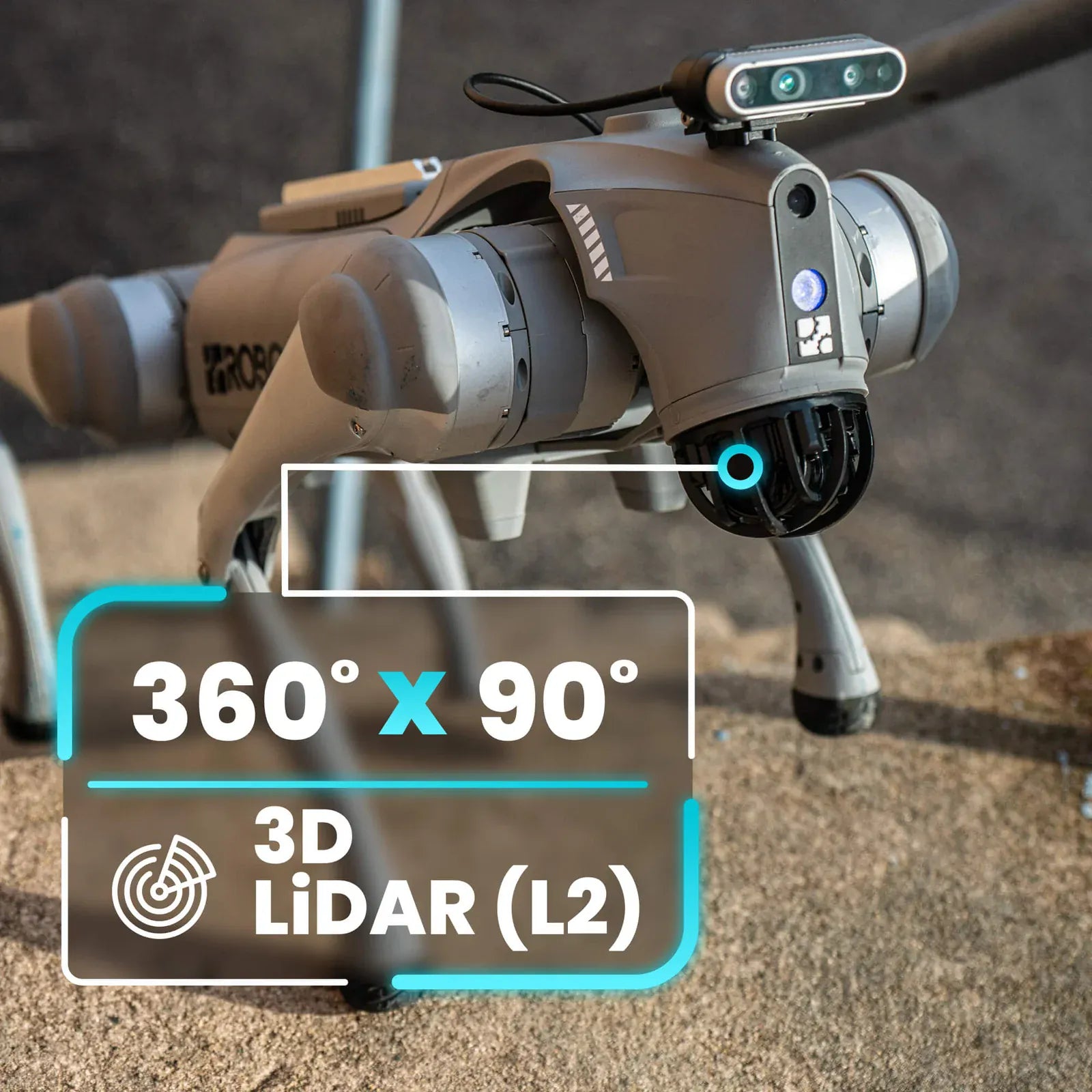

Go2 features with Unitree's self-developed 4D LIDAR L1 with 360°x90°hemispherical ultra-wide recognition, super small blind spot and a minimum detection distance as low as 0.05m, which makes Go2 realise all-terrain recognizing.

Go2 boasts a variety of poses such as jumping, stretching, shaking hands, cheering, pouncing, and sitting down.

Battery capacity and endurance upgraded by 150%

By adopting the new wireless vector positioning and control technology, the positioning accuracy is technically upgraded by 50%, the remote control distance is over 30m, and combined with the optimised obstacle avoidance strategy, it can make the robot better traverse complex terrain.

Equipped with more high-tech devices

Features

Go2 Edu Standard:

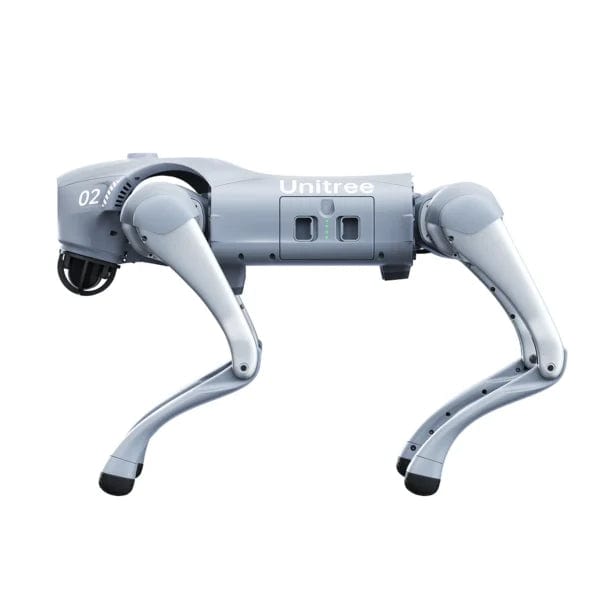

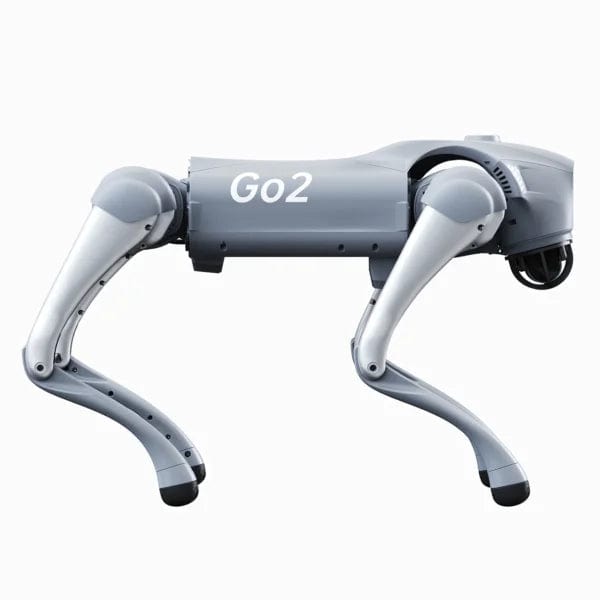

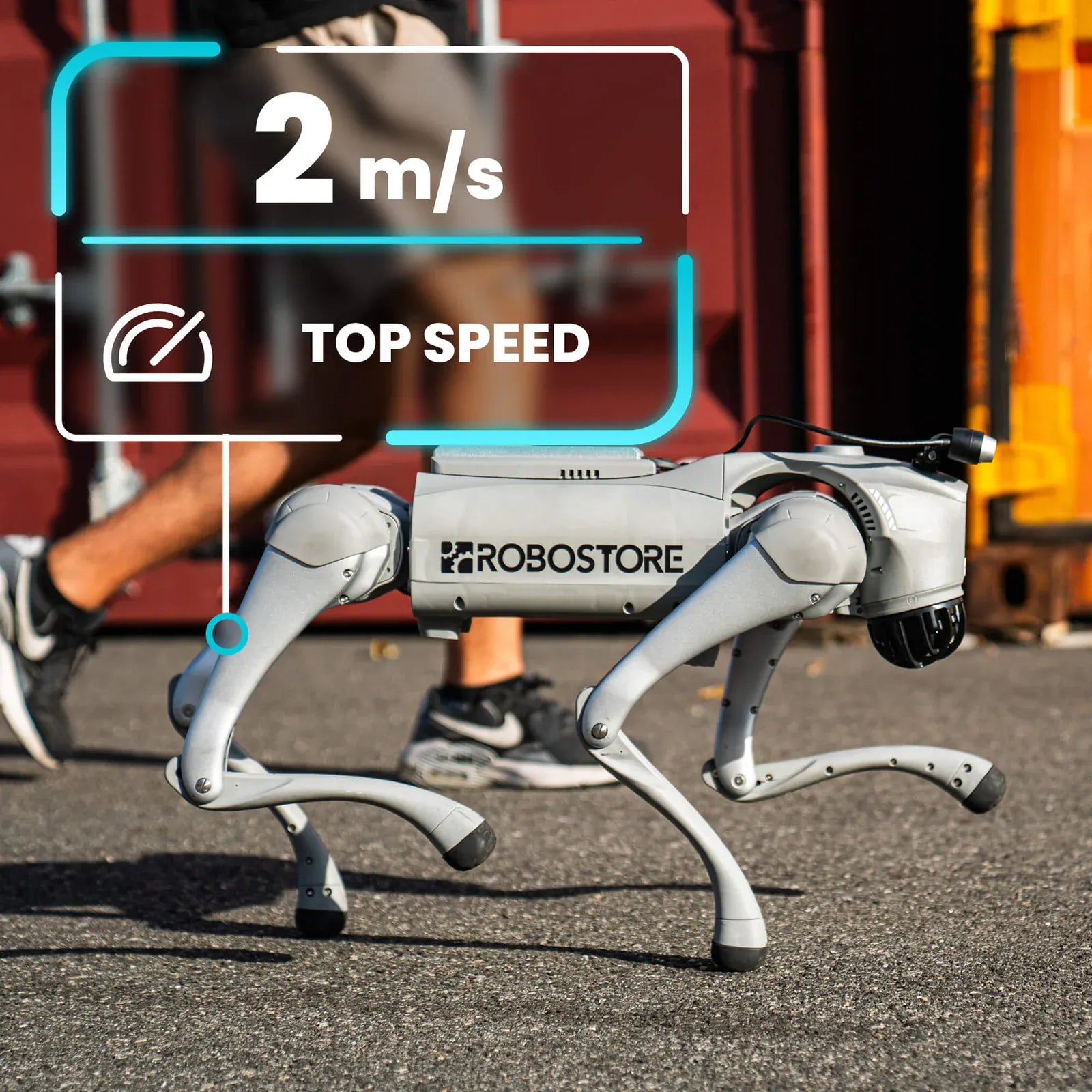

• The product size is 70cmx31cmx40cm; the weight of the whole machine is 15kg (including battery); the load is about 8kg (limit ~10kg); movement speed: 0~3.7m/s

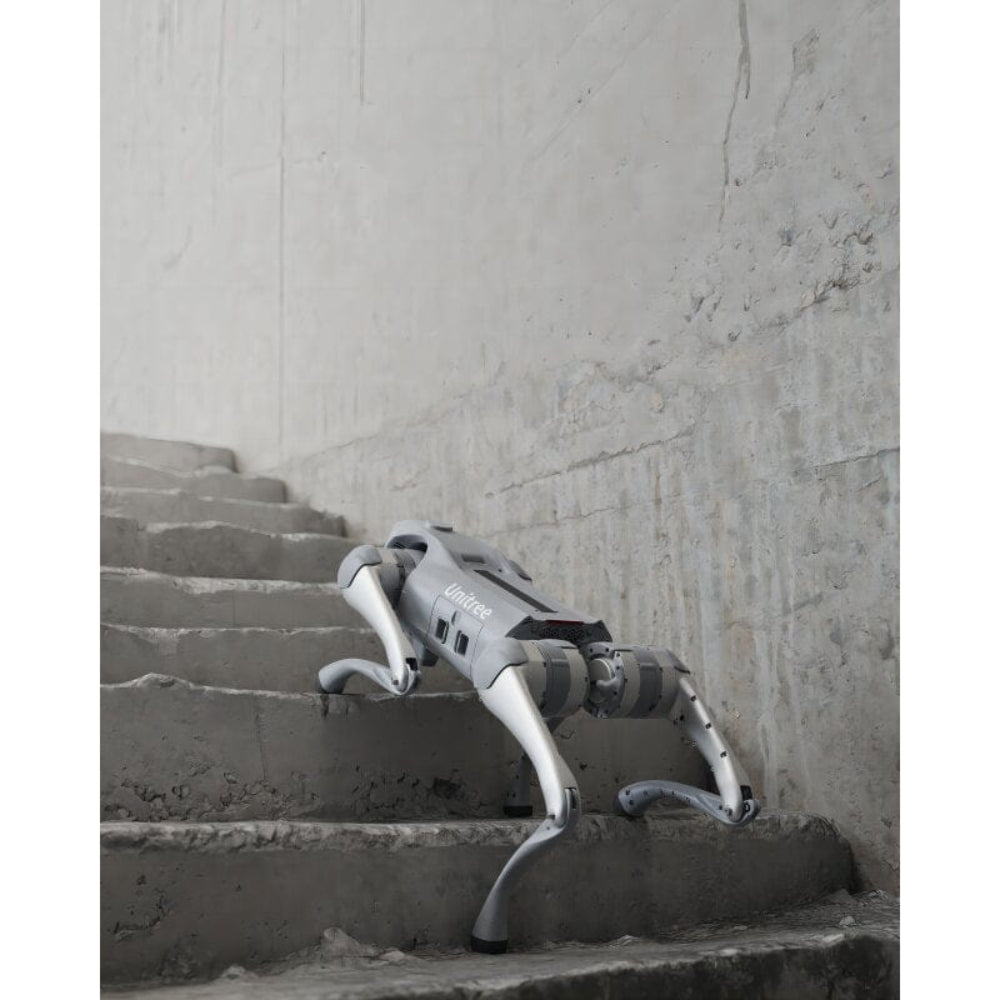

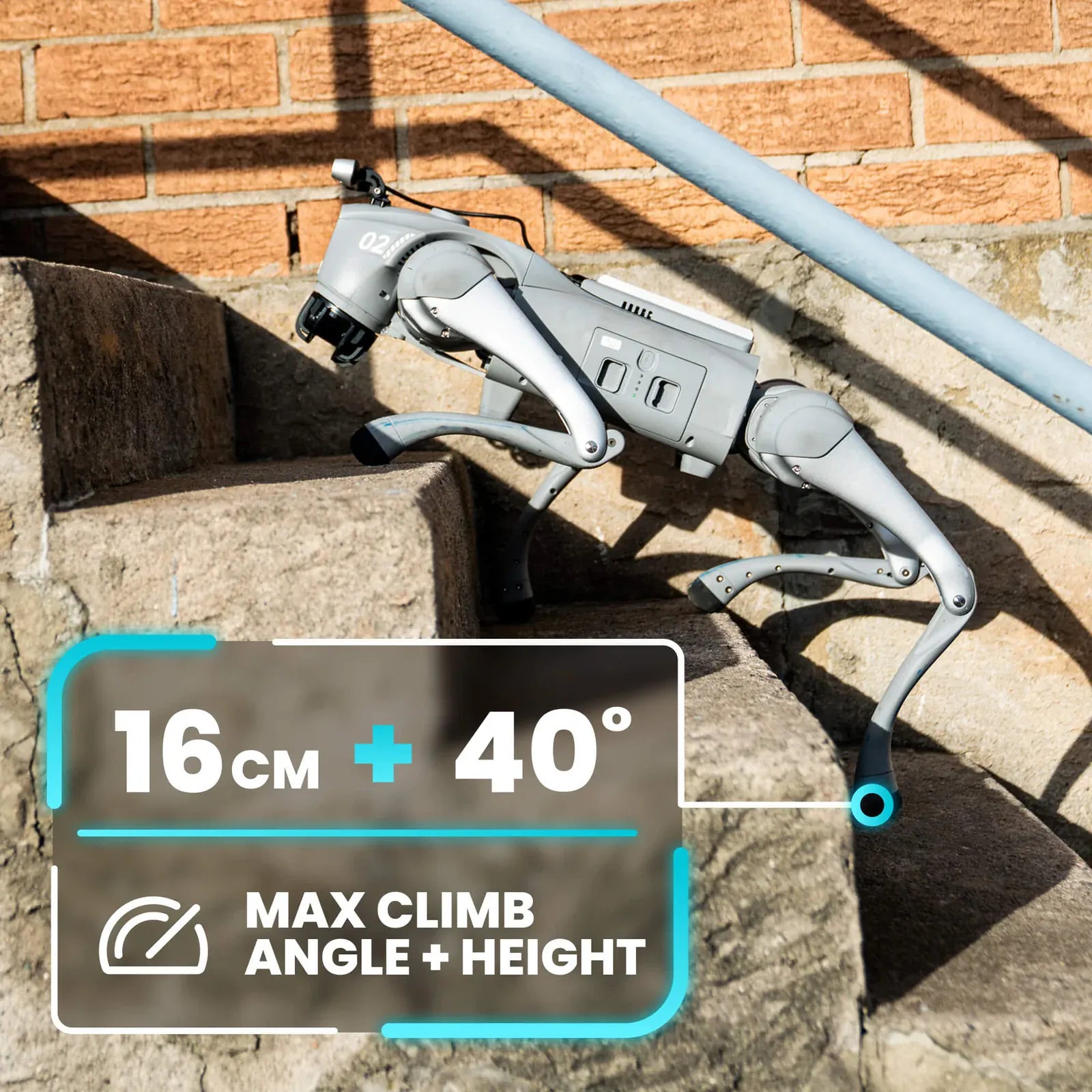

• Maximum climbing drop height: about 16cm; maximum climbing slope angle: 40°

• Cables are routed inside the knee joint, and joint heat pipes assist in heat dissipation

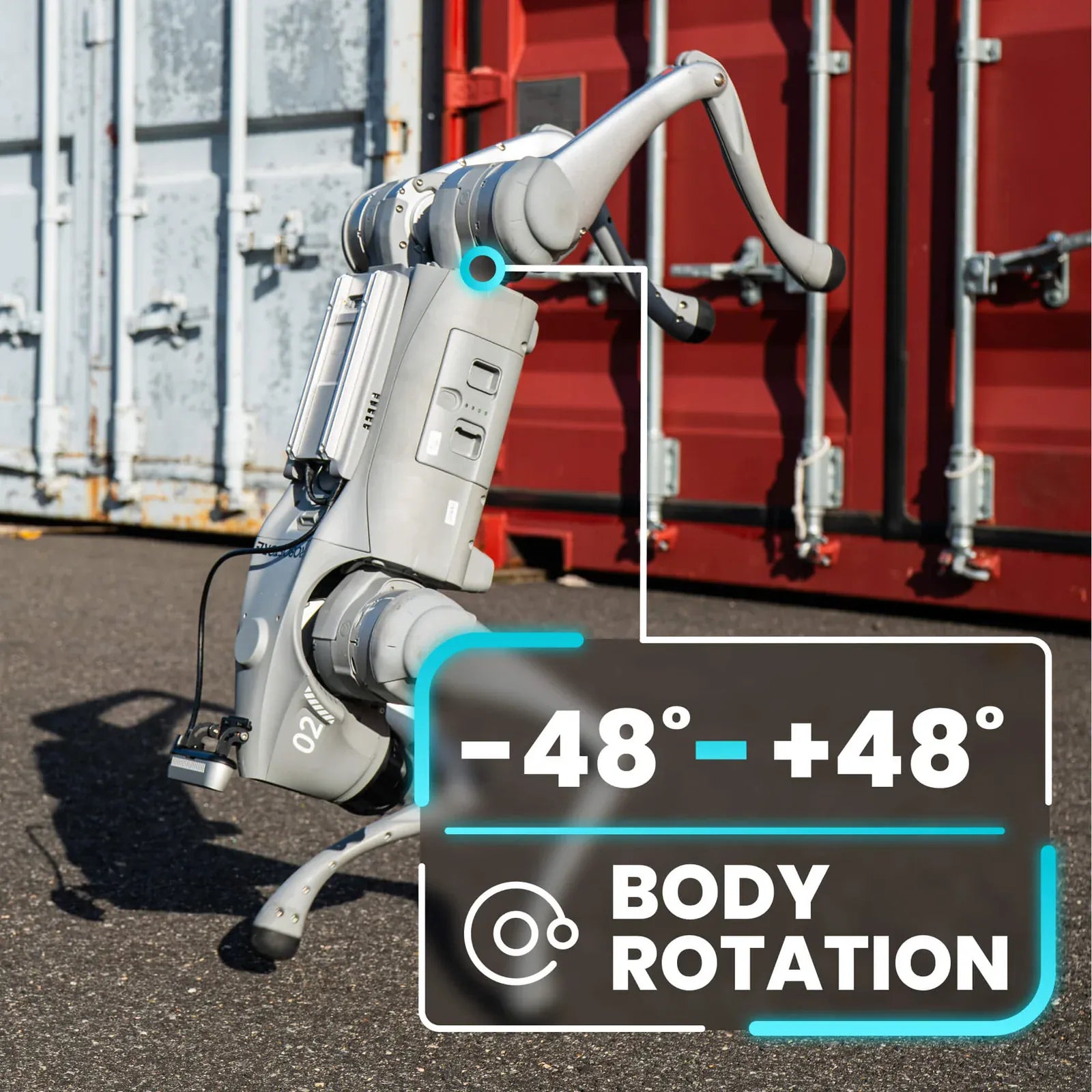

• Large joint movement space: body: -48~48°; thigh: -200~90°; calf: -156~-48°

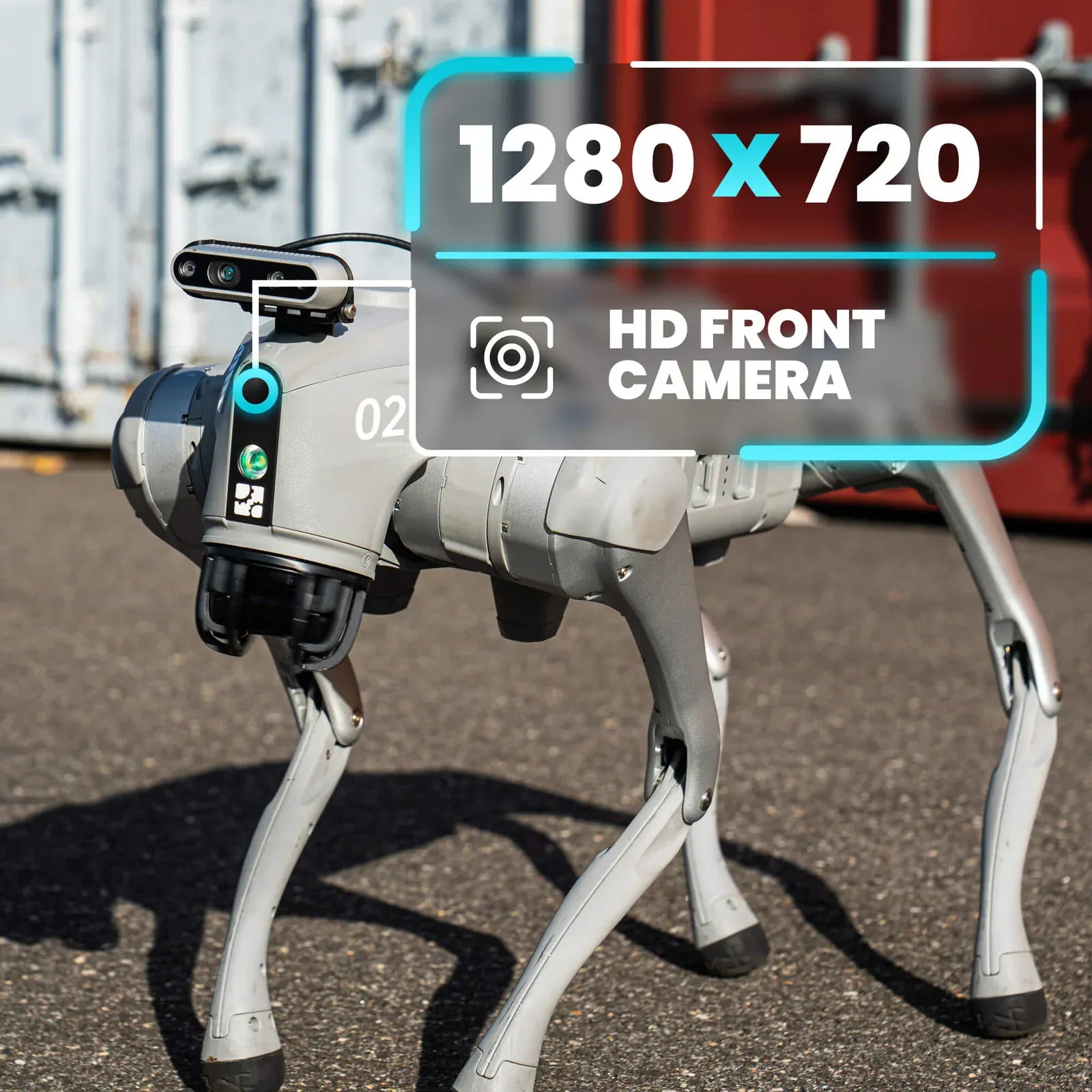

• The ultra-wide-angle 3D lidar has the function of object detection and obstacle avoidance, and the wide-angle high-definition camera
• Equipped with 4G communication, built-in eSIM; equipped with smart OTA upgrade
• APP high-definition image transmission, remote control, all data viewing; APP graphical programming
• WIFI6 dual-band wireless 802.11ax; Bluetooth 5.2/4.2/2.1

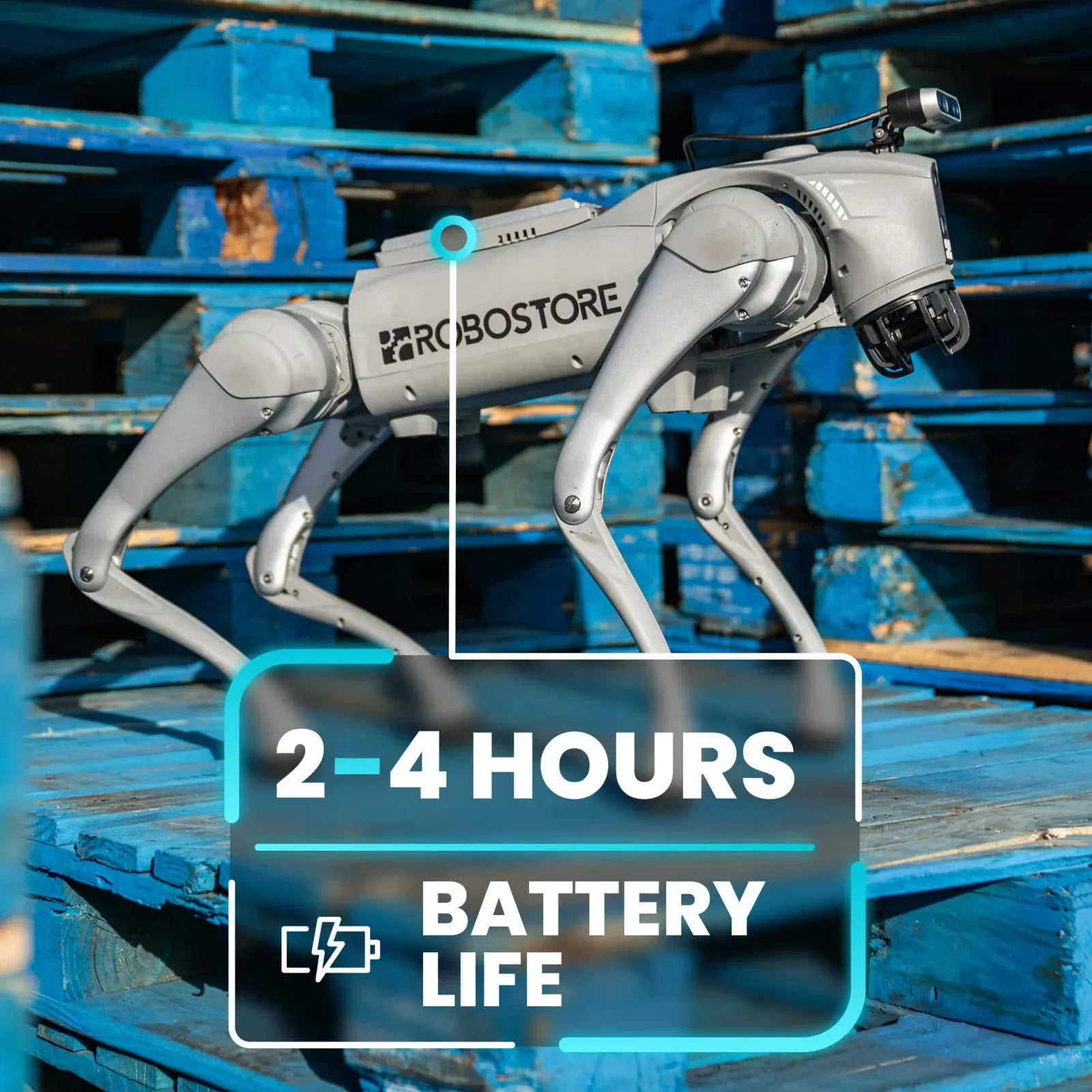

• Battery type: long battery life (15000mAh), battery life 2-4h

• Standard handheld remote control and fast charging charger (33.6V/9A)

• Support foot sensor, support secondary development, support charging pile

• Equipped with wireless vector positioning and control system to realize accompanying

• Possess moon walk (that is, space walk), side step, cross step, jump up, jump forward, front somersault, happy, shake hands, throw people,
  sit down, stretch, bow, a variety of creative dances, etc.

• Equipped with microphone, speaker, lighting (3W), with system status indication function, real-time feedback of robot status, and can be
  used for robot demonstration actions with music and lights

• Built-in voice recognition module, with voice interaction function, millisecond-level voice interaction response, using industry-leading voice
  recognition technology, high recognition accuracy, fast literacy

• Docking station with 40Tops of computing power with AI algorithms and technical support

• Equipped with realsense D435i depth camera.

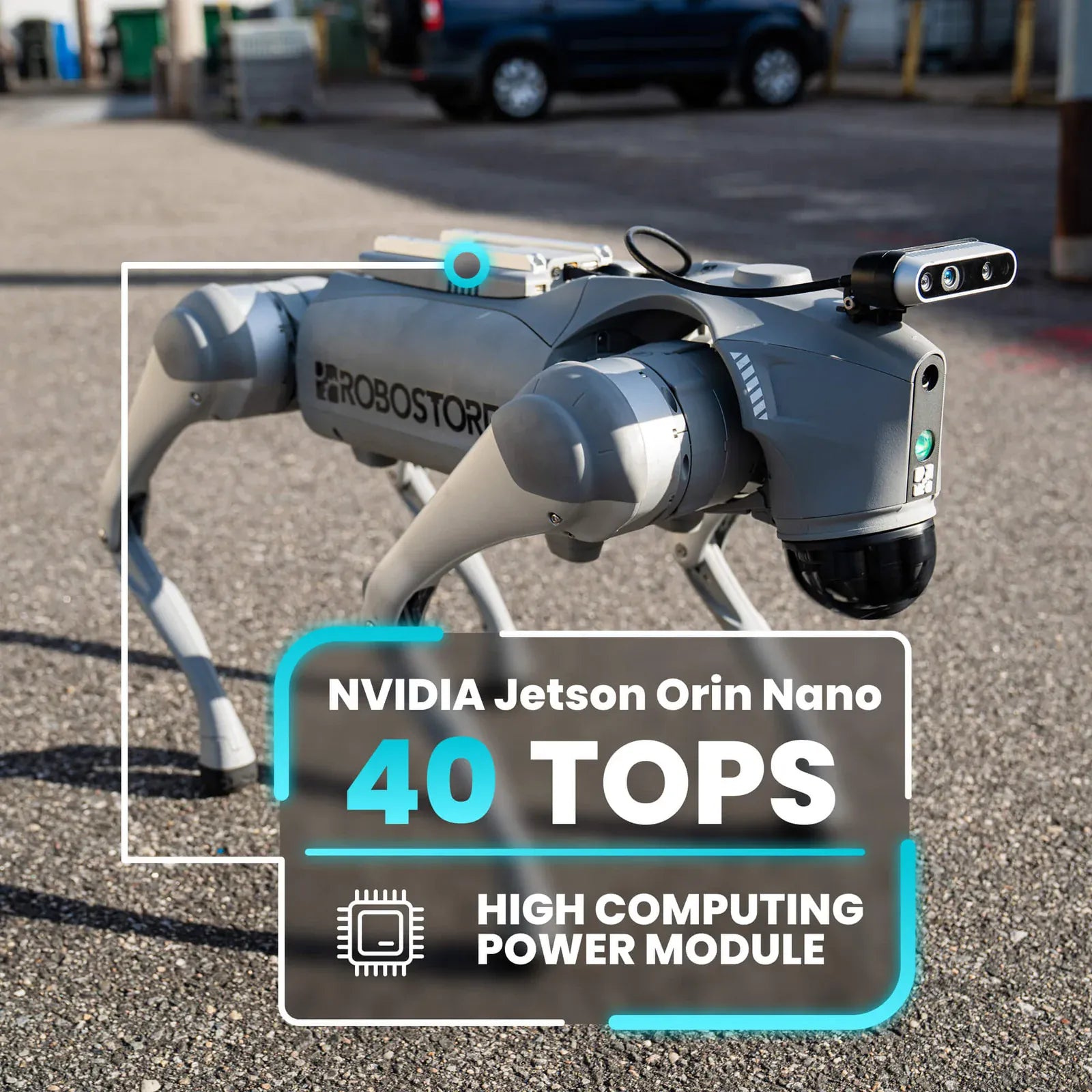

• Expansion dock with 40Tops(NVIDIA Orin Nano) computing power, including AI algorithm and technical support

• Provide power supply voltage range: 16V-60V, 1 USB3.0-Type A, 2 USB3.0-Type C and 2 Gigabit Ethernet ports (standard RJ45), also with 1 100Gb Ethernet (GH1.25-4PIN) and 1 M8 air plug interface.

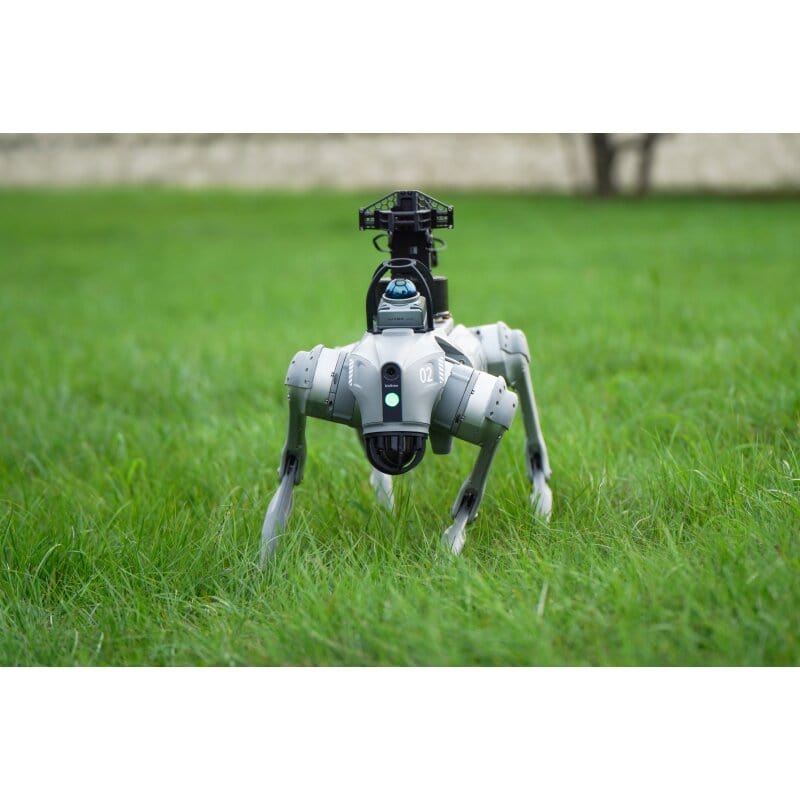

• Optional servo arm(will launch soon)

• Warranty: one year

Go2 Edu Plus:

• With Go2 EDU Standard All configurations, computing power upgrade to 100Tops(NVIDIA Orin NX) of mega-computing power with AI
  algorithms and technical support

• Provide power supply voltage range: 16V-60V, 1 USB3.0-Type A, 2 USB3.0-Type C and 2 Gigabit Ethernet ports (standard RJ45), also with 1
  100Gb Ethernet (GH1.25-4PIN) and 1 M8 air plug interface.

• Optional servo arm
  Warranty: one year
