Unitree Go2-W - AI Quadruped Robot Dog with Wheels

Go2 New Model Transformative Newborn

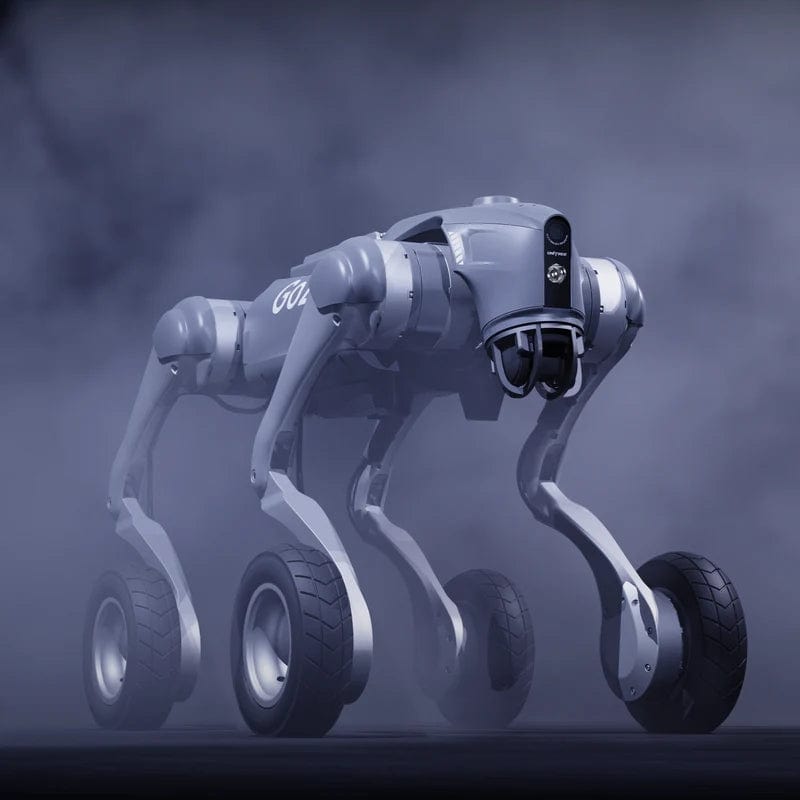

Featuring integrated in-wheel motors and 7-inch pneumatic tires, the Go2-W offers exceptional mobility and durability. Its sleek yet robust design enables superior traction and stability across terrains. Combining innovation and performance, it stands out as a top-tier robotic solution for varied applications.

Overview

The GO2-W is a versatile robotic platform built to inspire innovation across industries. Equipped with advanced AI, precise navigation systems, and a wheeled design for seamless mobility, it’s perfect for education, research, and professional development. Whether in classrooms, labs, or commercial environments, the GO2-W unlocks new possibilities in robotics, programming, and autonomous technology exploration.

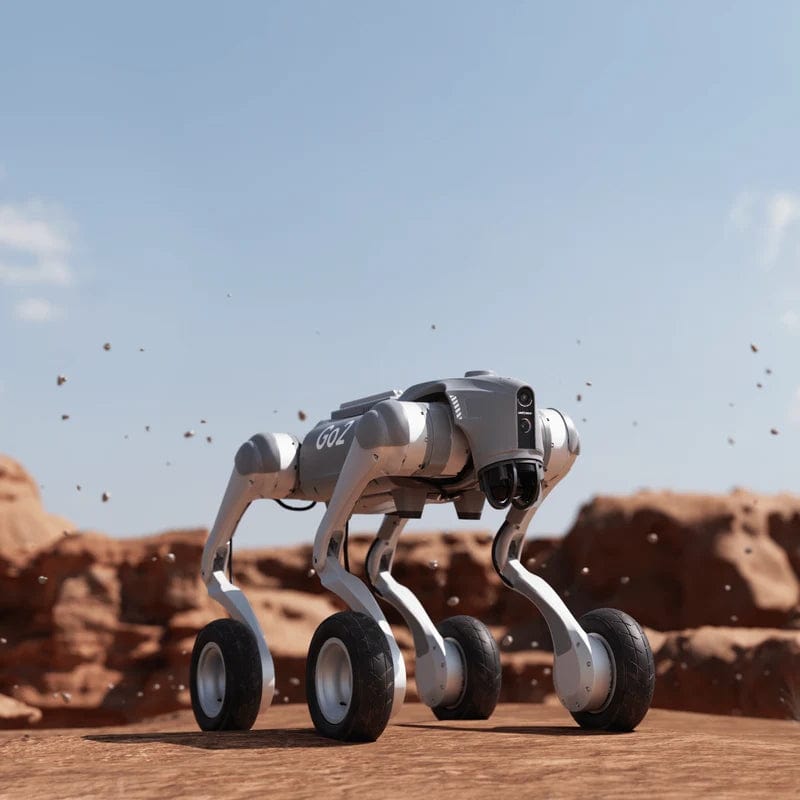

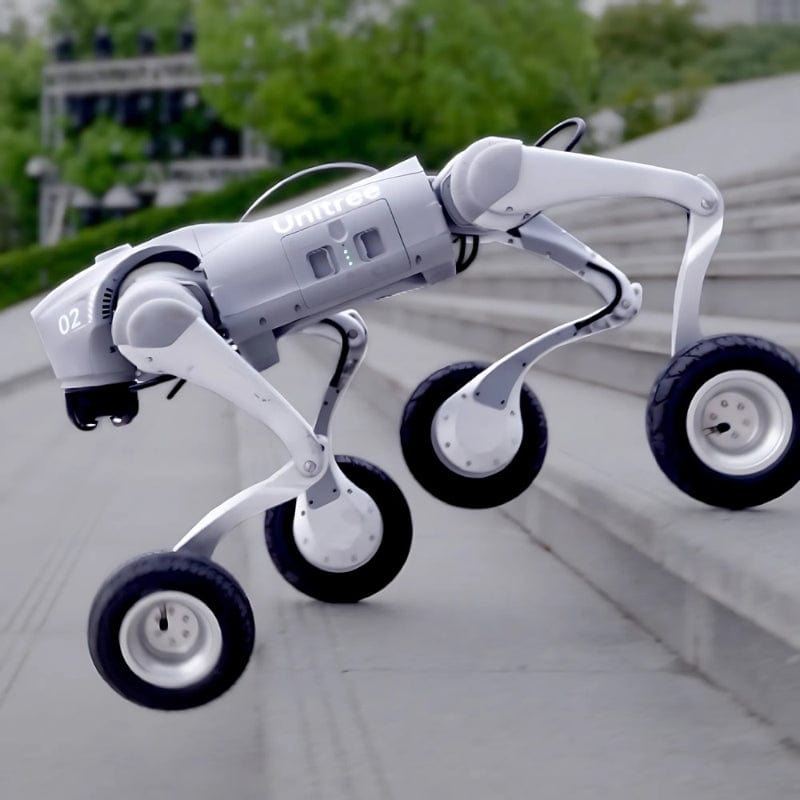

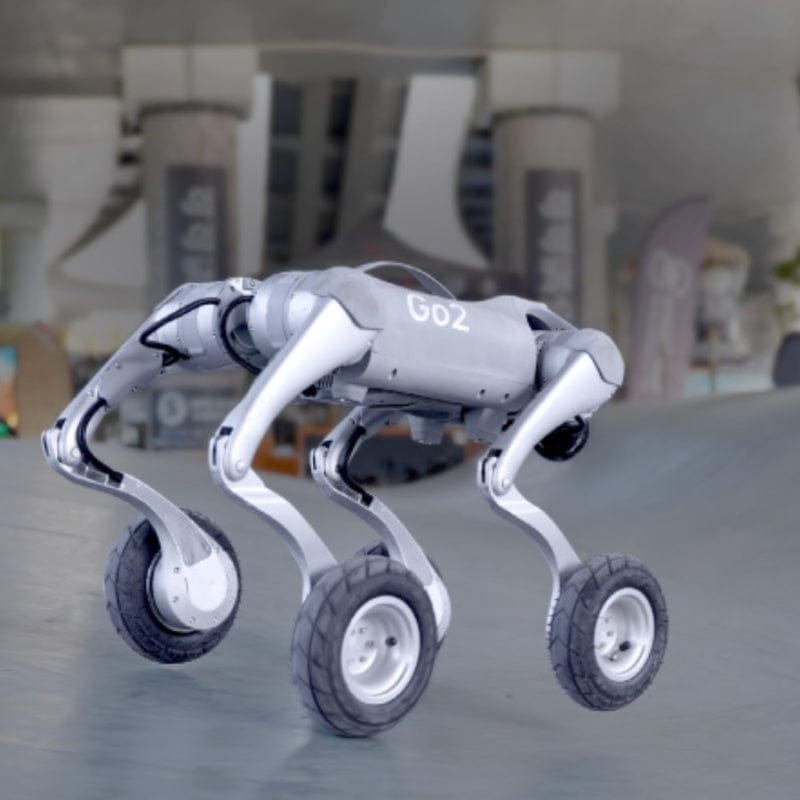

Go2-W, a robotdog on wheels, run faster on the road, glide smoother on slopes and climb higher on stairs. Designed for optimized speed and agility, it’s perfect for critical tasks like ground patrols and safety inspections. Additionally, the Go2-W serves as an excellent platform for R&D, academic studies, and educational programs on A.I. and robotics.

Product Versions:

1. Go2-W: Plus

2. Go2-W: Ultimate

3. Go2-W: Inspection

Features

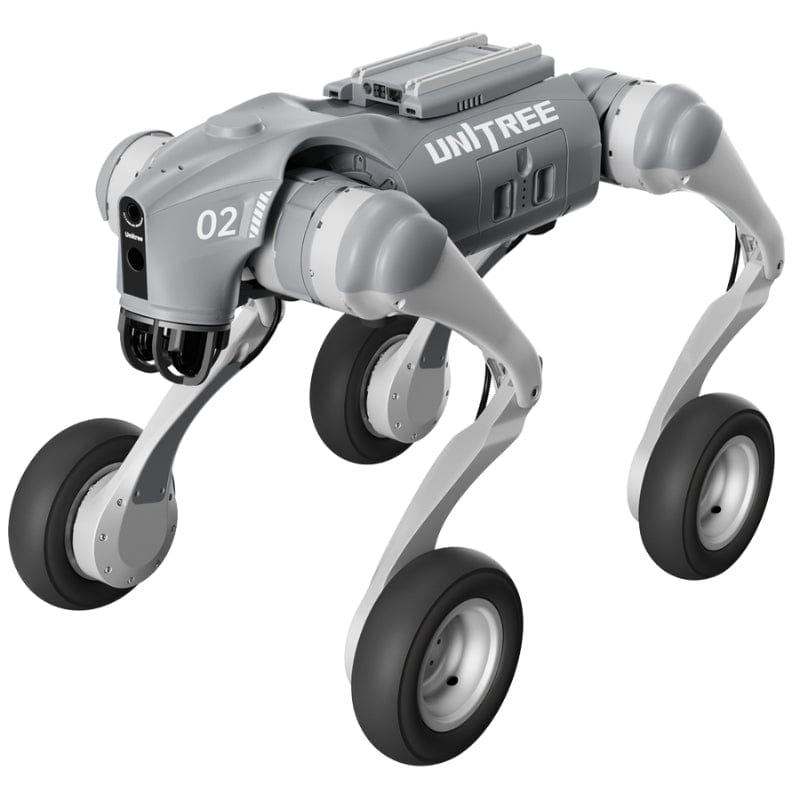

Features of Go2-W Plus/Smart:

• Standing size: 70cm x 43cm x 50cm

• Weight (with battery): about 18kg

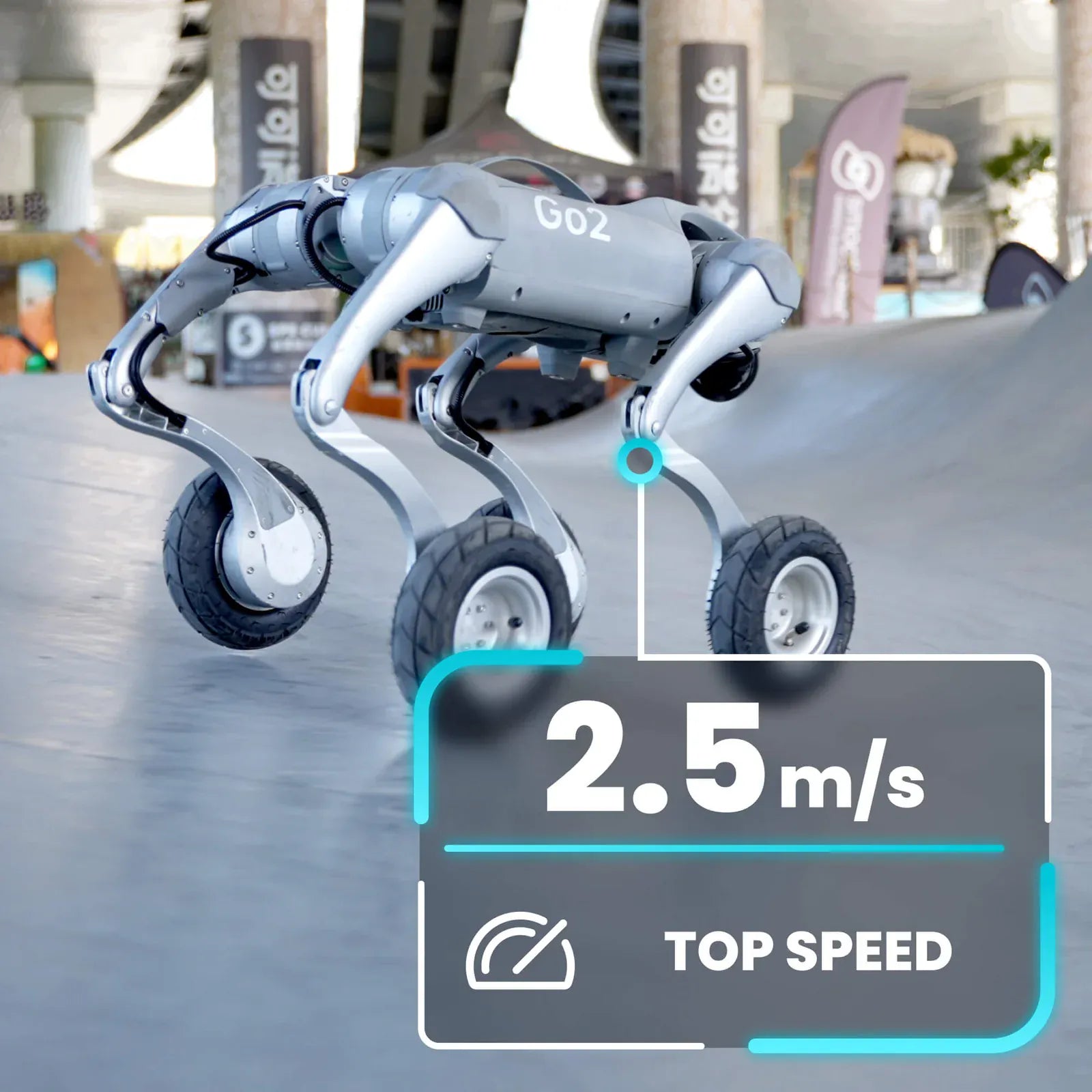

• Movement speed: 0~2.5m/s

• Tires: 7 inch pneumatic tires

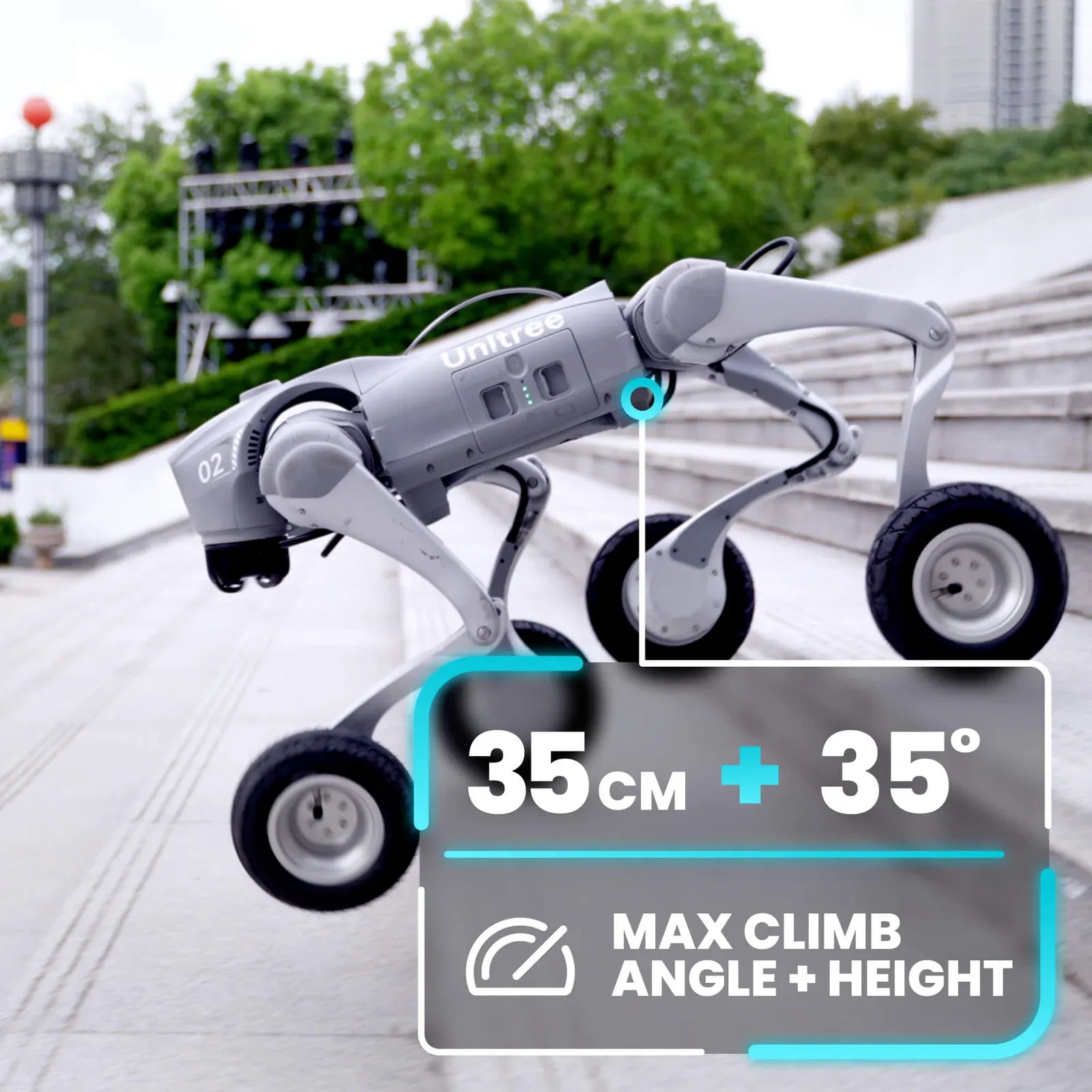

• Maximum Climbing Drop Height: Approx. 70cm

• Joint motor: 16 pcs

• Battery type: long life (15000mAh), duration 2-4h

• Warranty: 1 year for the whole machine

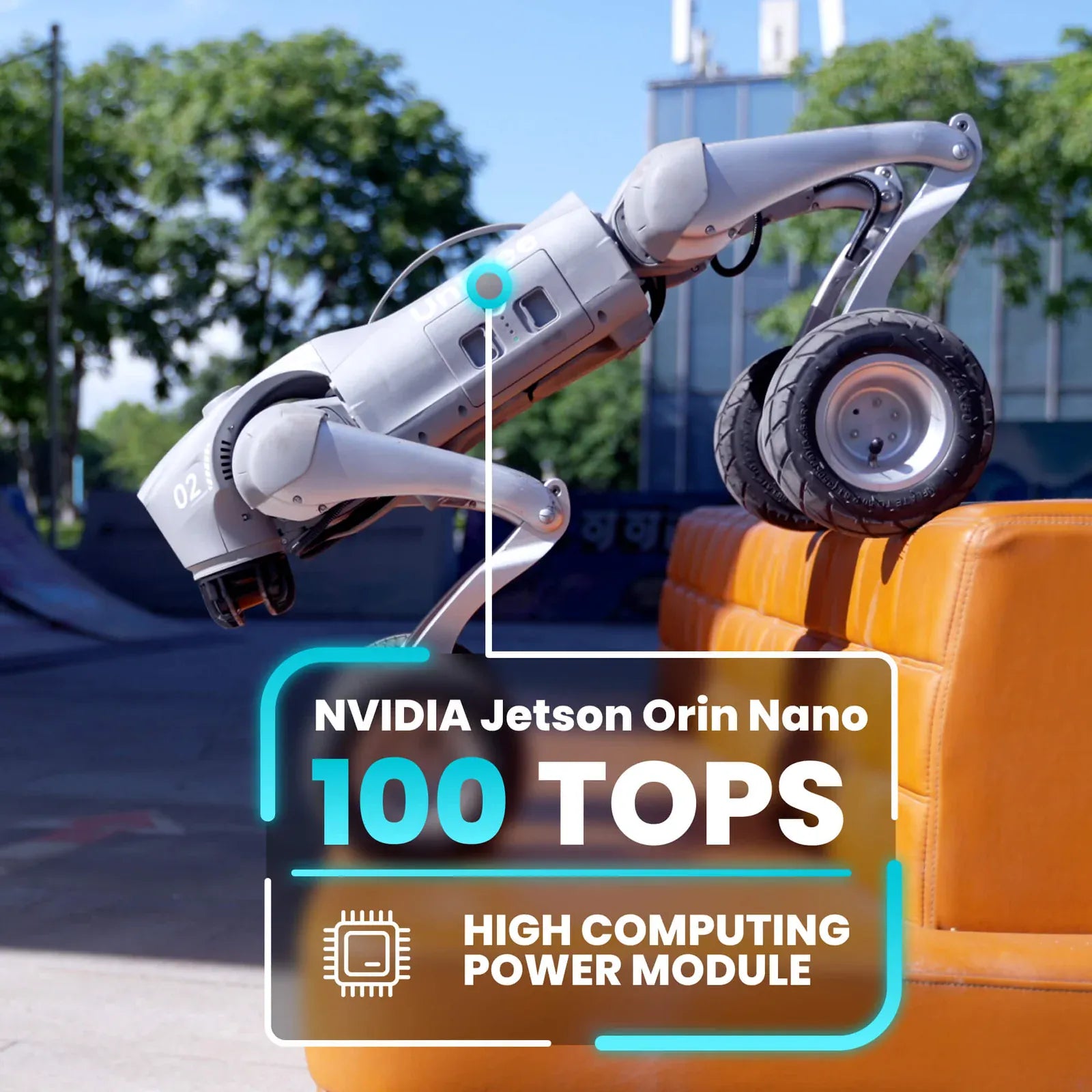

• Docking station (Orin NX) with 100Tops of computing power, including AI algorithms and technical support
• Equipped with realsense D435i depth camera.

• With optional servo robot arm D1

Features of Go2-W Ultimate:

• With all the parameters of Go2-W Plus Edition

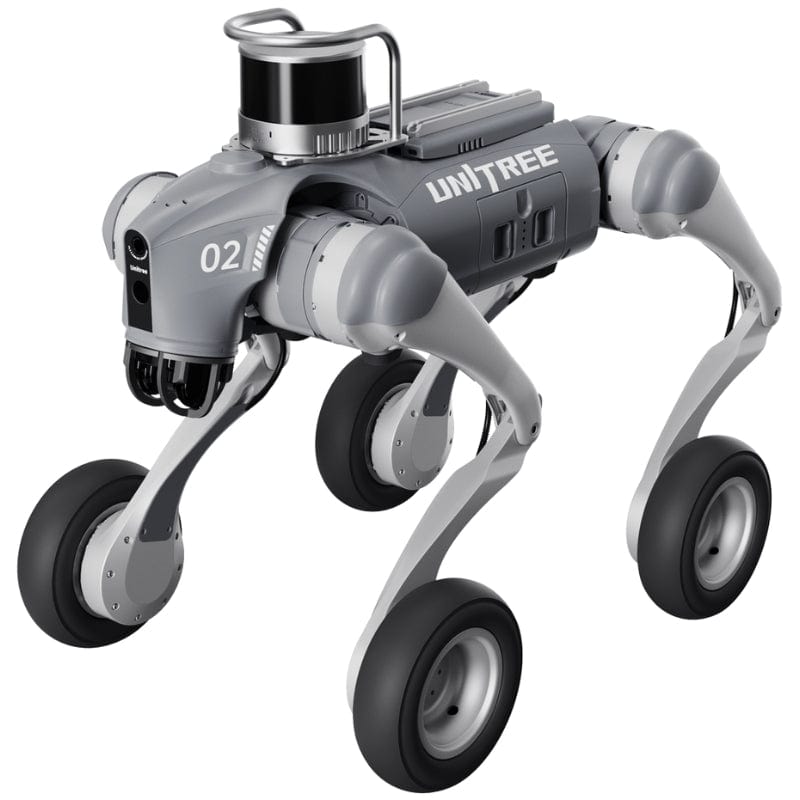

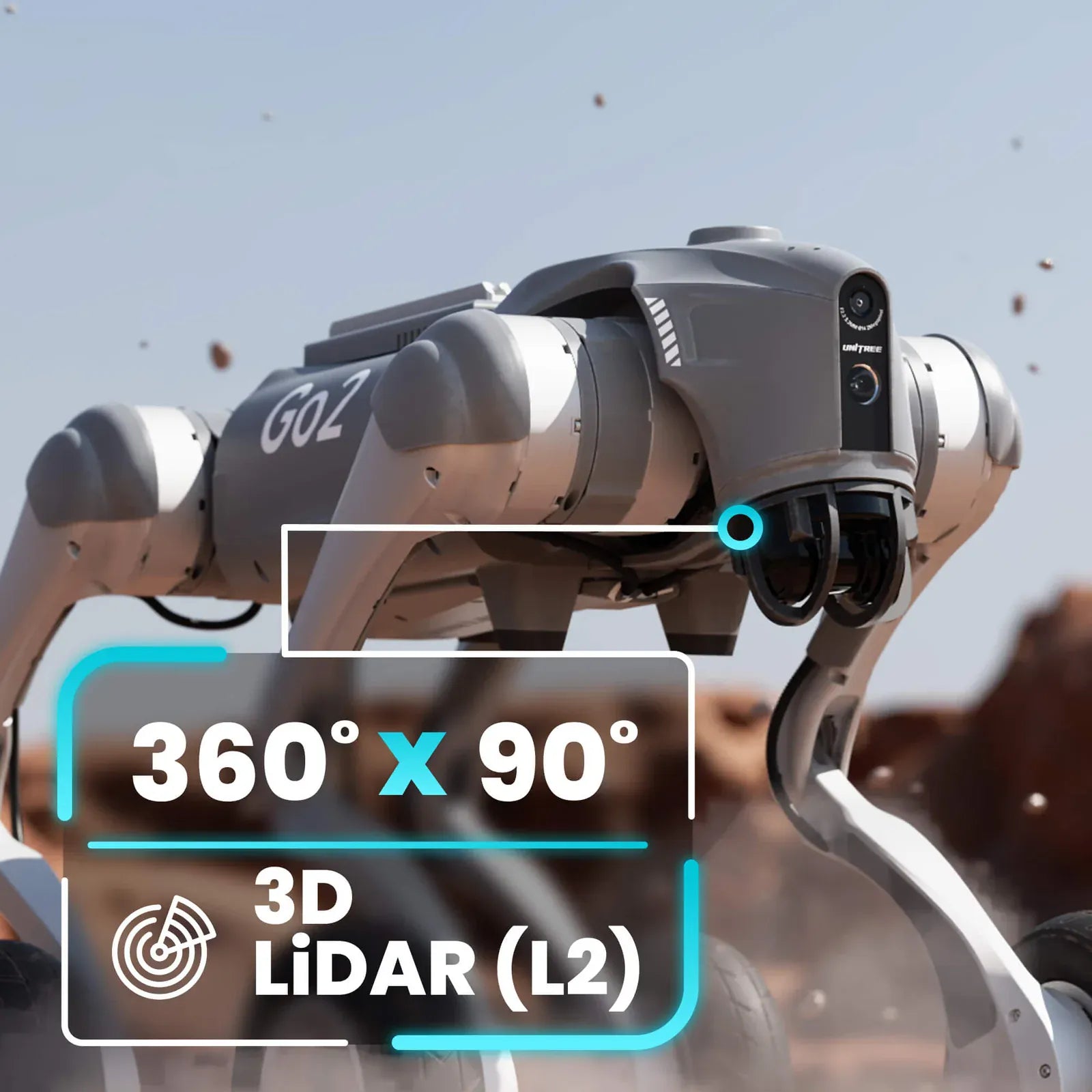

• With high quality 3D Lidar XT16, including navigation algorithm and technical support.

• Optional servo robotic arm D1

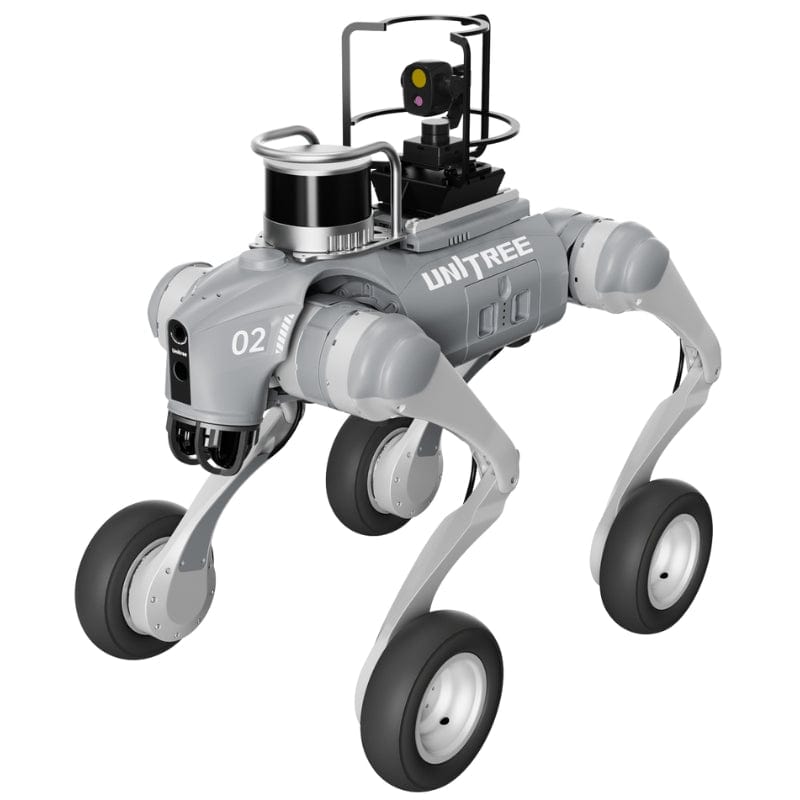

Features of Go2-W Inspection:

• With all the parameters of Go2-W Utimate version

• Dual-light head: high-precision three-axis stabilization

• Gimbal parameters: Angular jitter amount ±0.01°

• Controllable Pitch Rotation:-90°~+25

• Controllable Horizontal Rotation:-270°~+270°

• Horizontal Roll Rotation:-45°~+45°”

• Thermal imaging sensor:
  Resolution:640x512
  Waveband range: 8-14um

• Temperature measurement range:
  High gain -20~+150°C
  Low gain 50~+550℃

• Temperature measurement accuracy:
  -20~+150℃ (±2℃)
  50~+550℃(±5℃)

• Not optional servo robotic arm D1
  Go2-W inspection package is only hardware platform, support customers to do secondary development by themself . This platform is a standard platform: does not include customization services, does not include the project site navigation map building services, does not include the software management platform, does not include the project site survey and implementation services, etc.

Product Brochure

Click here to download
