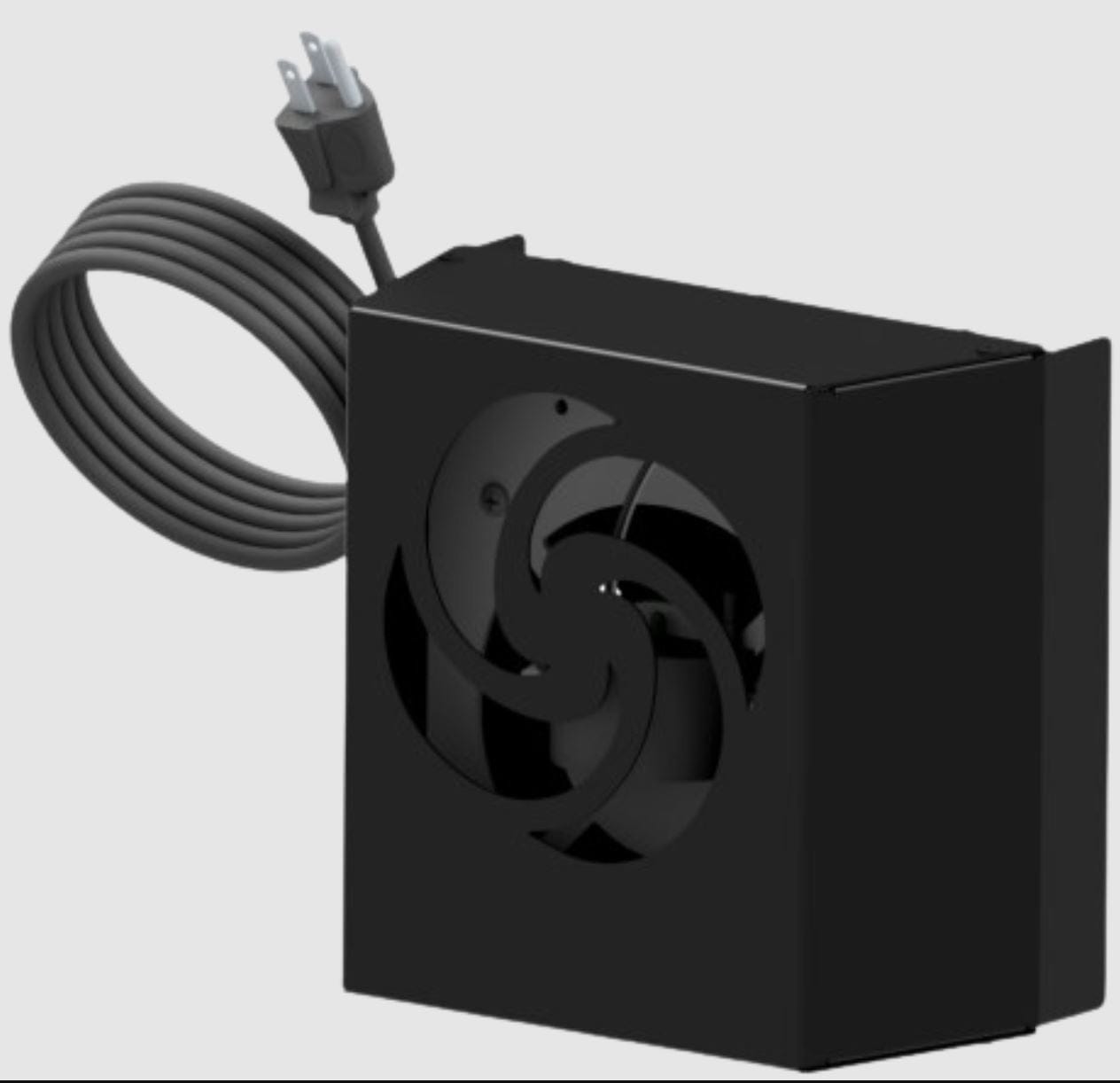

BA-350 Ion Distribution System - BSE Industrial Air Purifier

BA-350 Ion Distribution System - BSE Industrial Air Purifier

BSE

Regular price
Price: $1,295.00 USD
Regular price
List Price:
Sale price
Price: $1,295.00 USD
Shipping calculated at checkout.

Financing Available

Airpuria is excited to announce that we have financing options available for all customers.

If you have any questions please contact the Airpuria Team. Call: 773-337-8822 or email us at support@airpuria.com.

View full details

Our units are manufactured to feature a “Plug and Play” industrial-grade construction, whisper-quiet acoustics, wireless speed control, and a 180-degree discharge pattern. The units require very little maintenance, and are portable or can be wall-mounted.


Important Information:

Competitor’s ion output ratings generated directly at the needlepoint brushes can be deceiving as is shown by our testing and published numbers. Ionization units not installed directly in the breathing zones are not conducive for maximizing ion output at all the breathing zones. See the Total Ion Output table for ion output directly to the breathing zones. Please evaluate the HVAC air distribution system (duct, insulation, vav terminals, dampers turning vanes) and account for the coanda effect of air distribution diffusers.

These variables could result in little to no ions being discharged to the breathing zones. BSE’s Ion Distribution products are rated and tested for ion output from 2 feet to 25 feet away from the needlepoint brushes at the breathing zones for real world performance. Please make sure when specifying Bipolar Ionization that the ion’s per cc/sec are commensurate to the distance required at the breathing zones to mitigate airborne viruses.

Features:

    • The unit covers up to 225 square feet
    • Very low maintenance is required!
    • NeedlePoint Bipolar Ionizer, Effective for Air and Surface Disinfection
    • Brushless, High Efficiency, Blower
    • Motors are Ball Bearing Supported for Longer Service Life


Benefits:

    • Pathogens Neutralized (Bacteria, Viruses, Mold), Helps to Control Allergens/ Asthma*, Prevents Sick Building Syndrome
    • Particle Reduction and Smoke
    • Control Odors Neutralized by destroying VOCs
    • Energy Savings of 30% by Reducing Outdoor Air Intake by up to 75%.


Specification:

Model BA-350

Unit Dimensions

Depth 4.1(104)/Width 7.3(184)/Height 7.0(178) inches (mm)

Material Casing

Steel

Plug Length

12 Feet

Fan

Tube Axial w/ Shaded-Pole Construction

Airflow Capacity

115 CFM

Static Pressure

0.39 in H2O (97.1 Pa)

Max Speed

3,150 RPM

Sound Output*

47.8 dB

Fan Bearings

Ball

Weight

4.6 lbs

Operating Temperature

14ºF—158ºF (-10ºC - 70ºC)

Electrical: Voltage Input

85V – 125V AC

Power Consumption

22-Watt

Frequency

50/60 Hz

 Current

0.3 A

Certifications

UL 2998, UL 867 ETL Listed, Fan Blade UL 94V-0


How does Needlepoint Bipolar Ionization work?

The NPBI®  technology works to safely clean the air inside your building. The technology uses an electroniccharge to create a plasma field filled with a high concentration of + and – ions that replicate those commonly found in nature.  As these ions travel with the air stream, they attach to particles, pathogens and gases/odors. As the ions attach to airborne particles (including fine, sub-micron particles) they are then attracted to each other, making the particulate more easily filterable and increasing capture efficiency.  Ions also deactivate pathogens by robbing them of life-sustaining hydrogen.


Where can BSE Needlepoint Ionization units be used?

To put it simply, our units are effective in anywhere people are sharing the same air.  Due to this, there really is no limit to the applications our units can be used in.  This includes: Bars, Restaurants, Breweries, Retail Settings, Gyms, Physical & Massage Therapy, Dental & Medical Offices, Lobbies, Fire Stations, Conference Rooms, Apartment/Residential Spaces, Co-Working Settings, Classrooms/School Offices, Open Office Settings, Cannabis Grow Farms & much, much more.


A Leader In The Industry

Our units are designed and engineered to distribute ionization to the breathing space where pathogens are most dangerous.  Our units are all:

    • Made in the USA
    • Either in stock, or have a short 1-3 week lead time
    • Feature a minimum 1-year warranty
    • Third party tested technology which shows effective results in practical settings


Resourses:

DOWNLOAD SPEC SHEET HERE
