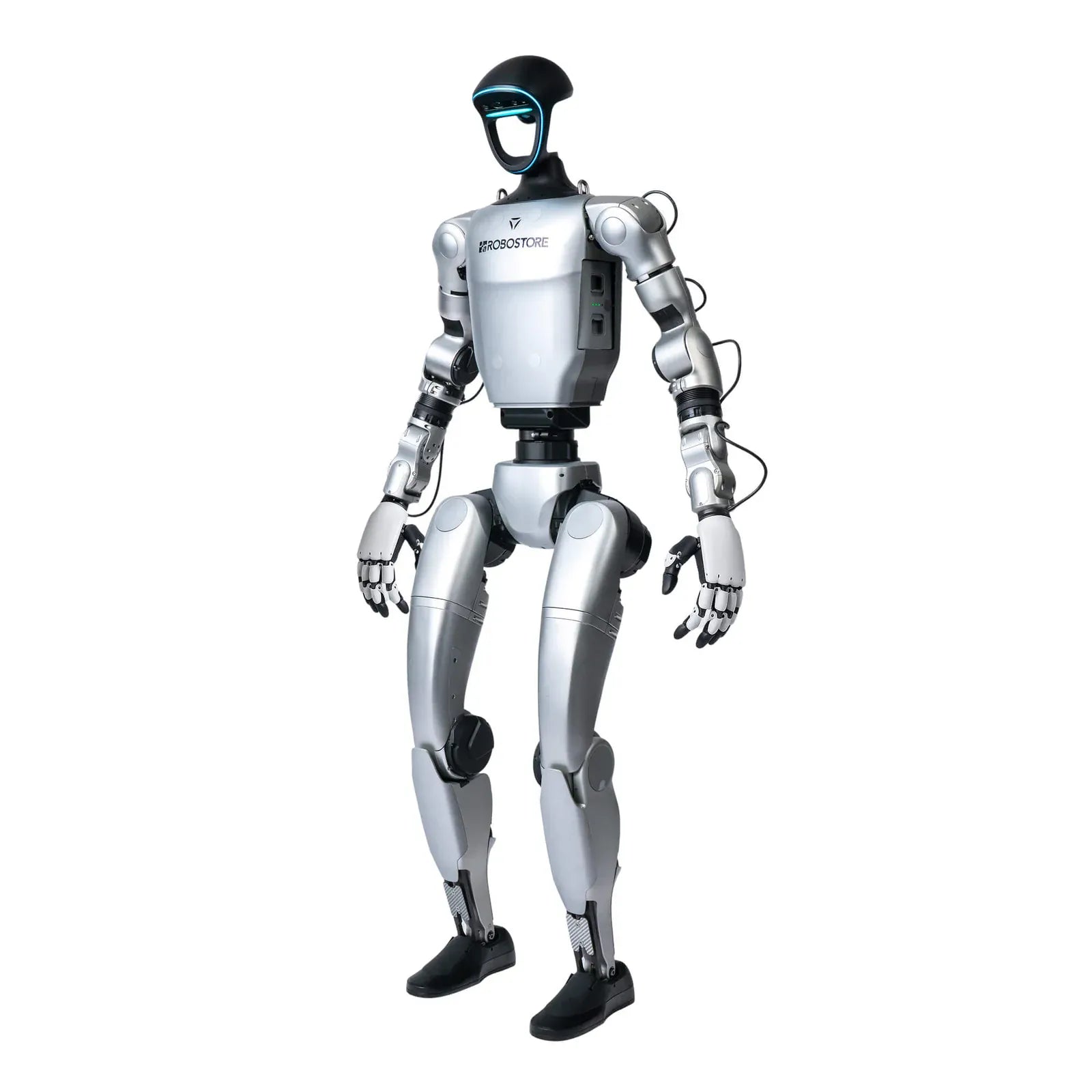

Unitree G1 (U5) EDU Ultimate C Robotic Humanoid

G1 (U5) EDU Ultimate C : Next-Level Manipulation with 5-Finger Dexterity

The G1 EDU Ultimate C is the most advanced humanoid platform in Unitree’s G1 EDU series—designed for researchers exploring high-level dexterity, human-robot interaction, and real-world task execution. It features Inspire 5 robotic hands (RH56DFQ) with five fully articulated fingers per hand, totaling 12 individual joints and 6 degrees of freedom per hand.

These hands also integrate tactile sensors, enabling fine grip control and responsive interaction. While the overall degree of freedom (DOF) count shifts to 40, the addition of fully actuated 5-finger hands offers greater expressive movement and object-handling capability than any prior model.

Paired with NVIDIA Jetson Orin 100 TOPS computing power, 3D LiDAR, and integrated depth cameras, the Ultimate C delivers an unmatched combination of precision control, AI-readiness, and mechanical expressiveness.

Key Features of the G1 (U5) EDU Ultimate C

• Inspire 5 Robotic Hands (RH56DFQ) - Five-finger hands with 12 total joints and 6 DOF per hand for high-precision manipulation

• Tactile Feedback Sensors - Integrated into each hand for responsive grip and touch-sensitive interaction
• Advanced Mobility & Control - 40 total degrees of freedom across body and hands for lifelike movement
• AI-Powered Performance - NVIDIA Jetson Orin 100 TOPS module for advanced AI processing and real-time control
• Integrated Perception System - 3D LiDAR and depth cameras for mapping, object recognition, and spatial awareness
• Modular, Durable Design - Customizable aluminum alloy frame optimized for robotics research and development

What Sets the G1 EDU Ultimate C Apart

• Full Five-Finger Dexterity - Most expressive and human-like manipulation in the G1 EDU lineup
• Tactile-Enabled Interaction - Adds touch feedback for enhanced control in precision tasks
• Future-Focused Platform - Designed for advanced research in embodiment, soft manipulation, and AI/robotics integration

For teams exploring the forefront of robotic dexterity and AI-enabled manipulation, the G1 EDU Ultimate C offers the most expressive and capable humanoid platform to date. See how it compares to other G1 EDU models in the chart below.

Key Features

G1 ULT. C Specifications

1- Computing

Main CPU:
8-core high-performance processor

High Computing Power Module:
NVIDIA Jetson Orin NX 16gb, 100 TOPS

Secondary Development Support:
Supported

2- Hardware

Chassis & Frame

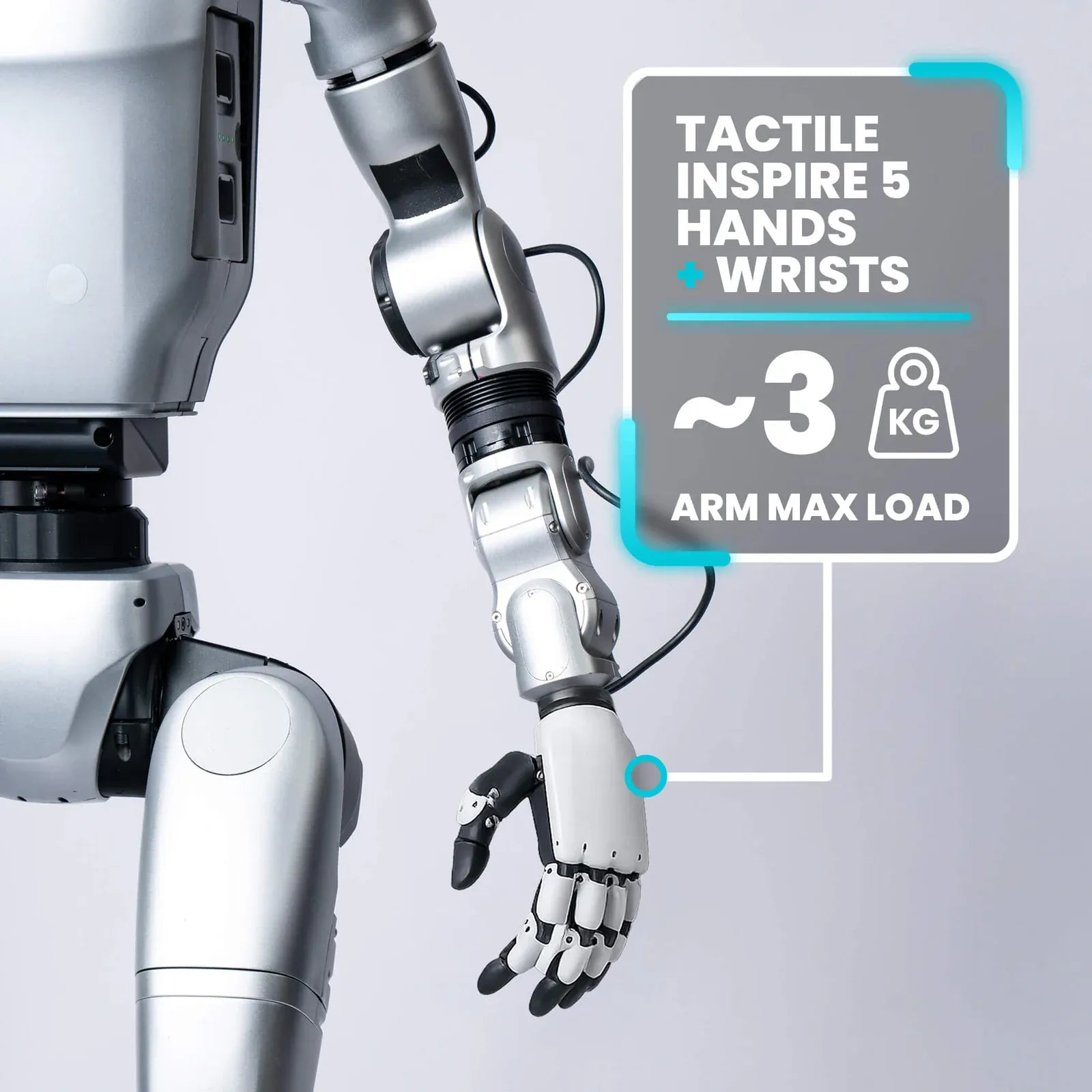

• Hand Type: Inspire 5-Finger Tactile Hands

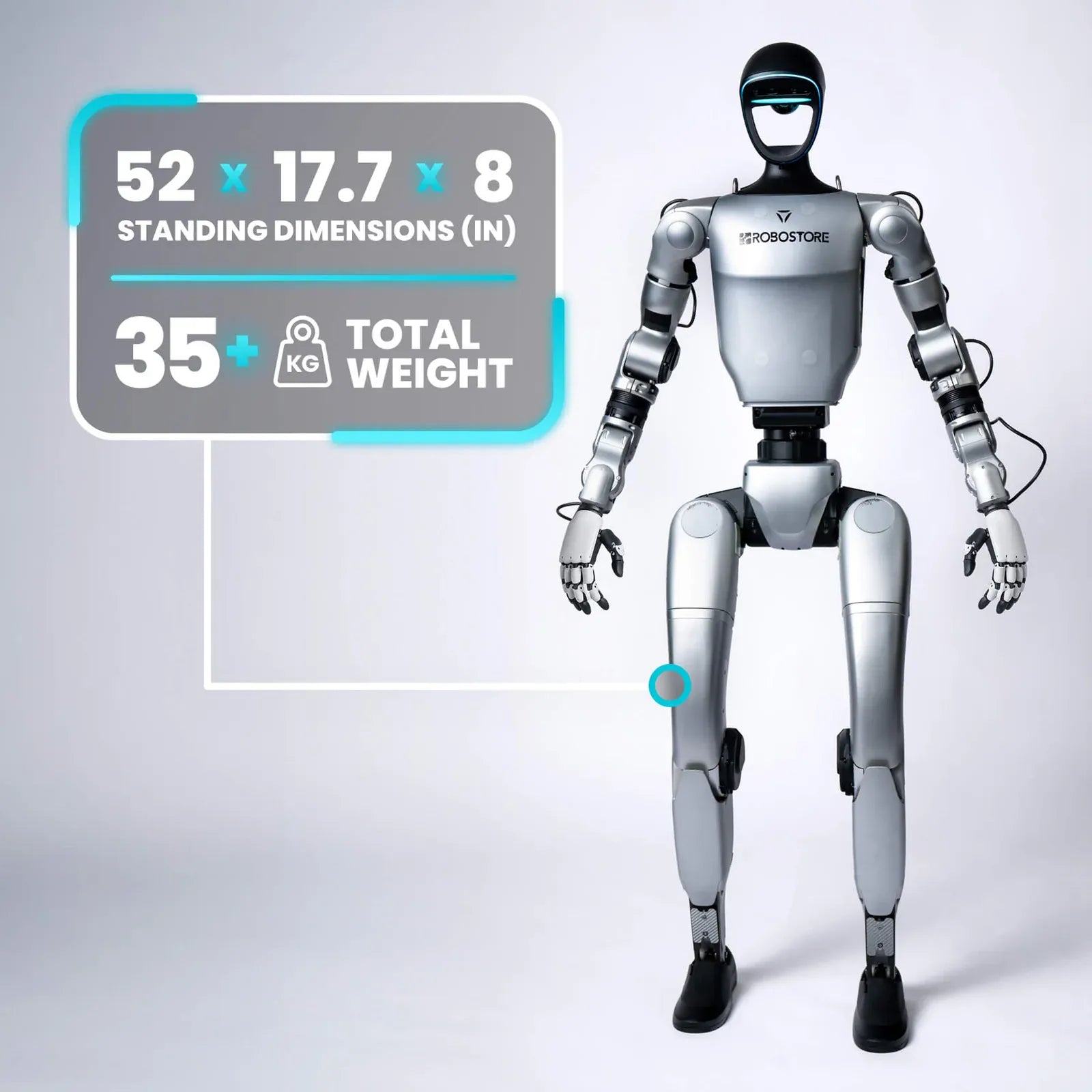

• Dimensions L x W x H (Standing): 1320 x 450 x 200 mm
• Dimensions (Crouching): 690 x 450 x 300 mm
• Weight (with Battery): 35+ kg
• Materials: Aluminum alloy and high-strength engineering plastic

Battery

• Battery Capacity: 9000 mAh (quick release)

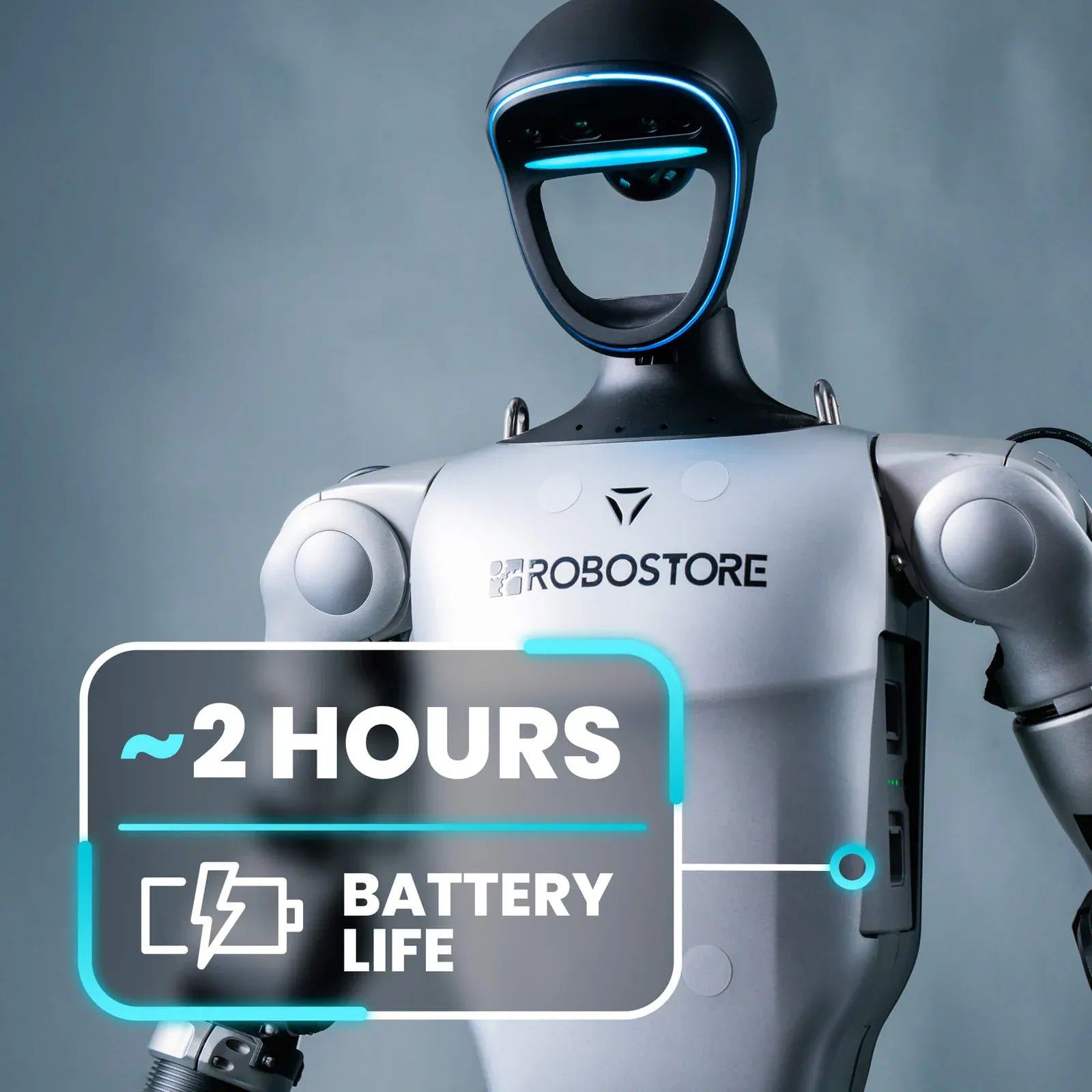

• Battery Life: ~2 hrs
• Charging Adapter: 54V / 5A

3- Performance

Top Speed:
2 m/s

Max joint Torque:
Knee: 120 N·m

Arm Max Load:
~3 kg

4- Mechanical

Degrees of Freedom (DOF):

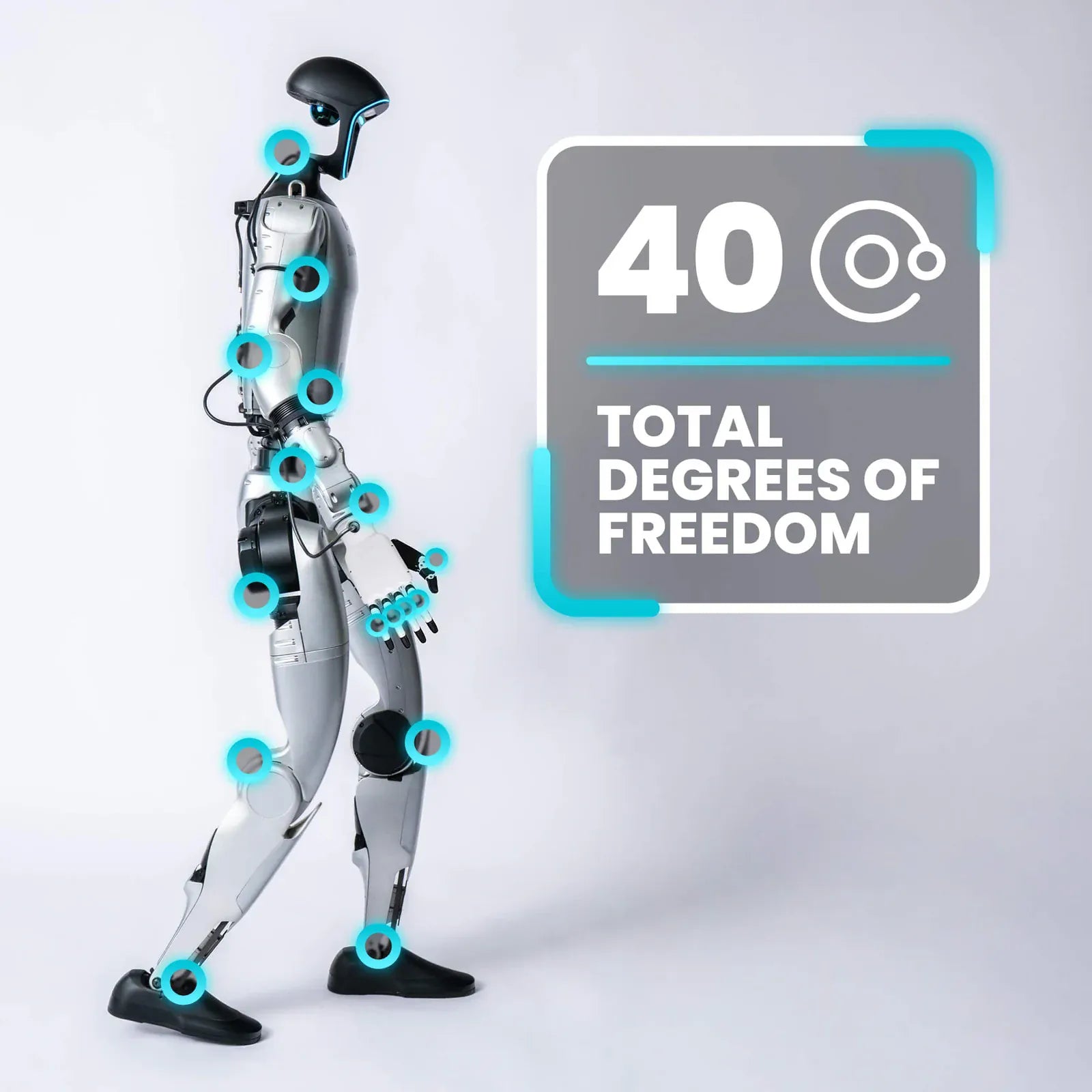

• Total DOF: 40
• Single Hand DOF: 6 (+12 Joints)
• Head DOF: 0
• Wrist DOF: 3
• Arm DOF: 5
• Leg DOF: 6
• Waist DOF: 3

Joint Motors & Build:

• Joint Output Bearing:
  Industrial-grade crossed roller bearings; high precision, high load capacity
• Joint Motor:
  Low inertia high-speed internal rotor PMSM; better response speed and heat dissipation
• Calf + Thigh Length: 0.6 m
• Arm Span: 0.05 m

Joint Movement Ranges:

• Waist: Z ±155°
• Knee: 0–165°
• Hip: P ±154°, R −30–170°, Y ±158°
• Wrist: P ±92.5°, Y ±92.5°

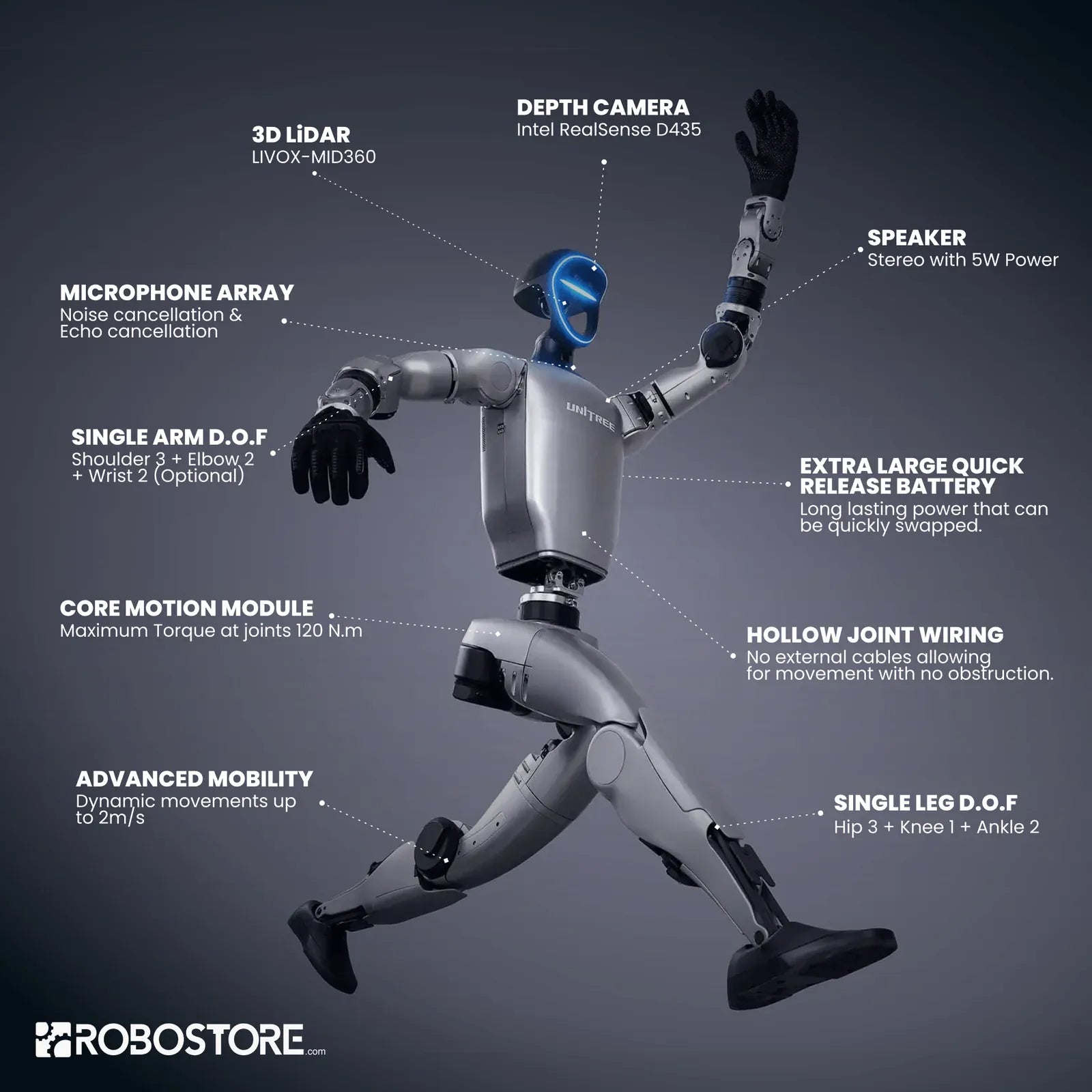

5- Cameras & Sensors

• 3D LiDAR: LIVOX MID-360
• Depth Camera: Intel RealSense D435i
• Tactile Sensors on Hands: Yes


6- Audio & Connectivity

• Wi-Fi: Wi-Fi 6
• Bluetooth: Bluetooth 5.2
• Remote Control Option: Yes
• Microphone Array: 4-mic array with noise and echo cancellation
• Built-in Speaker: 5W Stereo Speaker
• Voice Function: Yes


7- Features

• OTA Upgrade System: Yes
• Manual Controller: Yes
• Hollow Joint Wiring: Yes
• Joint Encoder: Dual encoder
• Cooling System: Local air cooling

8- Accessories Compatibility

• Dex3 Hands: Yes (Not Included)
• Dex3 Hands w/ Tactile Sensors: Yes (Not Included)
• Inspire 5-Finger Hands: Yes (Included)
• Dex5 Hands: Yes (Not Included)


Push the Limits of Human-Like Control

Key Features

Next-Level Manipulation with 5-Finger Dexterity

Featuring Inspire 5 robotic hands with five individually actuated fingers and integrated tactile sensors, the Ultimate C delivers the most lifelike manipulation in the G1 lineup. Built for advanced research in control, interaction, and AI-enabled robotics.

Pre-Programmed Humanoid Movements
